CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

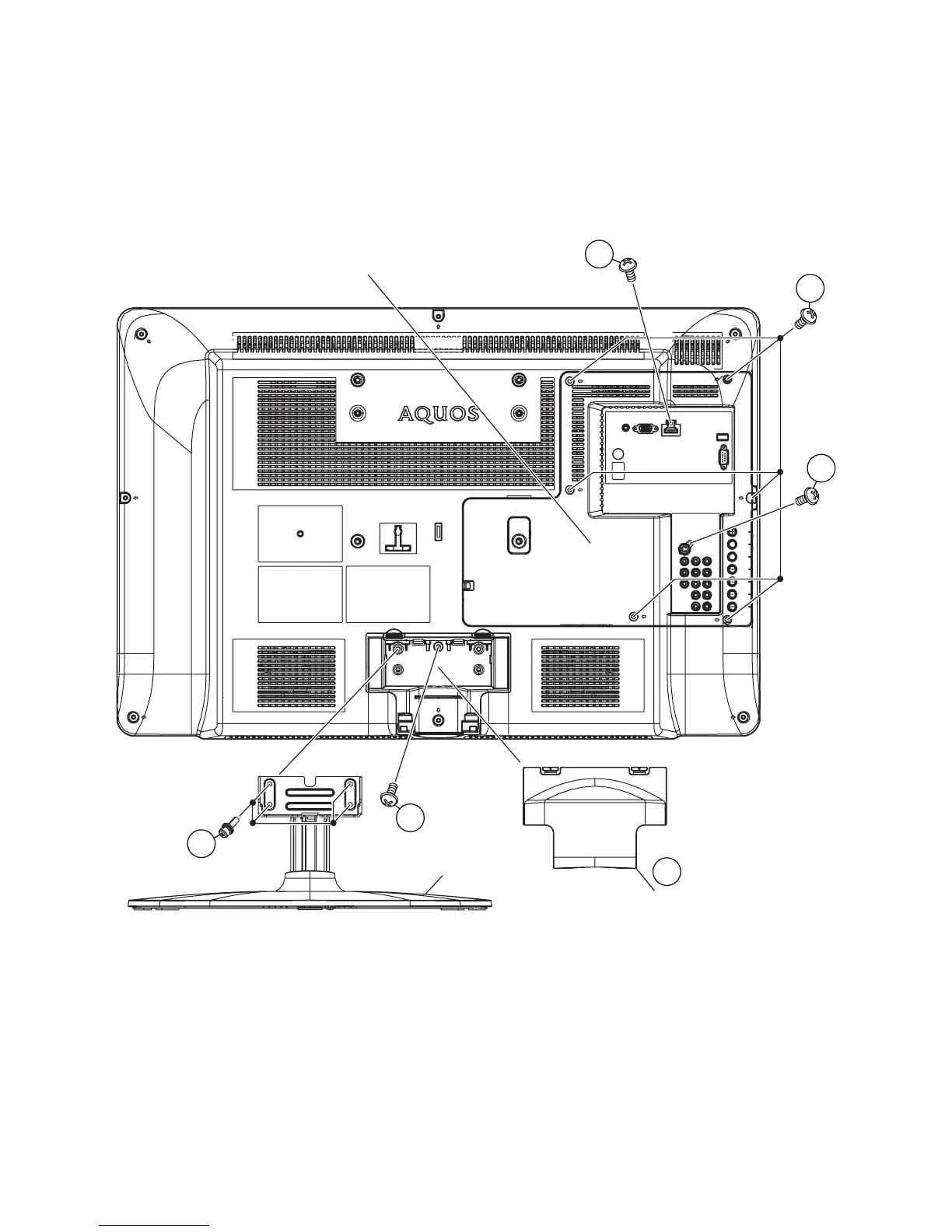

1. Removing of the Stand and Back Cover
1. Detach the Stand Hinge Cover [1].
2. Remove the 4 lock screws [2] and detach the Stand.
3. Remove the 1 lock screw [3], 1 lock screw [4], 1 lock screw [5], 6 lock screws [6] and detach the Back Cover.
Stand
Stand Hinge Cover
Back Cover
