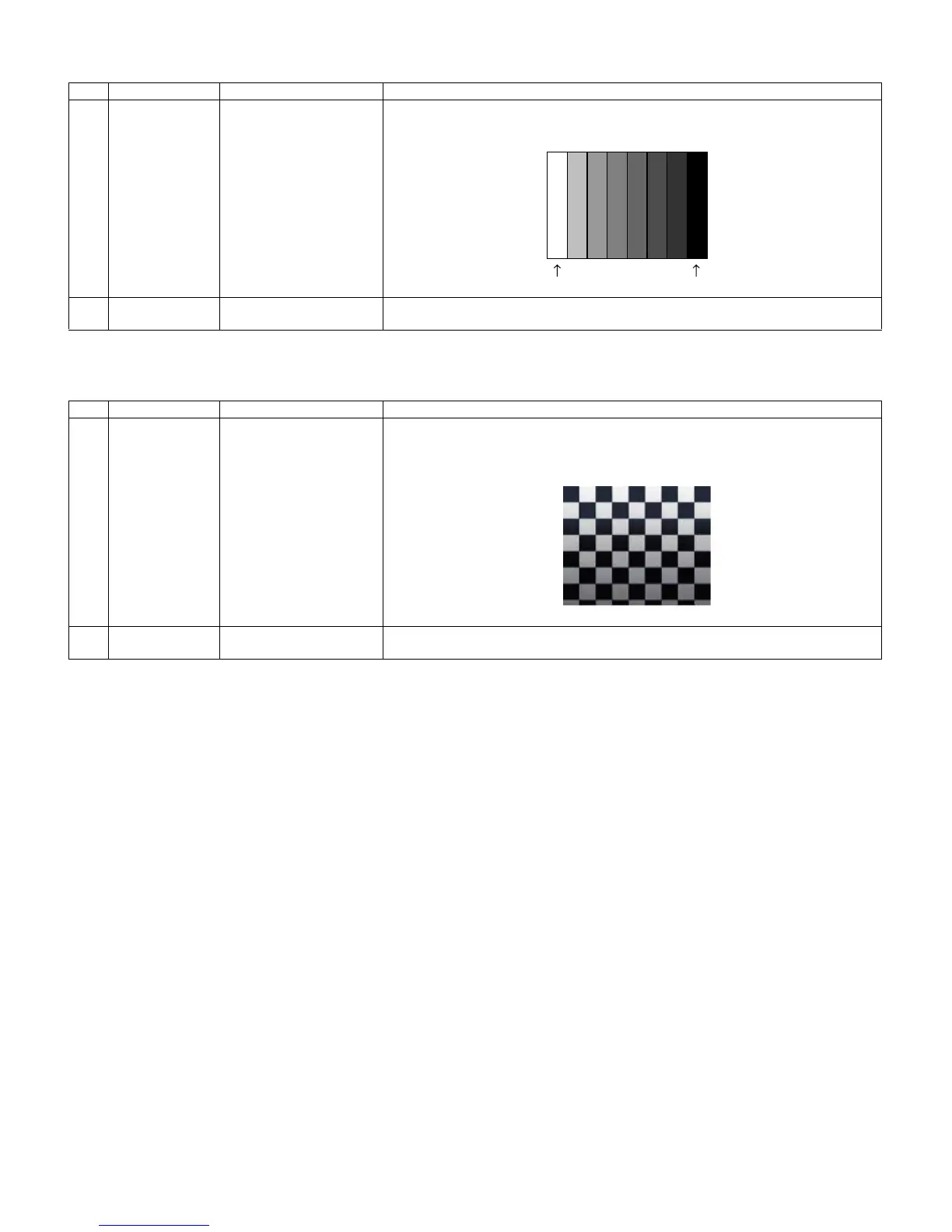

3.1.3 Component 33K 60Hz signal adjustment (COMP-HD)
3.1.4 PC (ANALOG RGB) signal adjustment (PC-RGB)
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
COMP 33K 60Hz (1080i)
100% Full-field Colour Bar
[Terminal]
INPUT 4 COMPONENT
Feed the COMPONENT 33K 60Hz (1080i) 100% Full-field Colour Bar signal (100%
colour saturation) to INPUT 4 COMPONENT terminal.
2 Auto adjustment
performance
Process Mode page 5
(COMP HD)
1) At the related page, move cursor to [COMP HD ADJ], press ENTER.
2) [OK] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
XGA 60Hz
100% Checkered Pattern
[Terminal]
PC INPUT
Feed the XGA 60Hz 100% Checkered pattern signal (100% colour saturation) to PC
INPUT.
*Please make sure SYNC is OFF.
2 Auto adjustment
performance
Process Mode page 6
(PC-RGB)
1) At the related page, move cursor to [RGB ADJ], press ENTER.
2) [OK] appears when finished.
100% white Black
