Sharp LC-32L400M - Main Unit Schematics

Sharp LC-32L400M
70 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
LC-32L400M
9 – 2

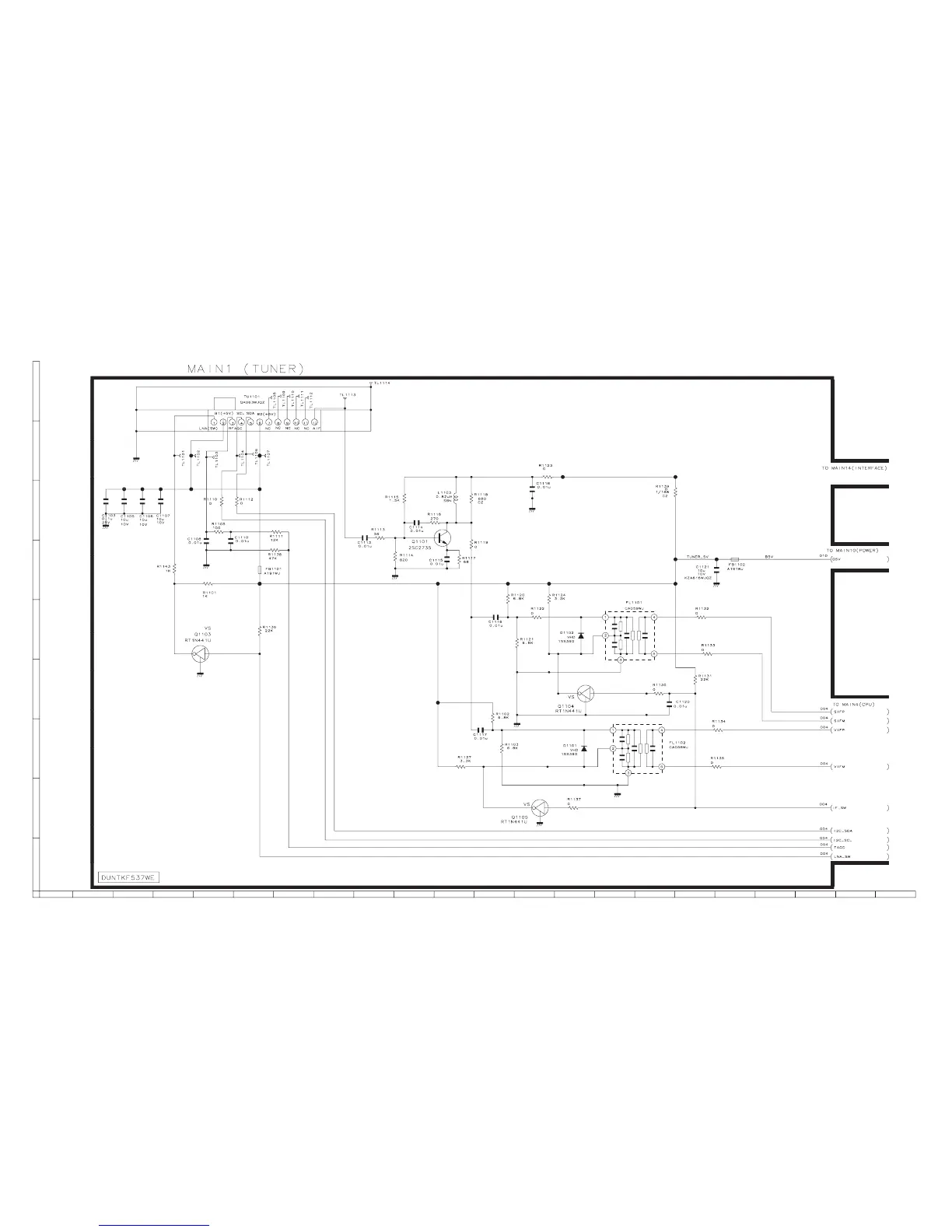

[2] MAIN Unit
•MAIN Unit-1/14
A
C
B
D
E
F
G
I
H
12345678910111213141516171819
20 21 22
