Sharp LC-32L400M Service Manual

LC-32L400M
4 – 5

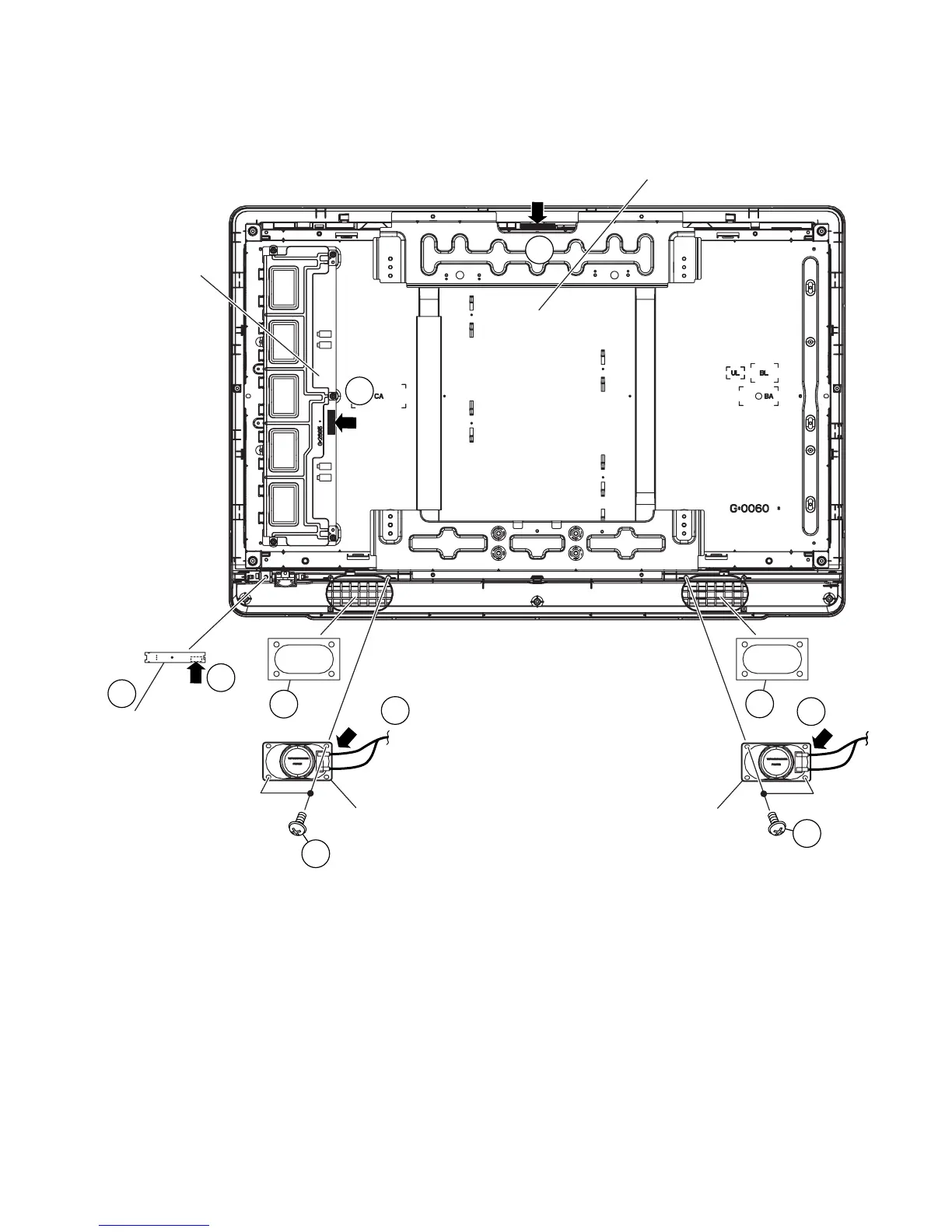

5. Removing of the Speaker and R/C, LED Unit
1. Disconnect the connectors from the INVERTER Unit and LCD Panel Module [1].
2. Disconnect SP connectors [2]. Remove the 4 lock screws [3] and detach the Speaker, remove the 2 Molt Plane [3a].
3. Detach the R/C, LED Unit [4] and disconnect RA connector [5].
Speaker
3
3
2
3a
4
5
2
1
1
Speaker
R/C, LED Unit
INVERTER Unit
LCD Panel Module
LVDS
PI
RA
SP
SP
3a
