LC-40LE530

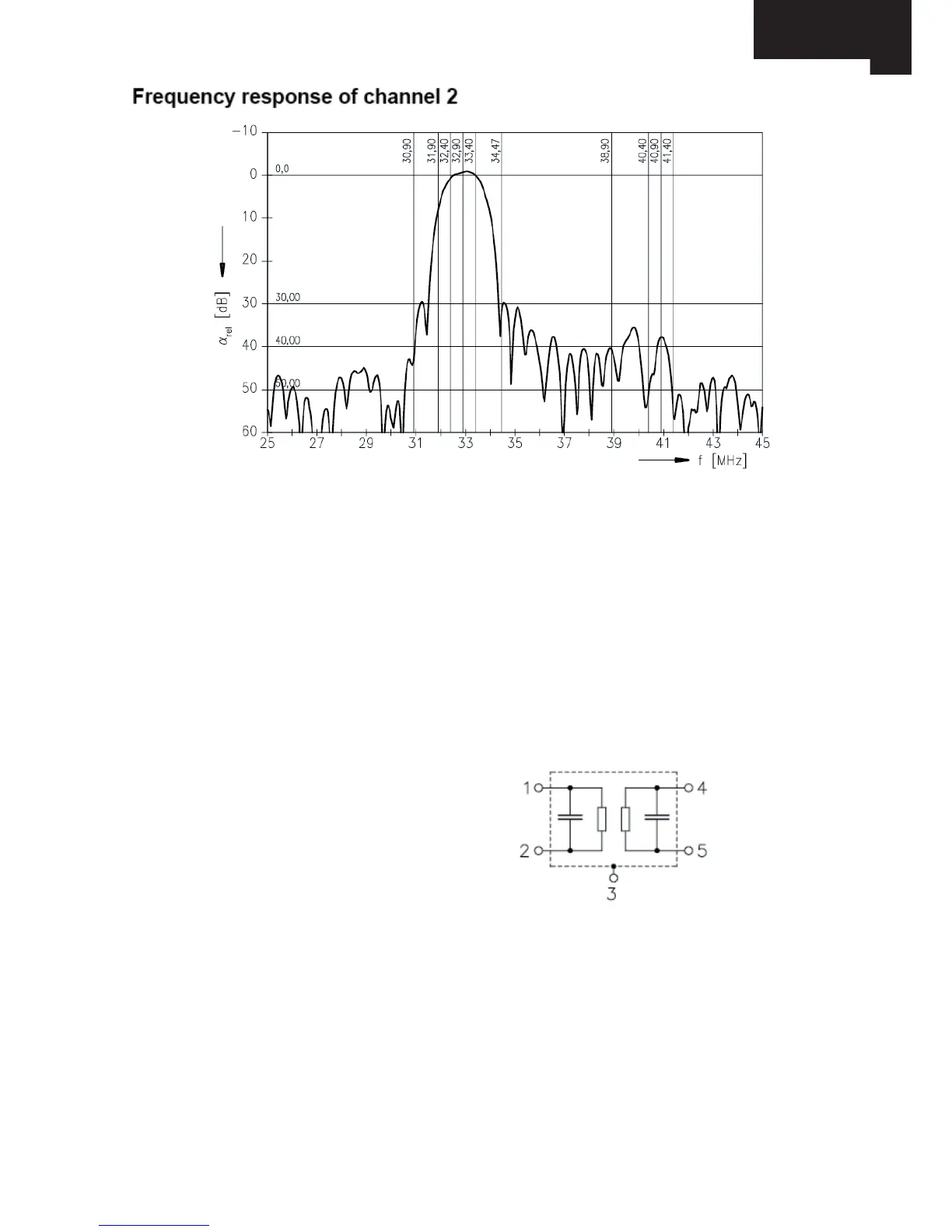

4. SAW FILTER – Video – Epcos K3958M(Z102)
4.1. Standart
x B/G
x D/K
x I
x L/L’
4.2. Features
x TV IF filter with Nyquist slopes at 33.90 MHz and 38.90 MHz
x Constant group delay
Pin configuration:
1 Input
2 Input - ground
3 Chip - carrier ground
4 Output
5 Output
