30
LC-32LE530
LC-40LE530
6. POWER STAGE

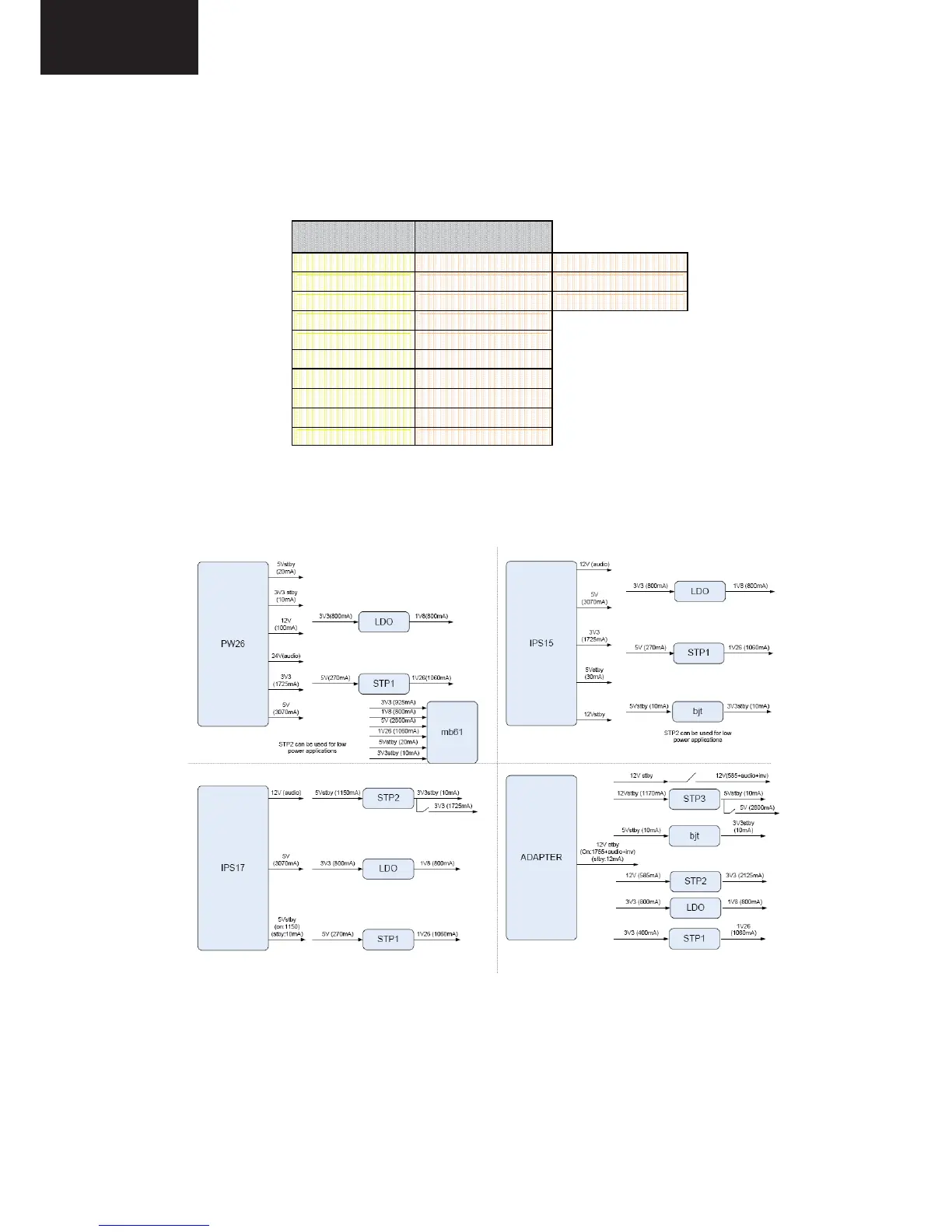

17MB61 General power management block diagram is shown below:
Voltage Total Current
3V3 925mA
3V3 stby 10mA
5V 2800mA 1500mA PANEL
5V stby 20mA
1V8 800mA
1V26 1060mA
12V 1500mA PANEL
24V 8250mA BACKLIGHT
Table 9: Power Consumption
1) These values calculated from max. ratings of existing panels. Meaning values will be lower than calculated values.
2) Total consumption value does not contain the CCFL consumption.
Power Domain
