59
LC-32LE530
LC-40LE530
13.3. Led Blinking Problem
Problem: LED blinking, no other operation

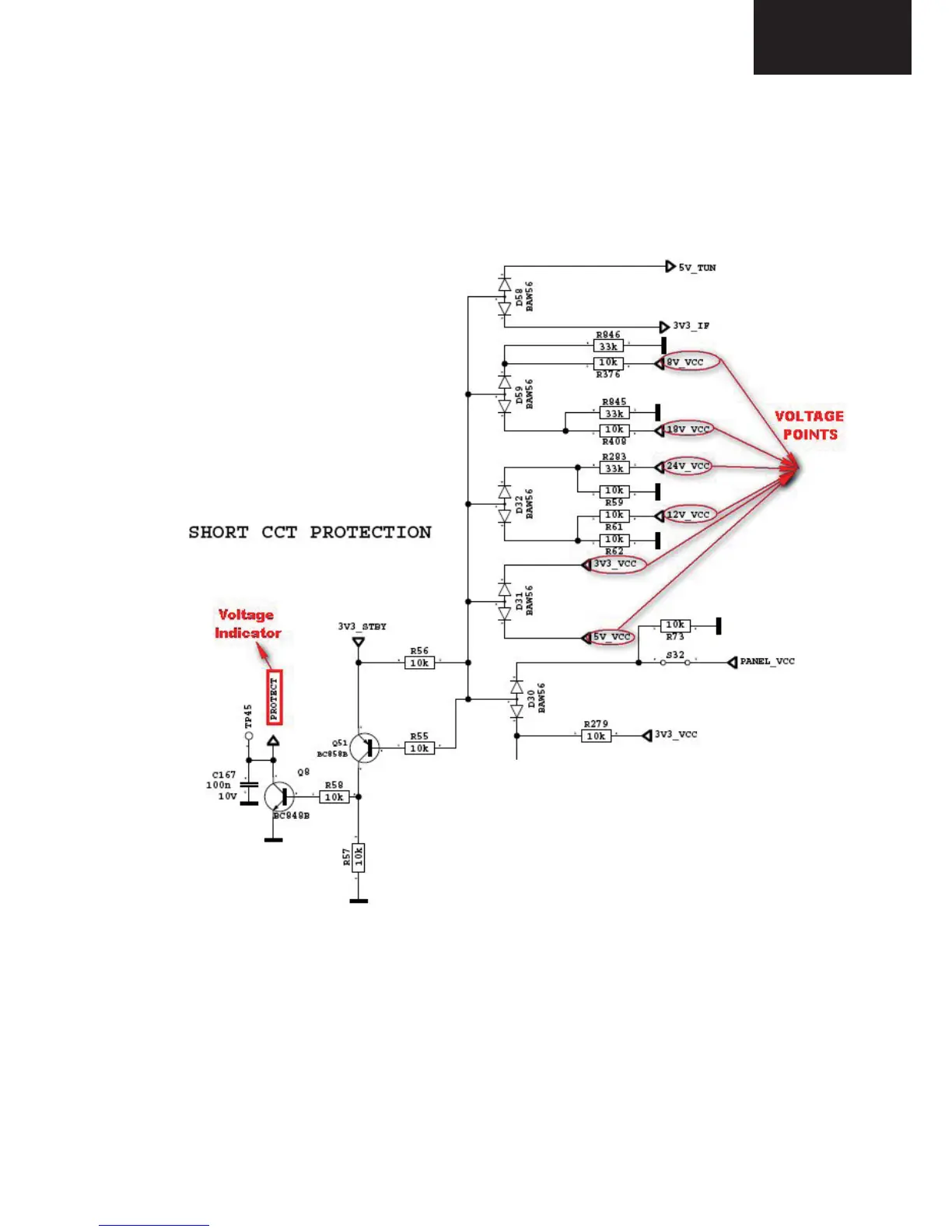

This problem indicates a short on Vcc voltages. Protect pin should be logic high while
normal operation. When there is a short circuit protect pin will be logic low. If you detect
logic low on protect pin, unplug the TV set and control voltage points with a multimeter to
find the shorted voltage to ground.
