Sharp LC-40SH340K Service Manual

11
LC-40SH340E
LC-40SH340K
+/;<=

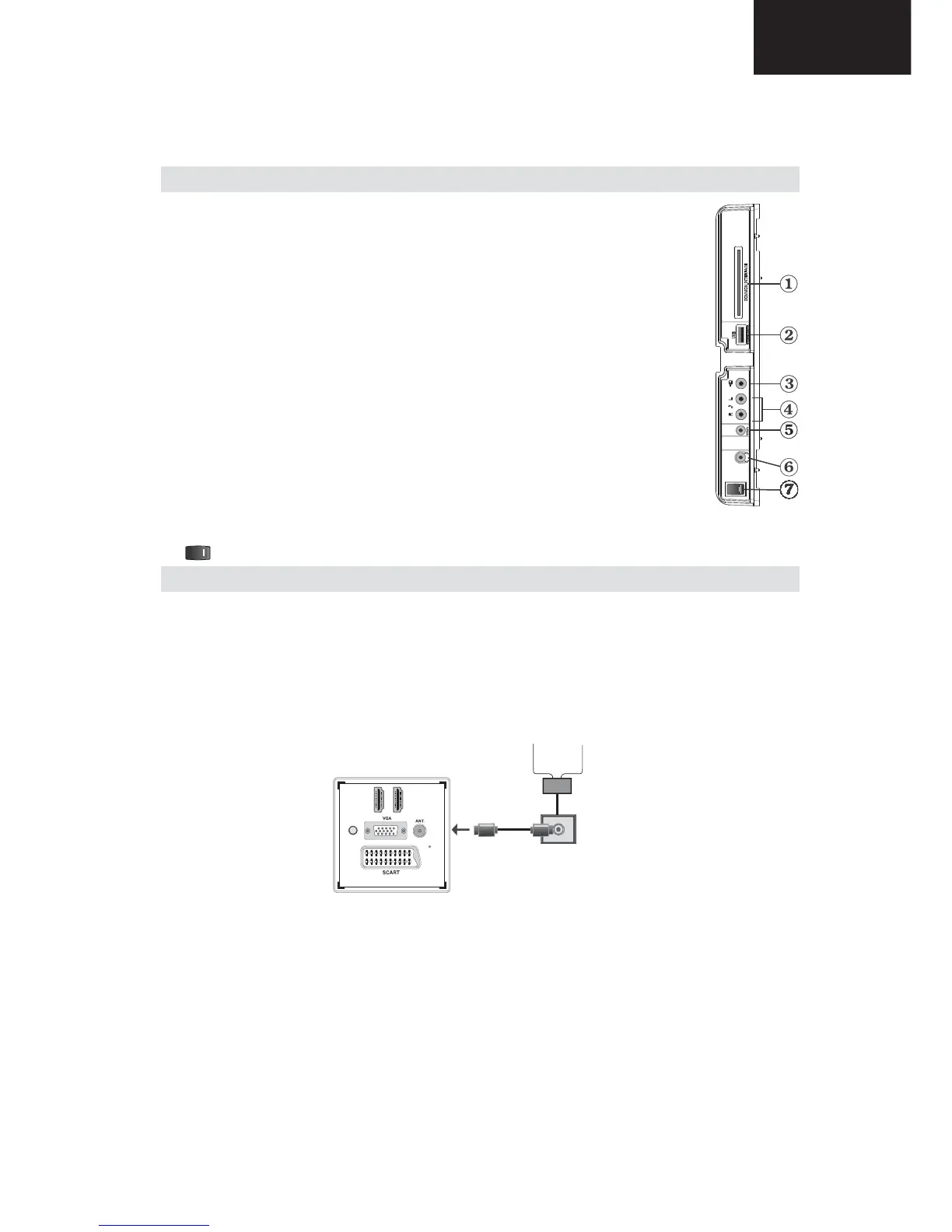

Viewing the Connections - Side Connectors
CI Slot1. is used for inserting a CI card. A CI card allows you to view all the channels that
you subscribe to. For more information, see “Conditional Access” section.
USB Inputs2. .
Note that programme recording feature is available via these USB inputs. You can
connect external hard disk drives to this input.
Video Input 3. is used for connecting video signals of external devices.Connect the video
cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.
Audio Inputs4. are used for connecting audio signals of external devices. Connect the audio
cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device.
Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect
your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.
Component Video Input (YPbPr)5. is used for connecting component video.
You can connect the component video and audio sockets with a device that has
component output. To do this, you must use the supplied component video connection
cable for enabling connection. First, plug single jack of the cable to the TV’s YPbPr
socket (side). Afterwards, insert your component cable’s (not supplied) connectors into
the plural part of the Component video connection cable. Colours of the connected
jacks should match.
Headphone6. jack is used for connecting an external headphone to the system. Connect
to the HEADPHONE jack to listen to the TV from headphones (optional).
7. , switch is used for turning the TV on or off.
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz.
After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the 
mains. Plug the power cable to the mains socket outlet.
Aerial Connection
Connect the aerial ,cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
HDMI
1
DM
HI
2
SPDIF
Coax.OUT
Aerial or Cable

Sharp LC-40SH340K Specifications

General

Teletext function	Yes
DVI port	No
HDMI version	1.3
SCART ports quantity	1
Product color	Black
Mercury content	60 mg
Panel mounting interface	400 x 400 mm
Display diagonal	40 \
Display technology	LCD
Display diagonal (metric)	102 cm
Annual energy consumption	177 kWh
Audio decoders	Dolby Digital, Dolby Virtual Speaker
RMS rated power	12 W
Power consumption (standby)	0.5 W
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-T

Weight and Dimensions

Depth (with stand)	323 mm
Width (with stand)	970 mm
Height (with stand)	657 mm
Weight (with stand)	18300 g
Depth (without stand)	91 mm
Height (without stand)	613 mm
