Sharp LC-40SH340K Service Manual

54
LC-40SH340E
LC-40SH340K
x Supports Suspend Mode and Remote Wakeup via Link-up, Magic packet, MS wakeup frame
and external pin
x Optional PHY power down during Suspend Mode
Versatile External Media Interface
x Optional MII interface in MAC mode allows AX88172A to work with external 100BASE-FX
Ethernet PHY or HomePNA PHY
x Optional Reverse-MII or Reverse-RMII interface in PHY mode allows AX88172A to work with
external HomePlug PHY or glueless MAC-to-MAC connections
x Optional Reverse-MII interface in Dual-PHY mode allows AX88172A to act as an Ethernet
PHY or USB 2.0 PHY for external MAC device that needs Ethernet and USB in system
application
x Supports 256/512 bytes (93c56/93c66) of serial EEPROM (for storing USB Descriptors)
x Supports automatic loading of Ethernet ID, USB Descriptors and Adapter Configuration
from EEPROM after power-on initialization
x Provides optional serial interface, I2C, SPI and UART
x Integrates on-chip voltage regulator and only requires a single 3.3V power supply
x 12MHz and 25Mhz clock input from either crystal or oscillator source
x Integrates on-chip power-on reset circuit

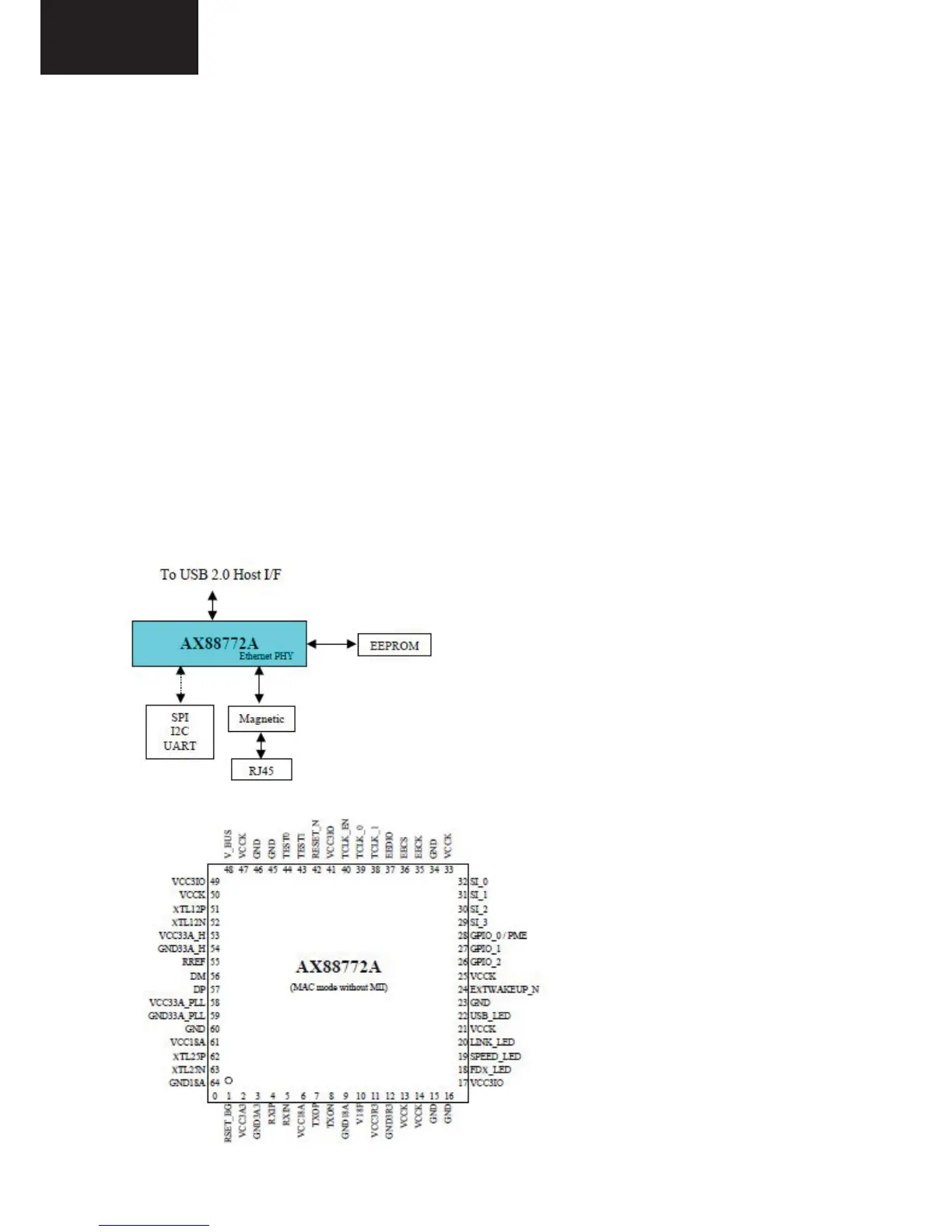

16.3. Block Diagram
16.4. Pinning
15.4
15.3

Sharp LC-40SH340K Specifications

General

Teletext function	Yes
DVI port	No
HDMI version	1.3
SCART ports quantity	1
Product color	Black
Mercury content	60 mg
Panel mounting interface	400 x 400 mm
Display diagonal	40 \
Display technology	LCD
Display diagonal (metric)	102 cm
Annual energy consumption	177 kWh
Audio decoders	Dolby Digital, Dolby Virtual Speaker
RMS rated power	12 W
Power consumption (standby)	0.5 W
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-T

Weight and Dimensions

Depth (with stand)	323 mm
Width (with stand)	970 mm
Height (with stand)	657 mm
Weight (with stand)	18300 g
Depth (without stand)	91 mm
Height (without stand)	613 mm
