Sharp LC-40SH340K

48
LC-40SH340E
LC-40SH340K
13. SCALER AND LVDS SOCKETS

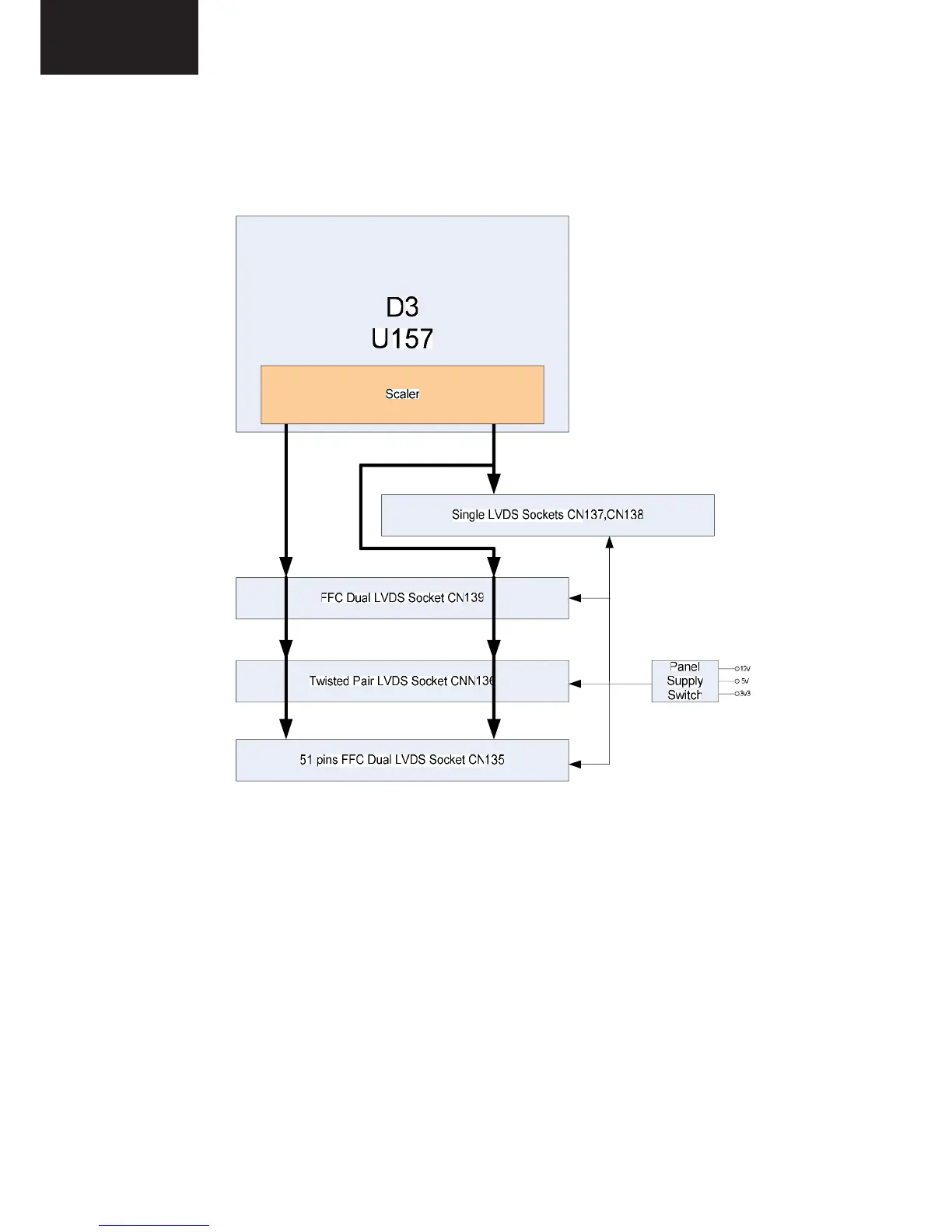

13.1. LVDS sockets Block Diagram
13.2. Panel Supply Switch Circuit
This switch is used to open and close panel supply of TCON. It is controlled by port of main 
.
Also with this circuit panel sequence could be adjusted correctly. 3 panel supplies are connected to this
circuit. All of them are optional according to panels.
12.1
12.
12.2
