LC-40SH340E
LC-40SH340K
26.7. No Sound Problem
Problem: No audio at main TV speaker outputs.

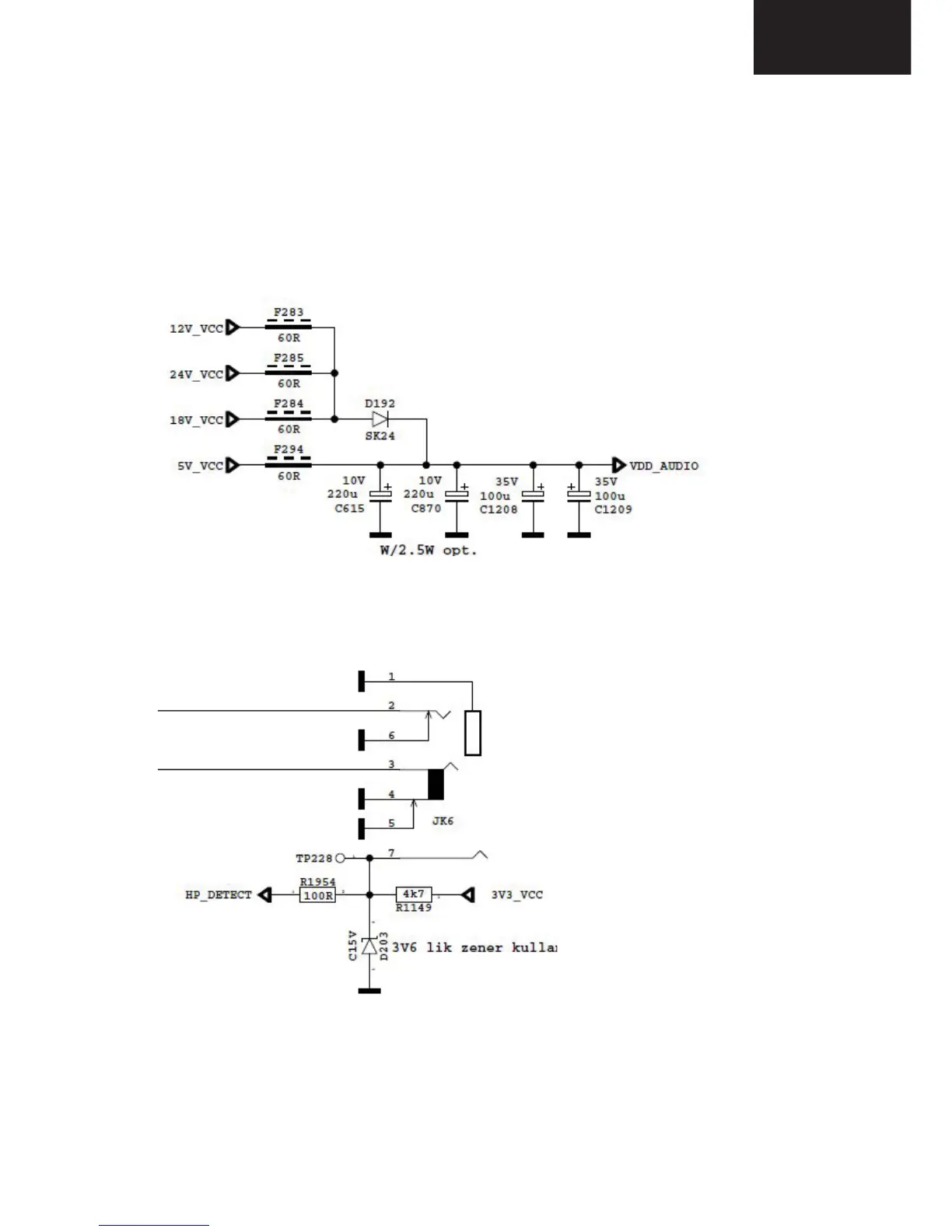

Check supply voltages of VDD_AUDIO, 5V_VCC and 3V3_VCC with a voltage-meter.
There may be a problem in headphone connector or headphone detect circuit (when headphone is
connected, speakers are automatically muted). Measure voltage at HP_DETECT pin, it should be 3.3v.
26.8. No Sound Problem at Headphone
Problem: No audio at headphone output.
Check HP detect pin, when headphone is. Check 5V_VCC and 3V3_VCC with a voltage-meter.
26.9. Standby On/Off Problem
Problem: Device cannot boot, TV hangs in standby mode.
There may be a problem about power supply. Check 12V_VCC, 5V_VCC and 3V3_VCC with a voltage-
meter. Also there may be a problem about SW. Try to update TV with latest SW. Additionally it is good to
check SW printouts via hyper-terminal (or Teraterm). These printouts may give a clue about the problem.
