CHAPTER 2. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-52XS1E/RU)

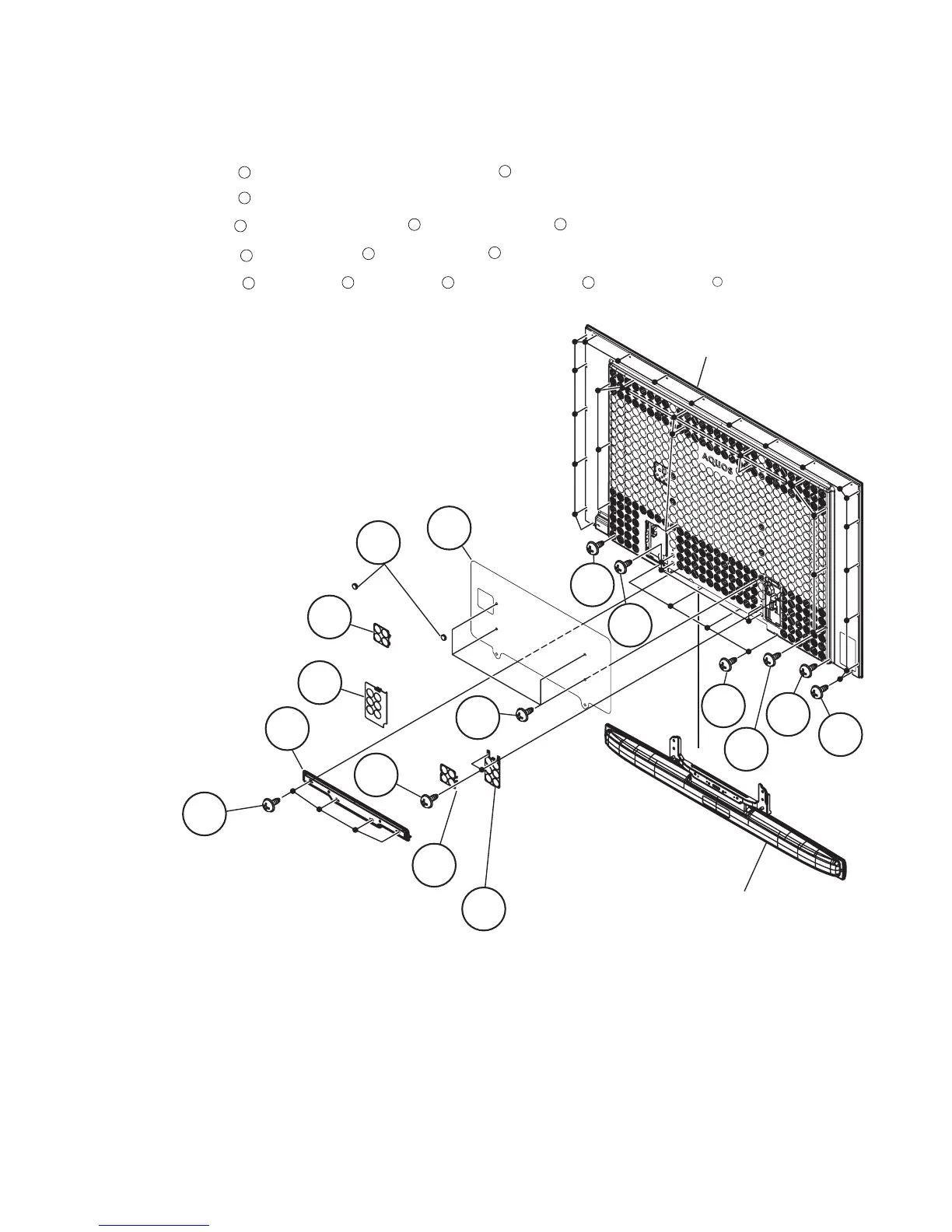

1. Removing of Speaker Box Ass'y and Cabinet B Ass'y
1. Remove the 4 lock screws and detach the Speaker Angle Cover Ass'y .
2. Remove the 4 lock screws and detach the Speaker Box Ass'y
3. Detach the AC Cover Top . Remove the 2 lock screws and AC Cover Bottom .
4. Detach the Terminal Cover , Bus-Cone Cover and 2 VESA Caps .
5. Remove the 13 lock screws , 6 lock screws , 4 lock screws , Reinforcement panel , and 20 lock screws . Detach the Cabinet B Ass'y.
1
2
3
4
5
6
7
8
9
10
11 12 13
14
5
12
1
2
7
8
13
9
4
6
14
10
11
11
11
3
Speaker Box Ass'y
Speaker Angle
Cover Ass'y
AC Cover Top
VESA Cap
Cabinet B Ass'y
Bus-Cone Cover
Terminal Cover
AC Cover Bottom
