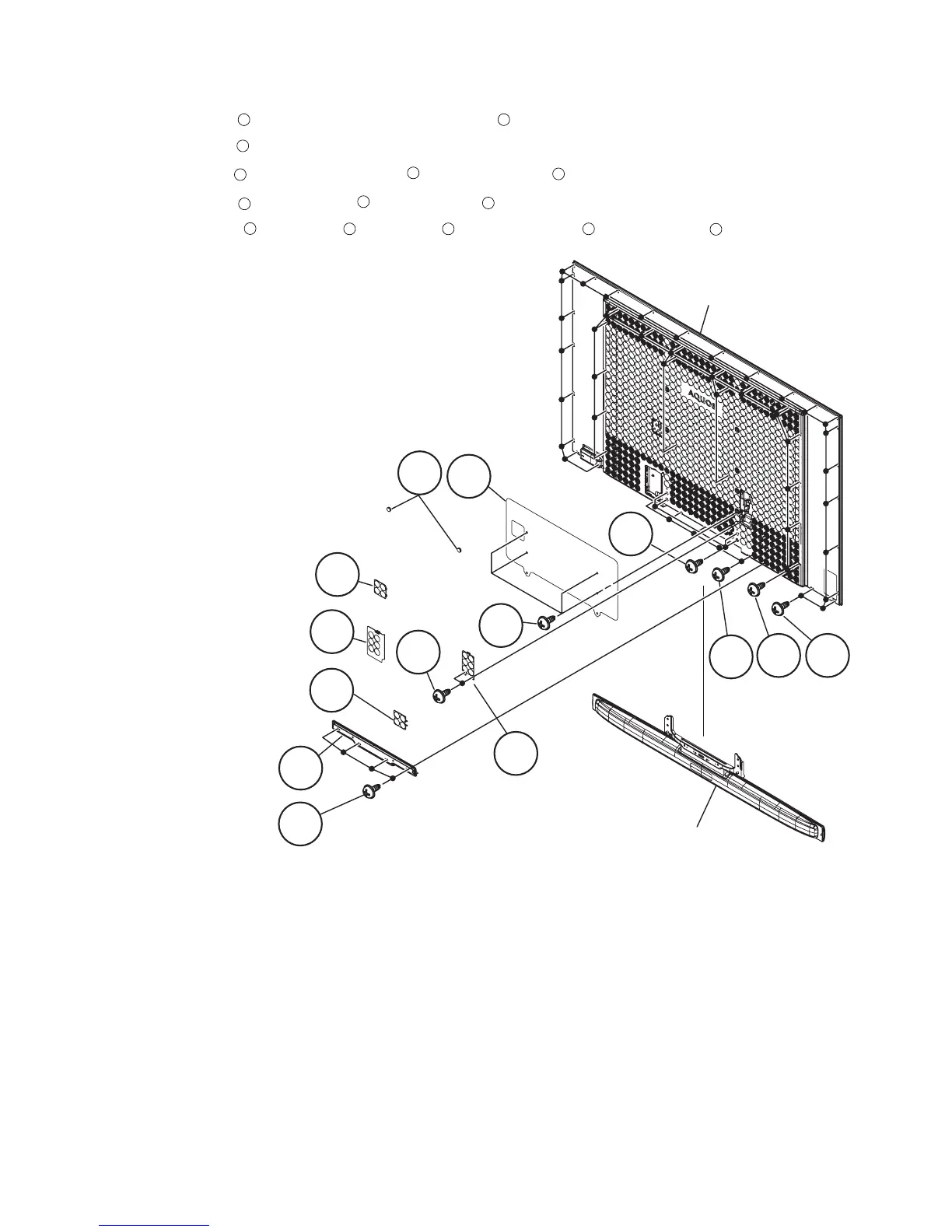

[2] REMOVING OF MAJOR PARTS (LC-65XS1E/RU)
1. Removing of Speaker Box Ass'y and Cabinet B Ass'y
1. Remove the 4 lock screws and detach the Speaker Angle Cover Ass'y .
2. Remove the 4 lock screws and detach the Speaker Box Ass'y
3. Detach the AC Cover Top . Remove the 2 lock screws and AC Cover Bottom .
4. Detach the Terminal Cover , Bus-Cone Cover and 2 VESA Caps .
5. Remove the 18 lock screws , 5 lock screws , 4 lock screws , Reinforcement panel and 24 lock screws . Detach the Cabinet B Ass'y.
