SiL9387 Por Processor
Schematic Diagrams
• The SiI9387 is the second generation HDMI port
processor with HDMI Ethernet and Audio-return
channel (HEAC) support on one input port.
• Five HDMI input ports and single output port.
• The SiI9387 port processor support the pass-
through of 3D video modes described in the HDMI 1.4
specification.
• The port processor contains 512 bytes of NVRAM
that stores common EDID data .
• The HDCP Register block controls the necessary
logic to decrypt the incoming audio and video data.

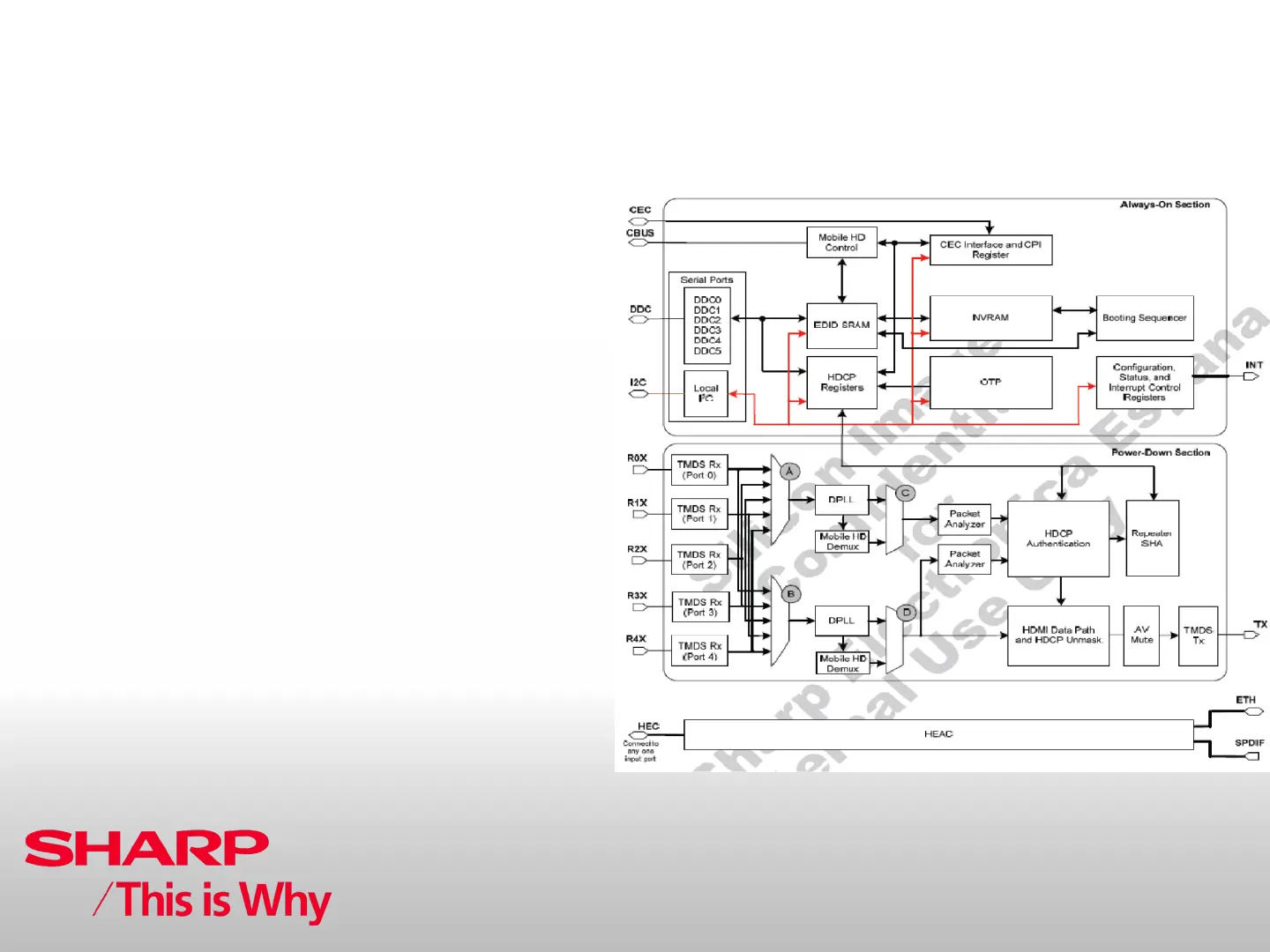

InstaPort technology with five HDMI inputs and single port output.
