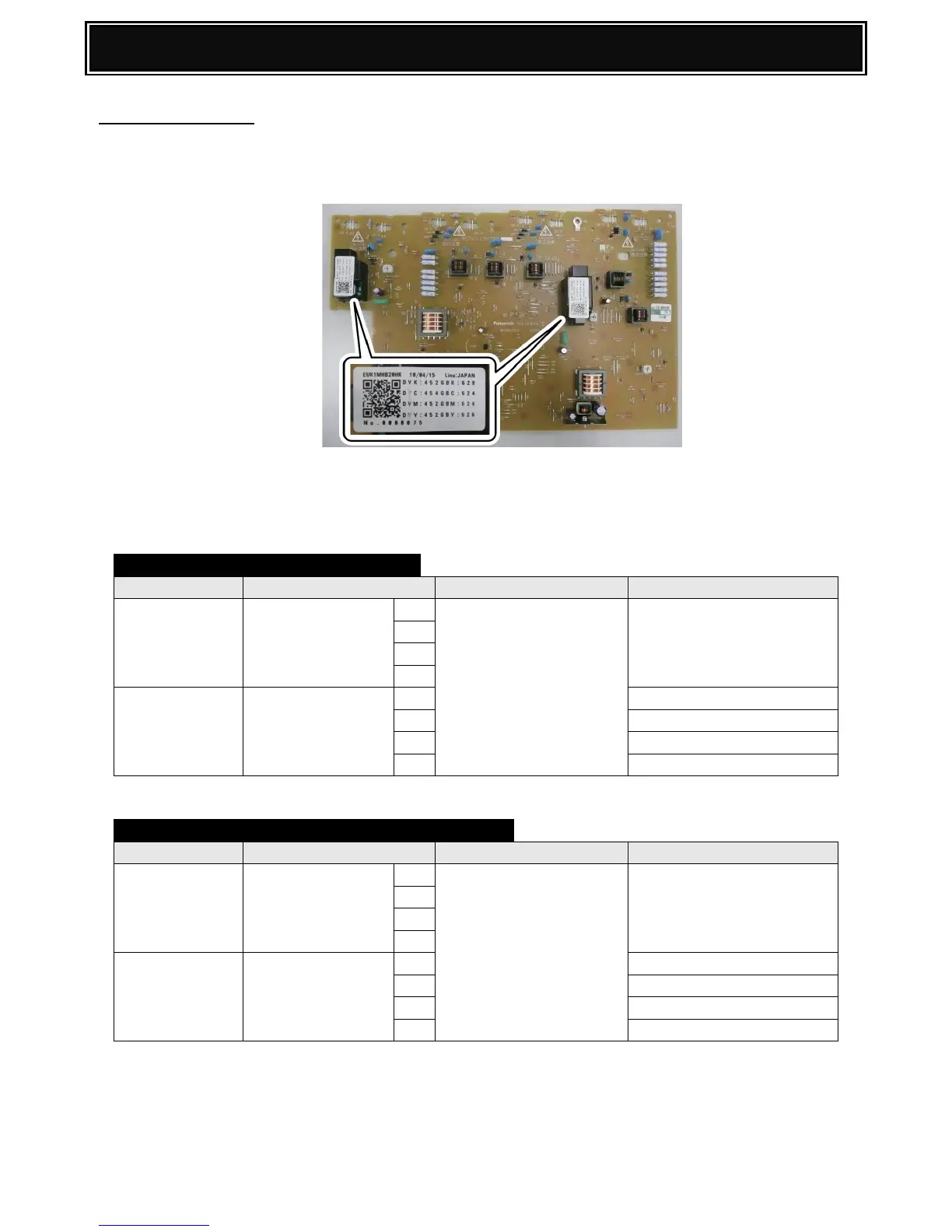

High Voltage Settings
Note: The adjustment value of each colour mode is specified on the information label attached to the
MC/DV High Voltage Power PWB.
Using Simulation 8-01 (DV Bias Setting) & Sim 8-02 (MC Grid Bias Setting), enter the values
specified, especially after replacing the PCU PWB, EEPROM or following U2 trouble.
DV BIAS VOLTAGE – SIMULATION 08-01
Item
Mode
Adjustment Range
Actual Voltage
Middle Speed
DV Bias Voltage
K
0-600
-450 +/- 5V
C
M
Y
Low Speed
DV Bias Voltage
K
-450 +/- 5V
C
-430 +/- 5V
M
-430 +/- 5V
Y
-430 +/- 5V
MAIN CHARGE GRID VOLTAGE – SIMULATION 08-02
Item
Mode
Adjustment Range
Actual Voltage
Middle Speed
MC Grid Voltage
K
150-850
-615V +/- 5V
C
M
Y
Low Speed
MC Grid Voltage
K
-610V +/- 5V
C
-590V +/- 5V
M
-590V +/- 5V
Y
-590V +/- 5V

Sharp MX-2010U Specifications

General

Print Technology	Laser
Print Speed	20 ppm
Print Resolution	600 x 600 dpi
Scan Type	Color Scanner
Functions	Print, Copy, Scan, Fax
Copy Speed	20 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 kbps
Duplex Printing	Yes
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Hard Drive	80 GB
Weight	73 kg
