Sharp MX-2600N User Manual

2-36
COPIER
Contents

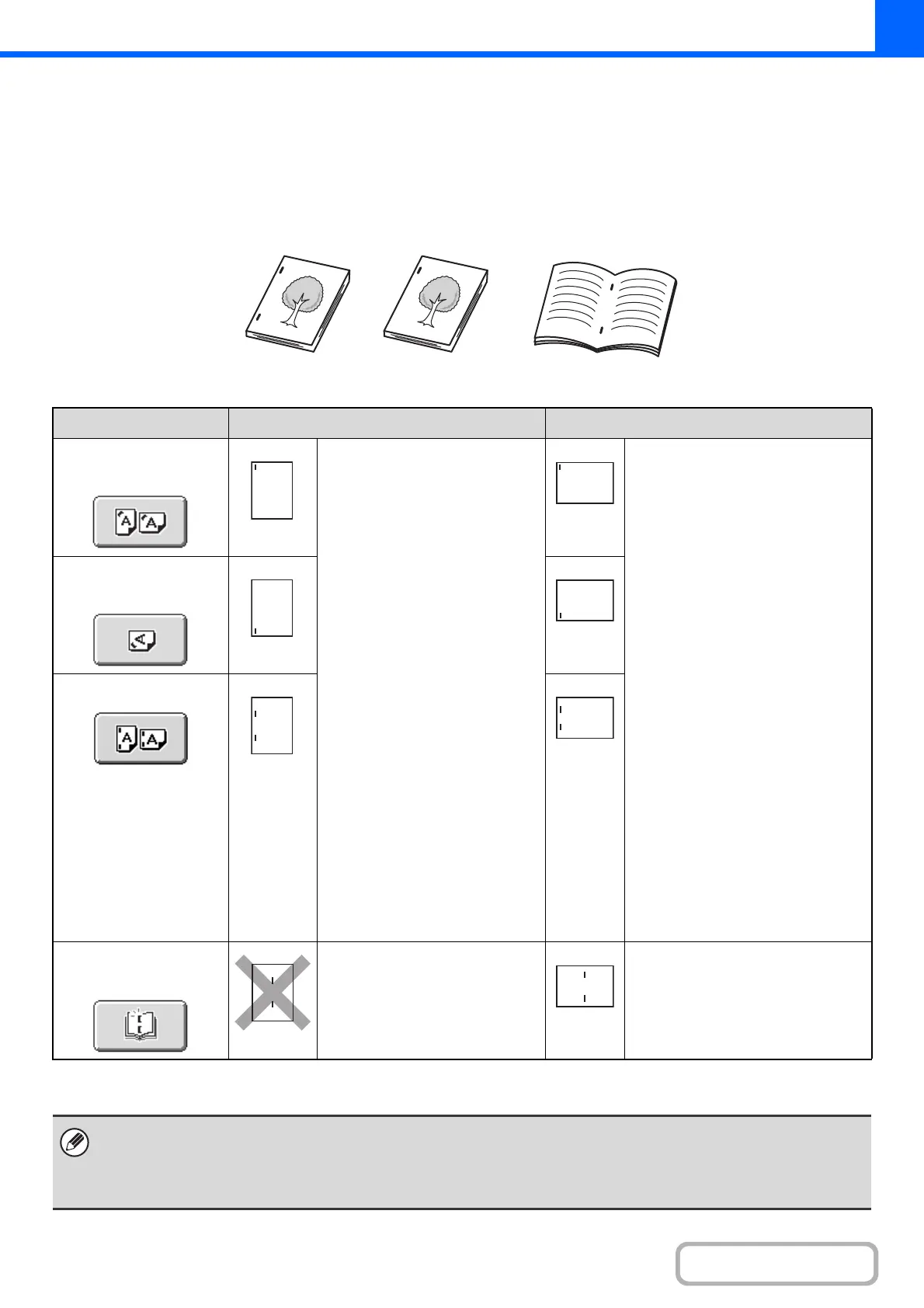

Staple sort function / Saddle stitch function
The staple sort function sorts output into sets, staples each set, and delivers the sets to the tray.
The saddle stitch function staples each set in 2 places at the centerline and folds the stapled set.
The relations between the stapling positions, paper orientation, permitted paper sizes for stapling, and number of sheets
that can be stapled are shown below.
For original placement orientations, see "Original placement orientation (for the staple sort and punch functions)" (page
2-38).
* Two sheets (one sheet when pamphlet stapling is performed) of paper up to 68 lbs. (256 g/m
2
) can be stapled as covers. When this
is done, the number of sheets that can be used is two less (one less for saddle stitch) than the stated maximum.
Stapling positions Vertically-oriented paper Horizontally-oriented paper
1 staple at top left
corner
Applicable paper sizes
8-1/2" x 11", A4, B5, 16K
Number of sheets that can be
stapled:
• Saddle stitch finisher
Max. 50 sheets*
• Finisher
Max. 50 sheets*
• Saddle stitch finisher
Applicable paper sizes
11" x 17", 8-1/2" x 14",
8-1/2" x 13-1/2", 8-1/2" x 13-2/5",
8-1/2" x 13", 8-1/2" x 11"R, A3, B4,
A4R, B5R, 8K, 16KR
Number of sheets that can be
stapled
11" x 17", 8-1/2" x 14",
8-1/2" x 13-1/2", 8-1/2" x 13-2/5",
8-1/2" x 13", A3, B4, 8K:
Max. 25 sheets*
8-1/2" x 11"R, A4R, B5R, 16KR:
Max. 50 sheets*
• Finisher
Applicable paper sizes
11" x 17", 8-1/2" x 14",
8-1/2" x 13-1/2", 8-1/2" x 13-2/5",
8-1/2" x 13", 8-1/2" x 11"R, A3, B4,
A4R, 8K, 16KR
Number of sheets that can be
stapled
11" x 17", 8-1/2" x 14",
8-1/2" x 13-1/2", 8-1/2" x 13-2/5",
8-1/2" x 13", A3, B4, 8K:
Max. 30 sheets*
8-1/2" x 11"R, A4R, 16KR:
Max. 50 sheets*
1 staple at bottom left
corner
2 staples at left edge
Saddle stitch (only with
saddle stitch finisher)
Saddle stitch cannot be used when
the paper is oriented vertically
Applicable paper sizes
11" x 17", 8-1/2" x 14", 8-1/2" x 11"R,
A3, B4, A4R, 8K, 16KR
Number of sheets that can be
stapled: Max. 15 sheets*
• The number of sheets that can be stapled at once includes any covers and/or inserts that are inserted.
• When Mixed Size Original in the special modes is used with the "Same Width" setting, the maximum number of sheets that
can be stapled is 25 for a saddle stitch finisher or 30 for a finisher regardless of the paper size.
• The saddle stitch function can only be used when a saddle stitch finisher is installed.
4
5
Saddle stitchStaple sort

Sharp MX-2600N Specifications

Power

power requirements	230 ~240V AC, 50/60 Hz
power consumption	1.84 kW
warm-up time	Less than 60 sec.

System Memory

copier memory	Standard 1, 024MB, max. 2, 048MB
printer memory	Standard 512MB, max. 1, 536MB
HDD	80GB

Paper Handling

standard paper capacity	1, 100 sheets
maximum paper capacity	5, 600 sheets
paper weight (tray)	60 g/m² to 209 g/m²

Weight and Dimensions

dimensions	620 x 695 x 950 mm
weight	Approx. 112 kg
