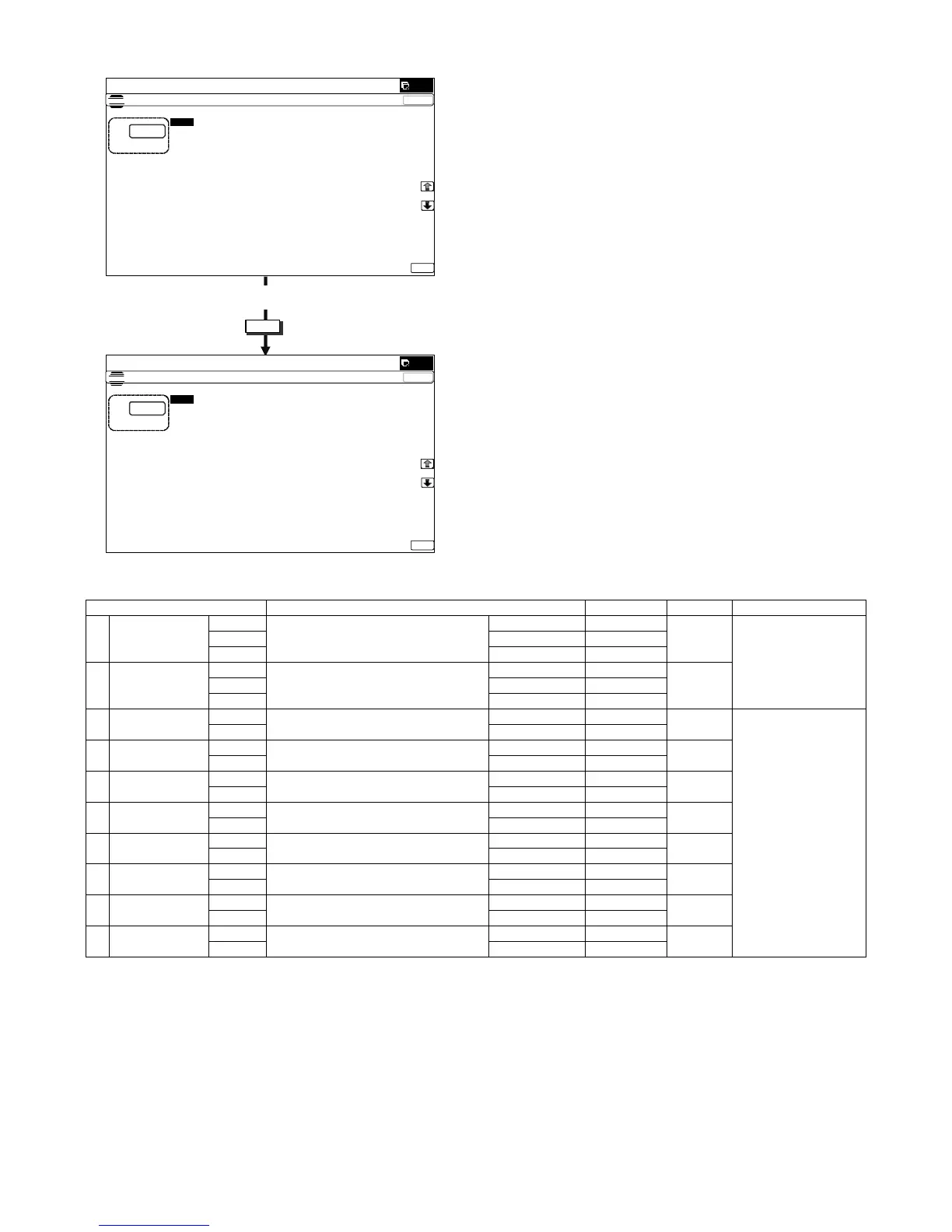

MX-3610N ADJUSTMENTS AND SETTINGS 4 – 59
1) Enter the SIM 46-60 mode.
2) Select the mode to be adjusted with the scroll key.
3) Input numeric value corresponding to sharpness level (filter
process mode).
• Adjustment item A:
When selecting AUTO, filter is selected according to dot pat-
tern state automatically and adjusts sharpness.
Input small numeric value to obtain crispy image. Input large
numeric value to decrease moire.
• Adjustment item B:
Select HIGH to obtain clear images. Select SOFT to reduce
moire.
• Adjustment item C - J:
When setting ON, smoothness in the image shade part
improves by applying soft filter. (asperity decreases)
4) Press [OK] key.
5) Make a copy and check the copy image.
If a satisfactory result is not obtained, return to the SIM 46-60 mode
and change the adjustment value.
Repeat the above procedures until a satisfactory result is obtained.
OK
10-key
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
&2/25$87202'(ǂ),/7(5ǂ$'-8670(17


$˖
˷˹
˖6&5((1),/7(5/(9(/$872
$˖
˖$87202'(),/7(5/(9(/&(17(5
%˖
˖&2/25&23<&0<21
&˖
˖&2/25&23<.21
'˖
˖&2/25&23<&0<21
)˖
˖6,1*/(&2/25&0<21
(˖
˖&2/25&23<.21
*˖
˖%:&23<21
+˖
˖&2/25386+5*%21
,˖
˖%:386+21
-˖
2.
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
&2/25$87202'(ǂ),/7(5ǂ$'-8670(17


$˖
˷˹
˖6&5((1),/7(5/(9(//
$˖
˖$87202'(),/7(5/(9(/&(17(5
%˖
˖&2/25&23<&0<21
&˖
˖&2/25&23<.21
'˖
˖&2/25&23<&0<21
)˖
˖6,1*/(&2/25&0<21
(˖
˖&2/25&23<.21
*˖
˖%:&23<21
+˖
˖&2/25386+5*%21
,˖
˖%:386+21
-˖
2.
Display/Item Content Setting range Default NOTE
A SCREEN FILTER
LEVEL
H Sharpness (filter) adjustment of dot pattern
image in auto copy mode
Strong emphasis 1 3 (Auto) Apply to auto copy mode
only
L Soft emphasis 2
AUTO Auto 3
BAUTOMODE
FILTER LEVEL
SOFT Sharpness (filter) adjustment for the auto
copy mode
SOFT 1 2
(CENTER)
CENTER CENTER 2
HIGH HIGH 3
C COLOR COPY:
CMY
OFF Soft filter applying setting to C, M, Y image
in color copy mode
OFF 0 1 (ON) Available for the high
density image except
text and line image
ON ON 1
D COLOR COPY:K OFF Soft filter applying setting to K image in
color copy mode
OFF 0 1 (ON)
ON ON 1
E SINGLE COLOD:
CMY
OFF Soft filter applying setting to C, M, Y image
in single color copy mode
OFF 0 1 (ON) When setting ON,
smoothness in the image
shade part improves by
applying soft filter.
(asperity decreases)
ON ON 1
F 2 COLOR COPY:
CMY
OFF Soft filter applying setting to C, M, Y image
in 2-color copy mode
OFF 0 1 (ON)
ON ON 1
G 2 COLOR COPY:
K
OFF Soft filter applying setting to K image in
color copy mode
OFF 0 1 (ON)
ON ON 1
H B/W COPY OFF Soft filter applying setting in monochrome
copy mode
OFF 0 1 (ON)
ON ON 1
I COLOR PUSH:
RGB
OFF Soft filter applying setting to image in push
scan color mode
OFF 0 1 (ON)
ON ON 1
J B/W PUSH OFF Soft filter applying setting to image in push
scan monochrome mode
OFF 0 1(ON)
ON ON 1
