1-6
BEFORE USING THE MACHINE
Contents

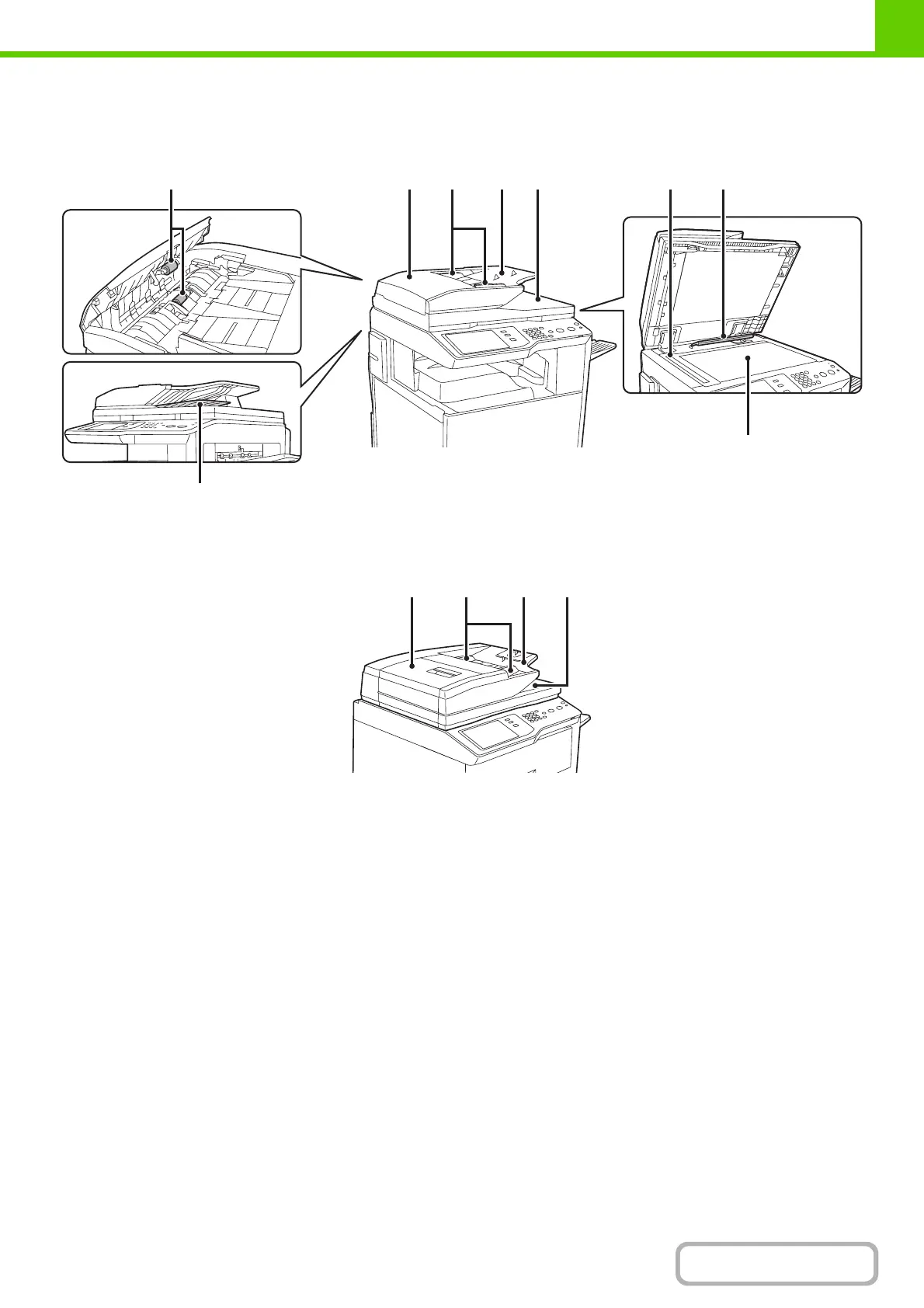

AUTOMATIC DOCUMENT FEEDER AND DOCUMENT
GLASS
Automatic document feeder (MX-4101N/5001N)
(1) Paper feed roller
This roller rotates to automatically feed the original.
(2) Document feeding area cover
Open this cover to remove an original misfeed or clean
the paper feed roller.
(3) Original guides
These help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.
☞ PLACING THE ORIGINAL (page 1-37)
(4) Document feeder tray
Place originals in this tray. 1-sided originals must be
placed face up.
☞ PLACING THE ORIGINAL (page 1-37)
(5) Original exit tray
Originals are delivered to this tray after scanning.
(6) Scanning area
Originals placed in the document feeder tray are scanned
here.
☞ REGULAR MAINTENANCE (page 1-59)
(7) Original size detector
This detects the size of an original placed on the
document glass.
☞ PLACING THE ORIGINAL ON THE DOCUMENT
GLASS (page 1-39)
(8) Reversing tray
During scanning of a 2-sided original, the original is
temporarily output to this tray in order to be turned over
for scanning of the reverse side.
(9) Document glass
Use this to scan a book or other thick original that cannot
be fed through the automatic document feeder.
☞ PLACING THE ORIGINAL ON THE DOCUMENT
GLASS (page 1-39)
(2)
(8)
(9)
(3) (4) (5) (6) (7)(1)
(2) (3) (4) (5)
To Next Page
