BEFORE USING THE MACHINE
Contents
IMPORTANT POINTS ABOUT PAPER
This section provides information that you should know before loading paper in the paper trays.
Be sure to read this section before loading paper.

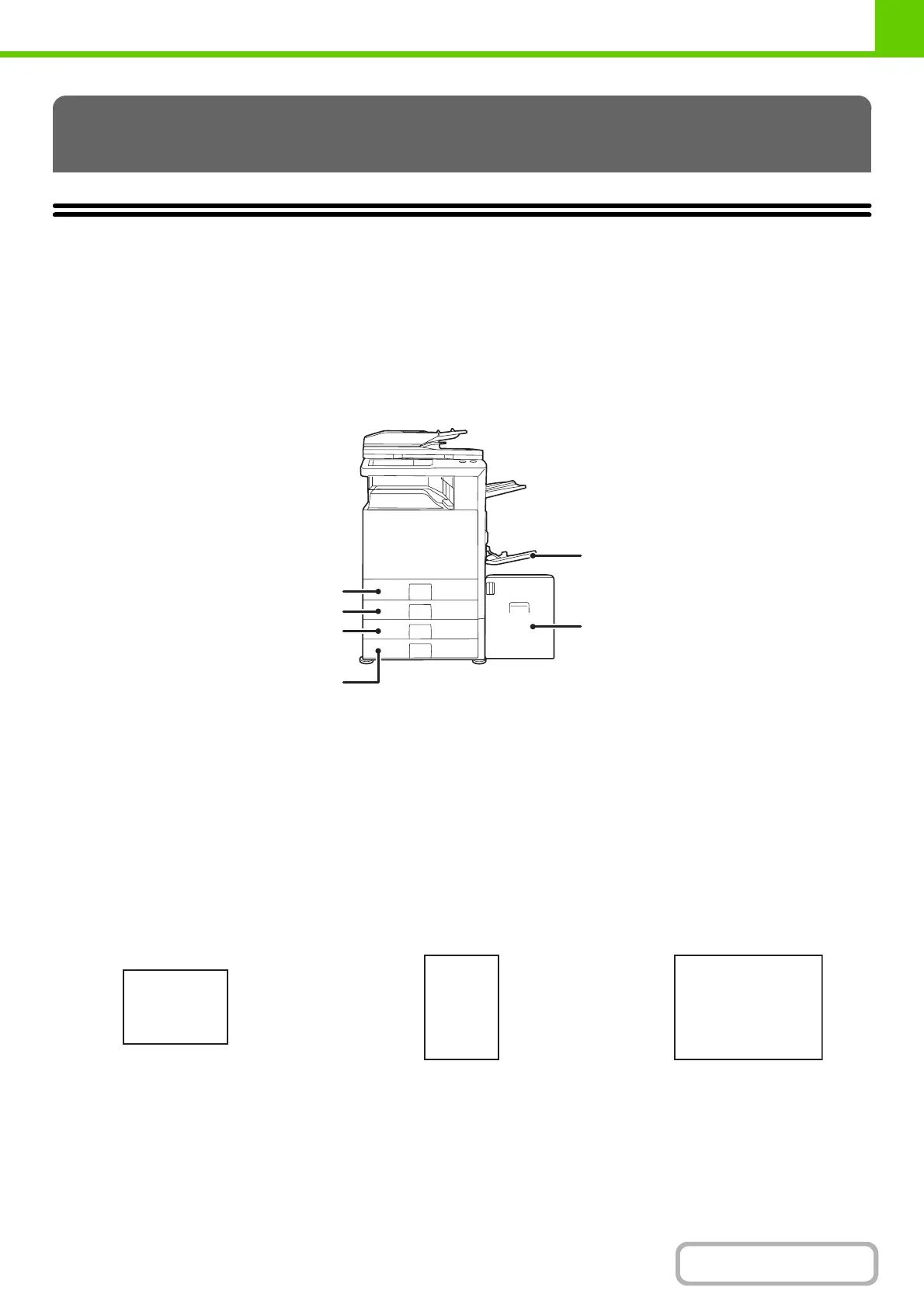

NAMES AND LOCATIONS OF TRAYS
The names of the trays are as follows.
THE MEANING OF "R" IN PAPER SIZES
Some original and paper sizes can be placed in either the vertical or the horizontal orientation. To differentiate between
vertical and horizontal orientations, paper sizes in the horizontal orientation will be followed by an "R" (for example,
8-1/2" x 11"R, A4R).
Sizes that can be placed only in the horizontal orientation (12" x 18", 11" x 17", 8-1/2" x 14", 8-1/2" x 13", A3W, A3, B4)
do not include the "R" in their size indication.
LOADING PAPER
Horizontal orientation
"R" is appended.
Vertical orientation
"R" is not appended.
Can be placed only in the
horizontal orientation
"R" is not appended.
Bypass tray
Tray 5 (when a large
capacity tray is installed)
Tray 1
Tray 2
Tray 3 (when a stand/1 x 500 sheet
paper drawer or a stand/2 x 500
sheet paper drawer is installed)
Tray 4 (when a stand/2 x 500 sheet
paper drawer is installed)
8-½" x 11"R
(A4R)
8-½" x 11"
(A4)
11" x 17"
(A3)
