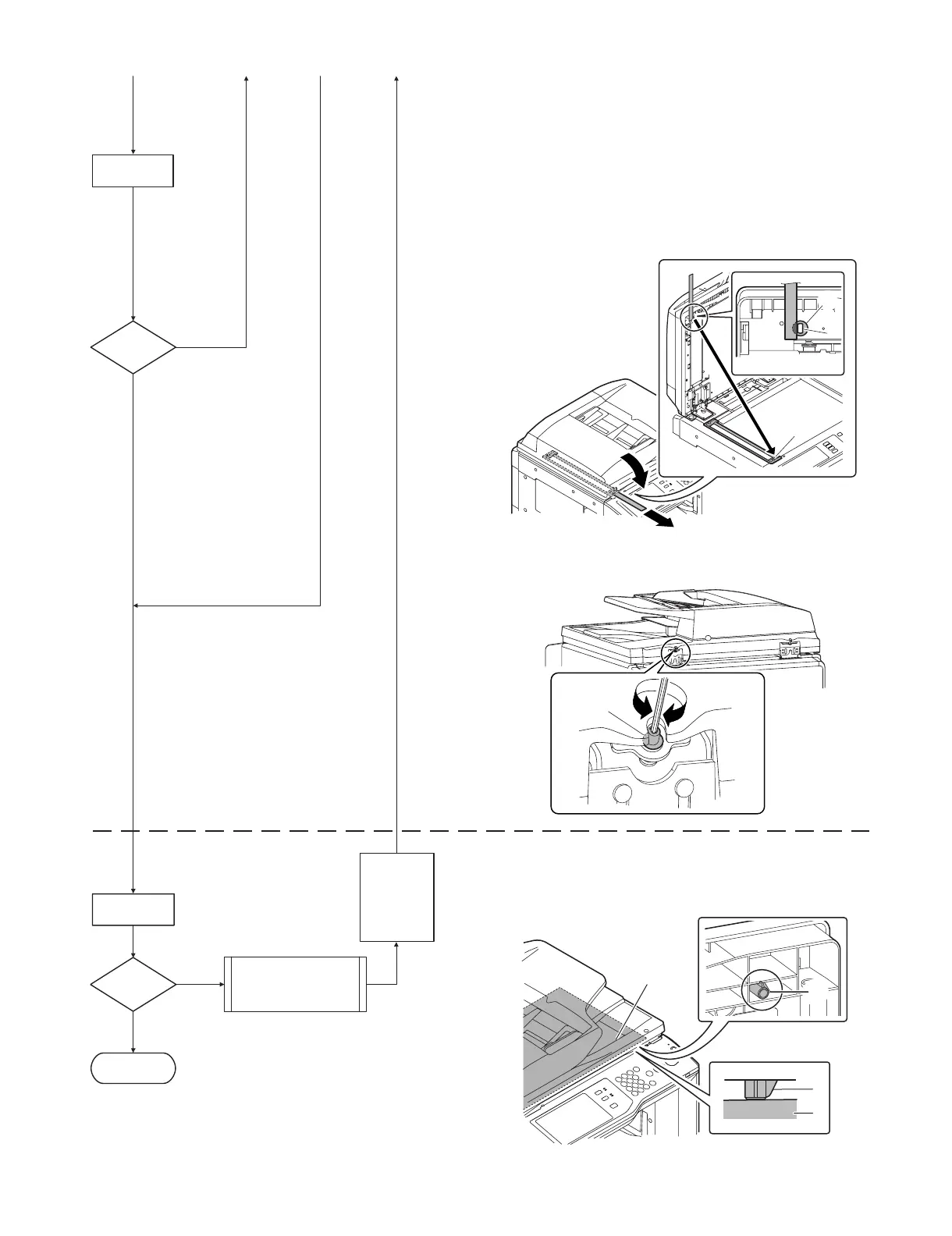

MX-5001N ADJUSTMENTS 5 – 34
E
Yes
Yes
No
No
End of the
adjustment
The bosses in section A
and B are excessively
pressed.(The right
side is separating.)
Adjust hinge
E until the
separation in
section C is
deleted.
(Counter-
clockwise)
Is
there a re-
sistance?
Is there
a separating
section.
Check section C.
e)
If it can be pulled out without resistance, turn the hinge in
section E clockwise to adjust.
f) Check section C.
*
d) Check section B.
*
Check to insure that a slight resistance is felt when pulling out
the RSPF height adjustment sheet. (If the boss in section B is
in contact, it is O.K.)
Slowly pull out the RSPF height adjustment sheet.
Place the RSPF height adjustment sheet between section B
and the SPF glass height adjustment resin surface (a), and
close the RSPF unit.
Be careful not to put the book sensor (b) on the height
adjustment sheet.
Check section B.
a
B
b
b
C
b
C
