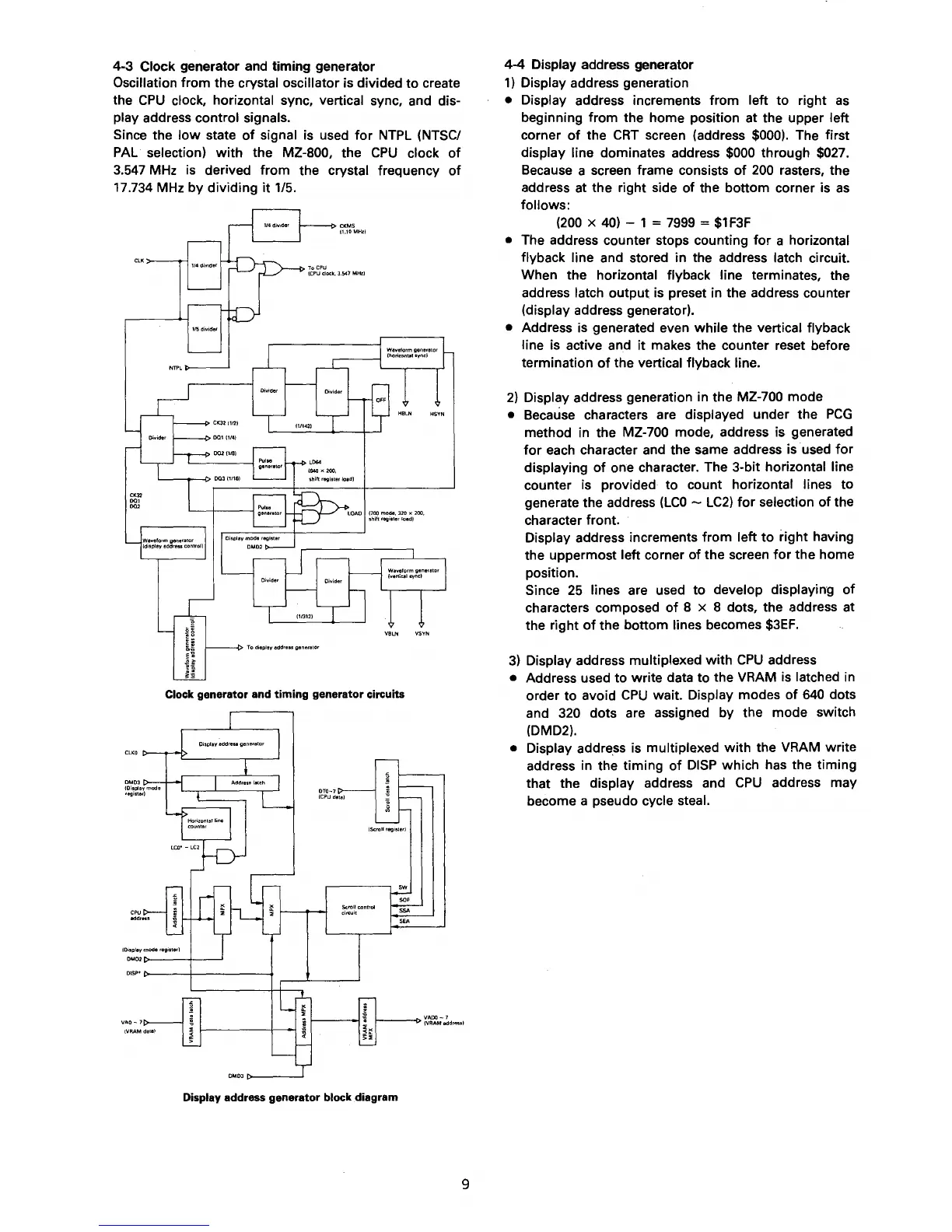

4-3 Clock generator and timing generator
Oscillation
from
the crystal oscillator is divided
to
create
the
CPU
clock, horizontal sync, vertical sync, and dis-
play
address control signals.
Since the
low
state
of
signal is used
for
NTPL (NTSC/
PAL selection)
with
the MZ-800, the
CPU
clock
of
3.547 MHz is derived
from
the crystal frequency
of
17.734 MHz
by
dividing
it
1/5.
Clock generator and
timing
generator circuits
Display address generator block diagram
9
4-4
Display address generator
1)
Display address generation
• Display address increments
from
left
to
right
as
beginning
from
the home position at the upper left
corner
of
the
CAT
screen (address $000). The first
display line dominates address $000 through $027.
Because a screen frame consists
of
200
rasters, the
address at the right side
of
the
bottom
corner is
as
follows:
(200
X 40) - 1 = 7999 =
$1
F3F
• The address counter stops counting
for
a horizontal
flyback line
and stored in the address latch circuit.
When the
horizontal flyback line terminates, the
address
latch
output
is preset in the address counter
(display address generator).
• Address is generated even
while
the vertical flyback
line
is active and
it
makes the counter reset before
termination
of
the vertical flyback line.
2)
Display address generation in the MZ-700 mode
• Because characters are displayed under the
PCG
method in the MZ-700 mode, address is generated
for
each character and the same address is used
for
displaying
of
one character. The 3-bit horizontal line
counter is provided
to
count horizontal lines
to
generate the address
(LCO
-
LC2)
for
selection
of
the
character front.
Display address increments
from
left
to
i-ight having
the uppermost
left corner
of
the screen
for
the
home
position.
Since
25
lines are used
to
develop displaying
of
characters composed
of
8 x 8 dots, the address at
the right
of
the bottom lines becomes
$3EF.
3)
Display address multiplexed
with
CPU
address
• Address used
to
write data
to
the VRAM is latched in
order
to
avoid
CPU
wait. Display modes
of
640 dots
and
320 dots are assigned by the mode switch
(DMD2).
• Display address is multiplexed
with
the VRAM write
address in the
timing
of
DISP
which has the timing
that the
display address and
CPU
address may
become a pseudo
cycle steal.
