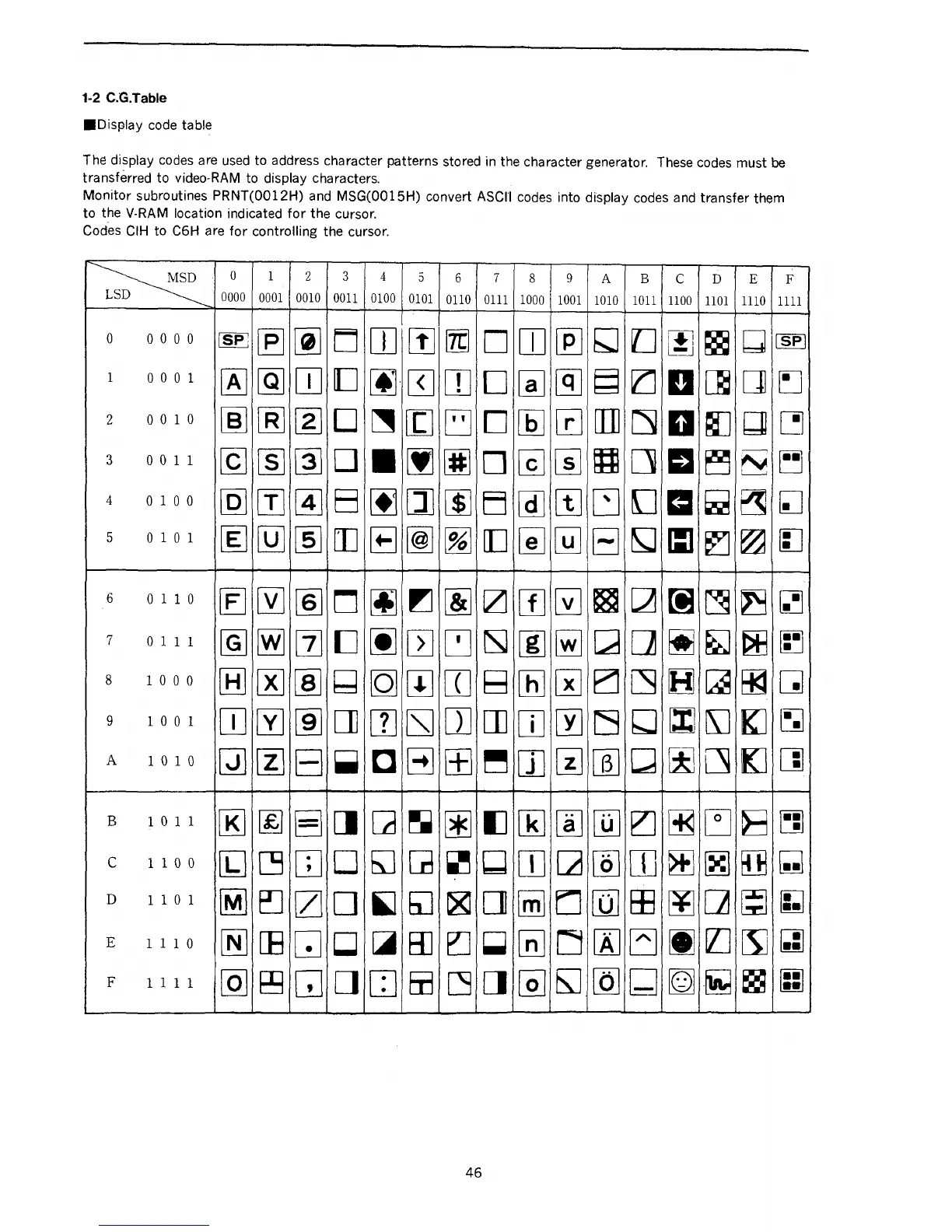

1-2 C.G.Table
•Display code table
The display codes are used to address character patterns stored in the character generator. These codes must be
transferred to video-RAM to display characters.
Monitor subroutines
PRNT(0012H) and MSG(0015H) convert ASCII codes into display codes and transfer them
to the
V-RAM location indicated for the cursor.
Codes
CIH to C6H are for controlling the cursor.
~
