18
PG-B10S

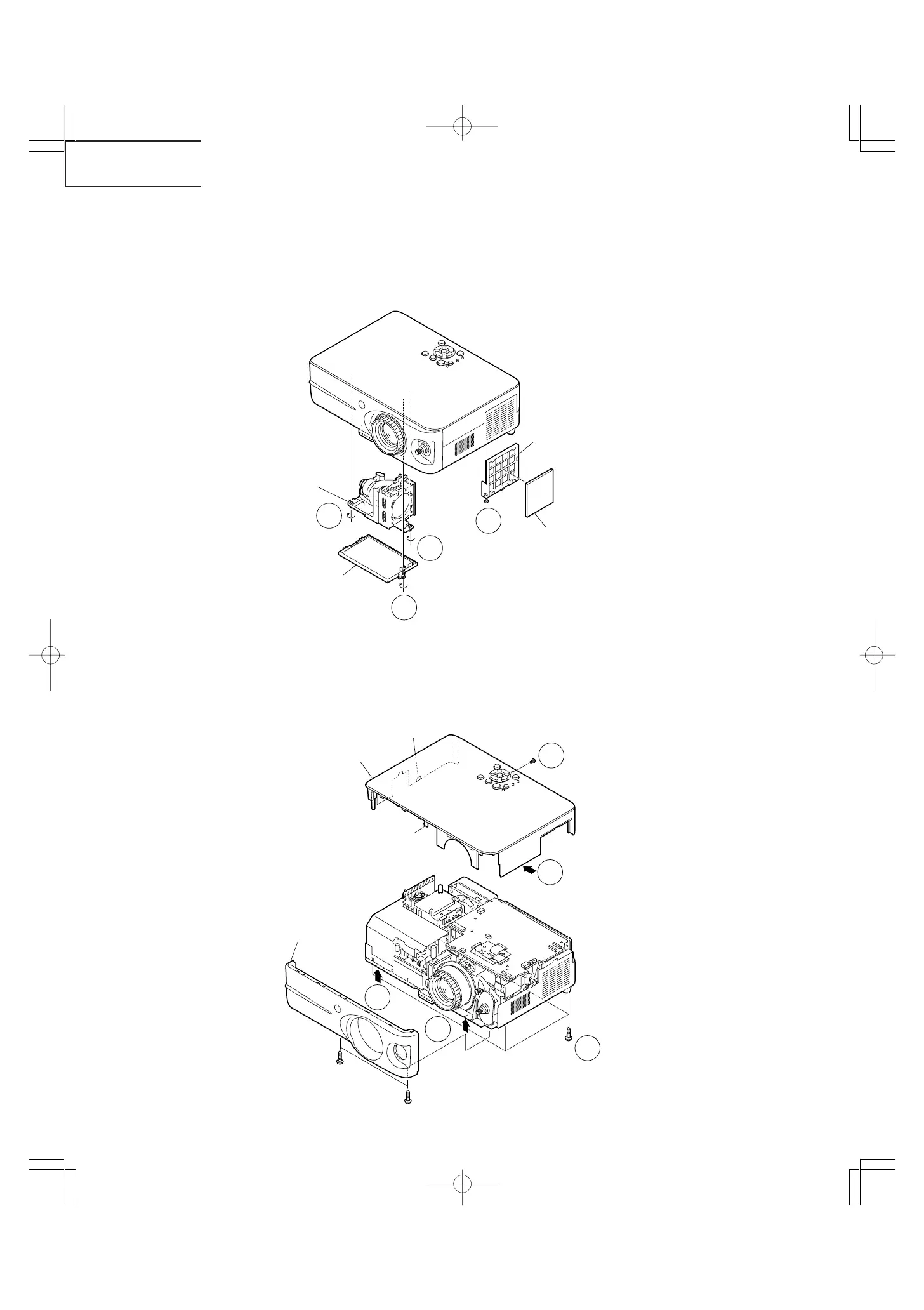

2. Removing the front and top panels
2-1. Remove the seven lock screws from the front and top panels.
2-2. Lift the right-hand side of the top panel, and undo the hooks at the front and left-hand side of the top panel.
Now detach the top panel.
2-3. Undo the arrow-marked hooks, and detach the front panel.
REMOVING OF MAJOR PARTS
1. Detaching the lamp unit cover and filter cover
1-1. Remove the lock screw from the lamp cover, and detach the lamp cover.
1-2. Remove the two lock screws from the lamp unit, and detach the lamp unit.
1-3. Remove the one lock screws from the filter cover, and detach the filter cover.
1-2
1-2
1-3
1-1
Lamp cover
Air filter
Filter cover
Lamp unit
2-2
2-2
2-1
2-3
2-3
Top panel
Hook
Hook
Front panel
To Next Page
