PG-B10S

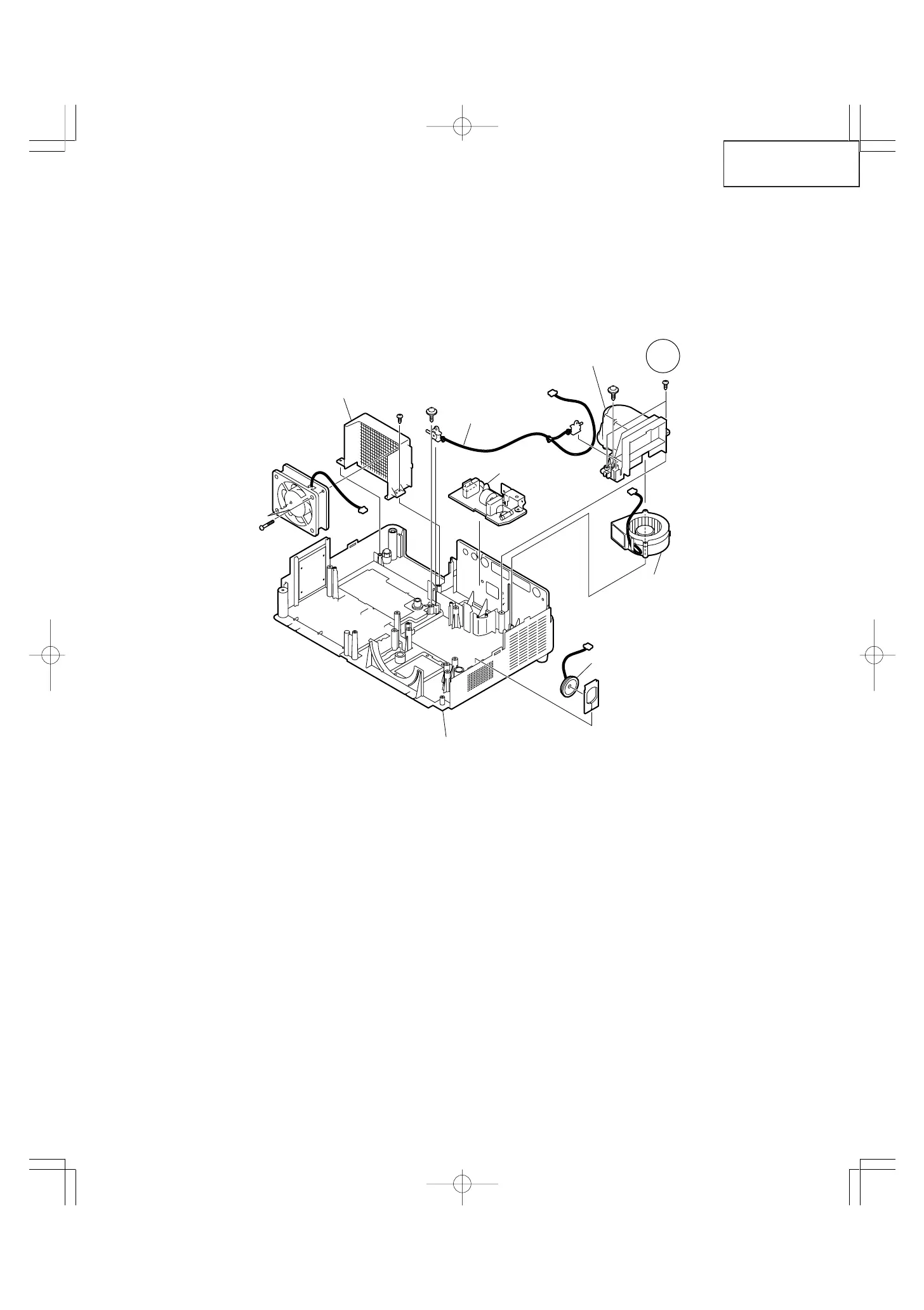

6. Detaching the AC inlet, exhaust fan, speaker, suction duct and suction fan
6-1. Detach the AC inlet PWB.
6-2. Remove the lock screw from the exhaust fan, and detach the exhaust fan.
6-3. Detach the speaker.
6-4. Remove the two lock screws from the suction duct, and detach the suction duct.
6-5. Detach the suction fan.
6-4
Suction duct
Exhaust fan
Leaf switch
Suction fan
Speaker
Bottom panel
AC inlet PWB
