PG-B10S

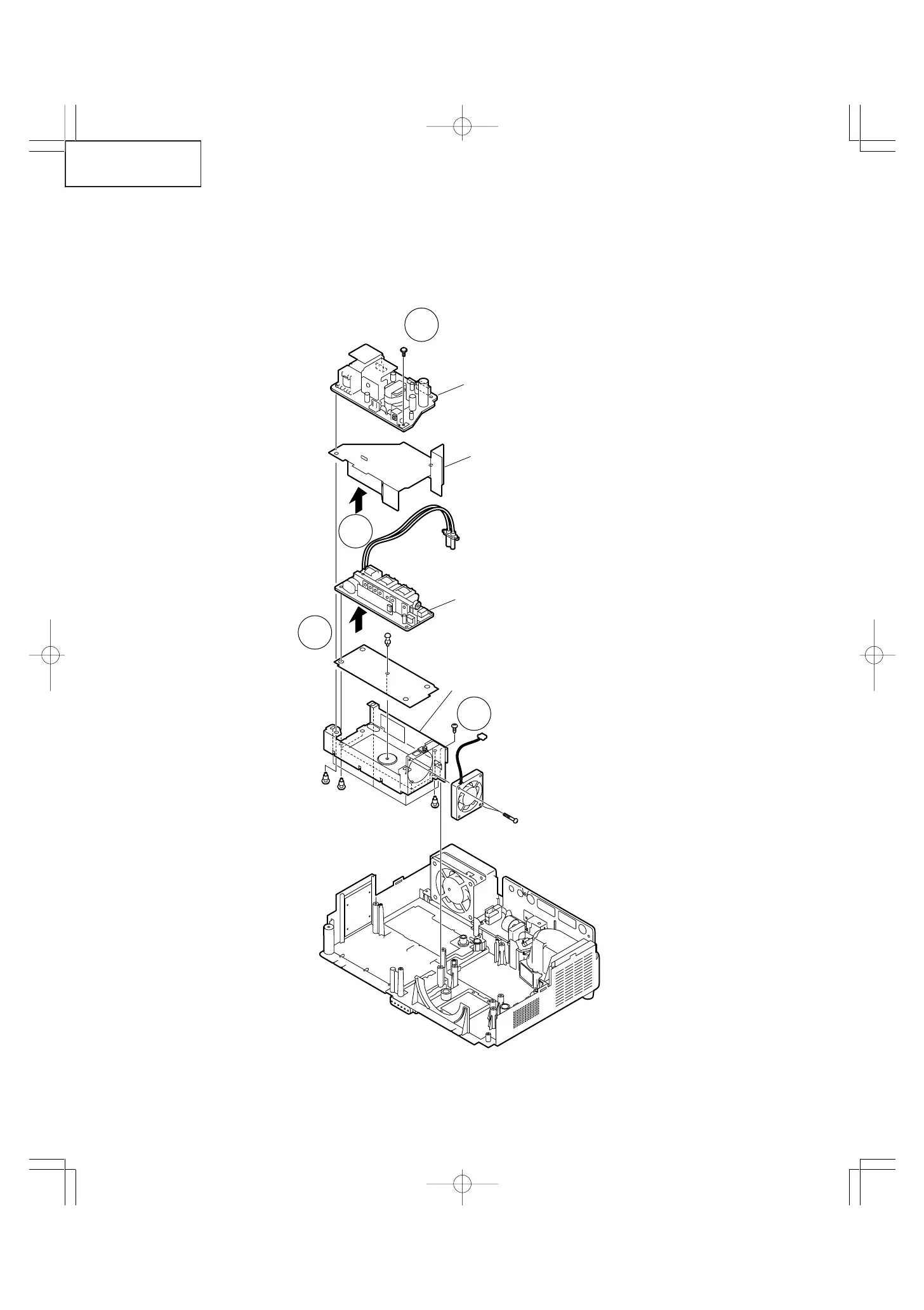

5. Detaching the power PWB/ballast PWB unit
5-1. Remove the four lock screws from the power PWB/ballast PWB unit, and detach the power PWB/ballast
PWB unit.
5-2. Detach the insulating board.
5-3. Detach the ballast PWB.
Power PWB
Top shield
Ballast PWB
Bottom shield
5-1
5-2
5-3
5-1
