Sharp PG-C30XU - REMOVING OF MAJOR PARTS; Removing the Intake cover and lamp unit

13
PG-C30XU
REMOVING OF MAJOR PARTS

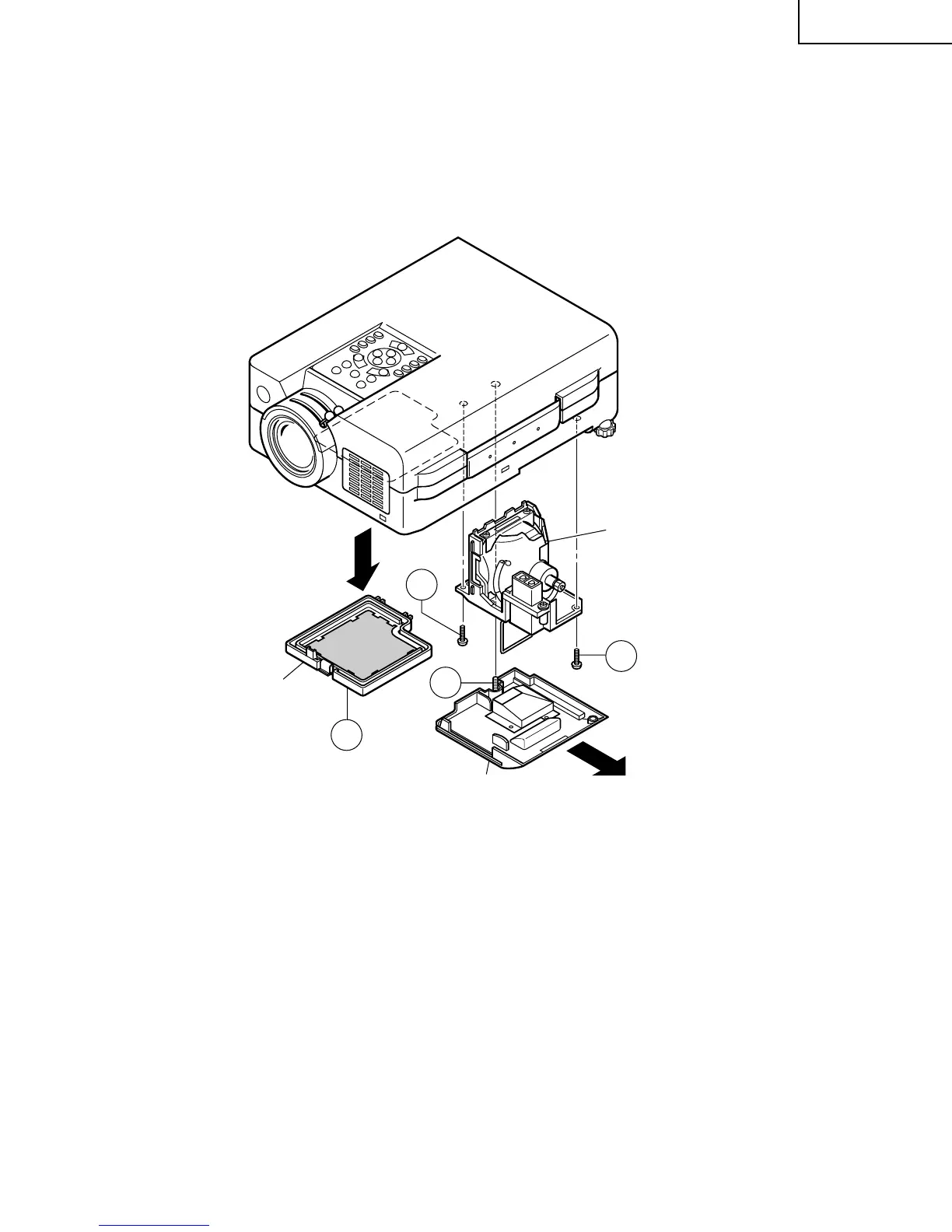

1. Removing the Intake cover and lamp unit
1-1. Detach the Intake cover.
1-2. Loosen the lamp cover screw and draw out the lamp cover in the direction of arrow (toward yourself).
1-3. Remove the two lamp unit lock screws. Detach the lamp unit.
Note:
When replacing the lamp, make sure
that there is a clearance of over
8mm between the terminal and the
lamp snap-on spring (and other
metallic parts).
SHARP
Lamp unit
Lamp cover
1-2
Intake cover
1-1
1-3
1-3
