THE OPTICAL UNIT OUTLINE

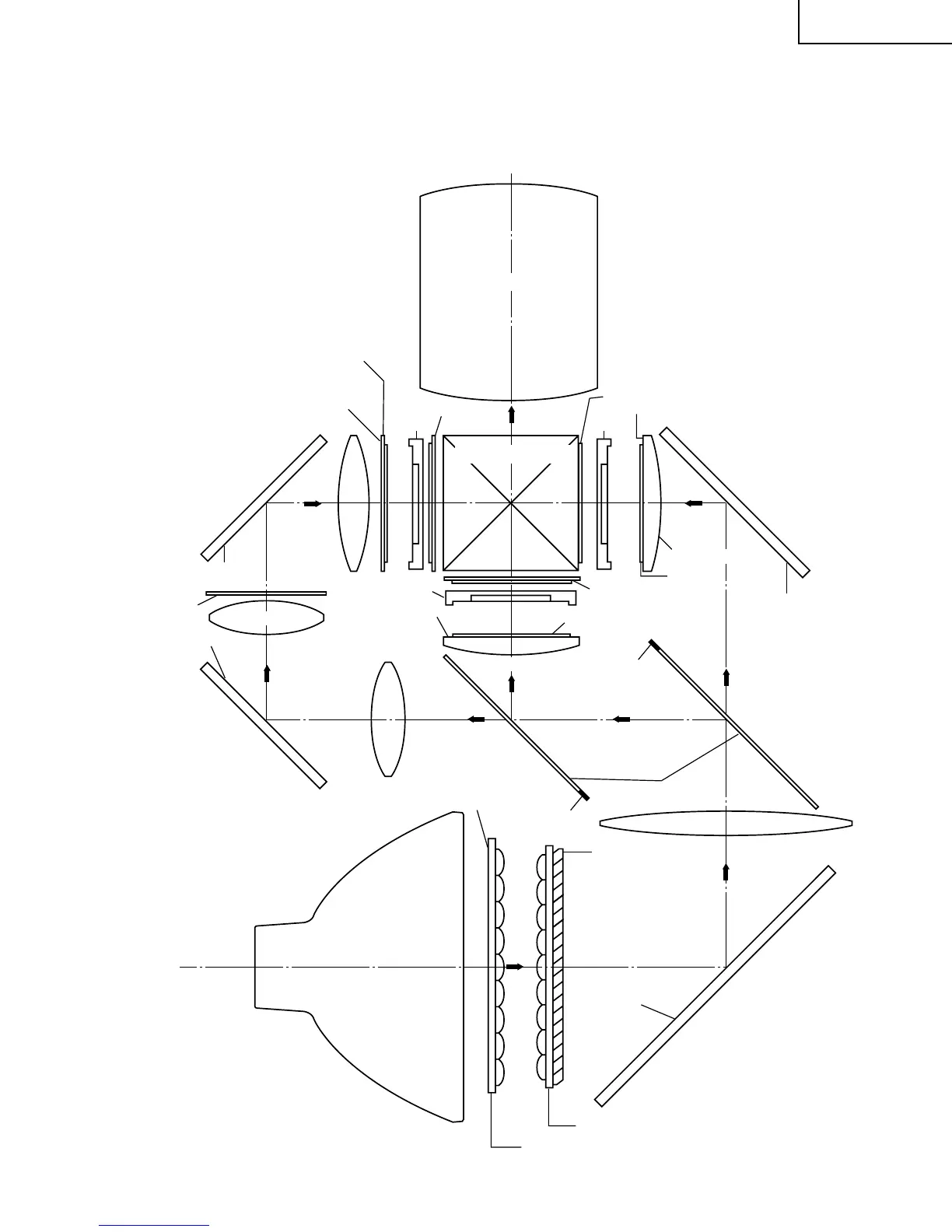

Layout of the optical system
Note: Layout for positioning the optical system.
B-LCD
G-LCD
GREEN
BLUE
BLUE
RED
R-LCD
AR coating
Dichroic coating
(B reflection)
Dichroic coating
(B reflection)
Porarizing film
Porarizing film
AL-coated mirror R
AL-deposited face
(R reflection)
Dichroic coating
(G transmission)
G reflector
Dichroic coating
Marking
Marking
(Bottom)
B/G reflector
AL-coated mirror W
AL-deposited
face
Fly-eye lens (outgoing light)
Fly-eye lens (incoming light)
DC lamp
(Light source)
Relay lens 1
Projection Lens
B reflector
B reflector
Cross dichroic prism
Incident polarizing plate B
emergent polarizing
plate B
Relay lens 3
Relay lens 2
emergent
polarizing plate G
emergent polarizing plate R
Condenser lens G
Condenser lens R
Dichroic coating (R transmission)
M3
M4/M6
RL3
CL2
RL2
CL3
RL1
M4/M6
M2
M5
M1
PBS(polarization
beam splitter)
CL1
UV-IR coating
UV-filter
