Sharp PG-C30XU - Removing the Power;Ballast unit assembly; Removing the ballast unit and inlet unit

17
PG-C30XU

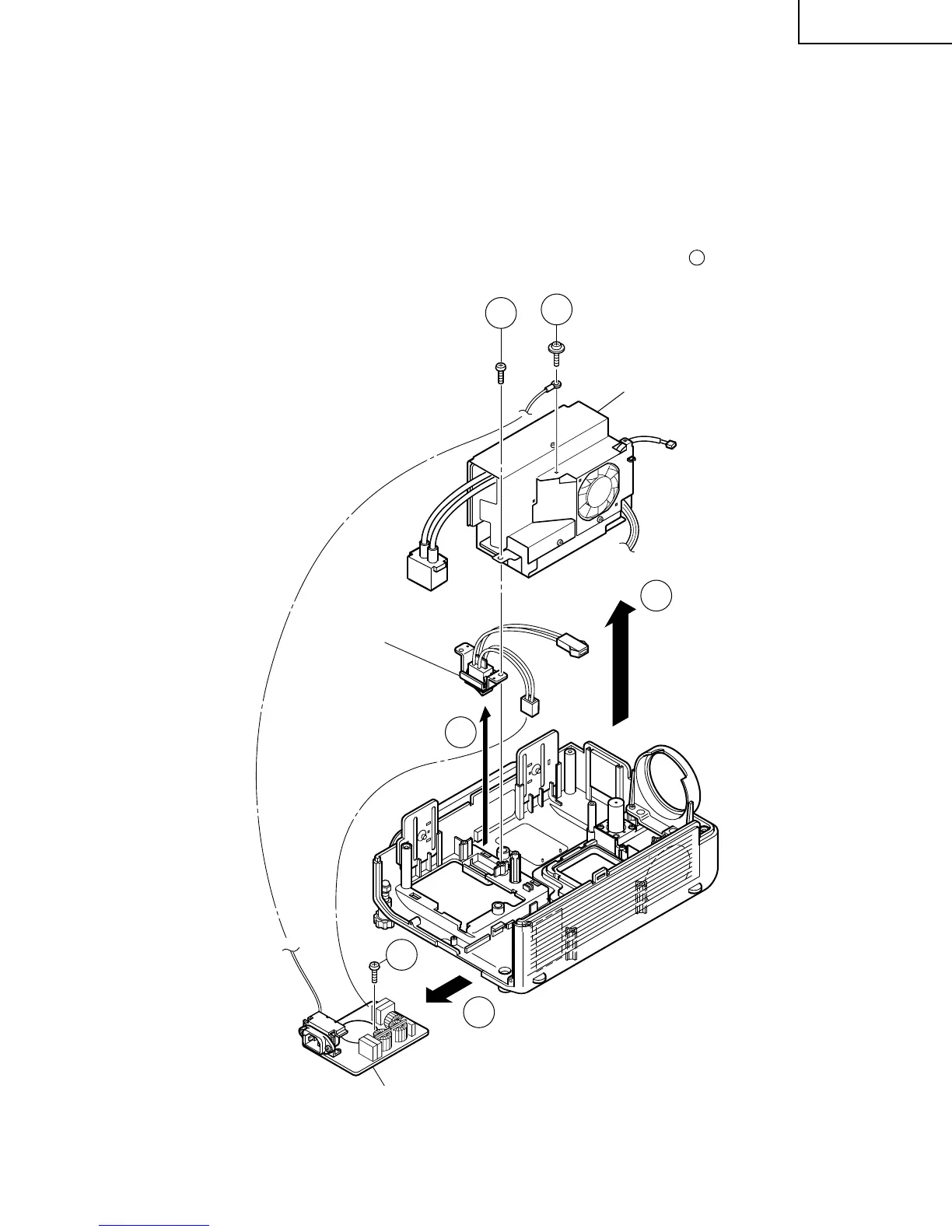

5. Removing the Power/Ballast unit assembly
5-1. Remove the Power/Ballast unit assembly lock screw.
5-2. Remove the (FG) lead lock screw.
5-3. Lift the Power/Ballast unit assembly off the position.
6. Removing the ballast unit and inlet unit
6-1. Disconnect the connector (PA) from the inlet unit. Take out the AC power switch.
6-2. Remove the Inlet unit lock screw.
6-3. Pull the inlet unit toward yourself off the position.
Note: Before installing the lamp cover, make sure the AC power switch is at the " " (OFF) position.
6-1
6-3
(PA)
(BA)
(PA)
(FG)
AC power switch
(for Lamp replacement)
Inlet Unit
5-1
5-2
5-3
(FG)
(TP)
6-2
Power/Ballast Unit Ass'y
