55
1716 1918151413121110
PG-C30XU

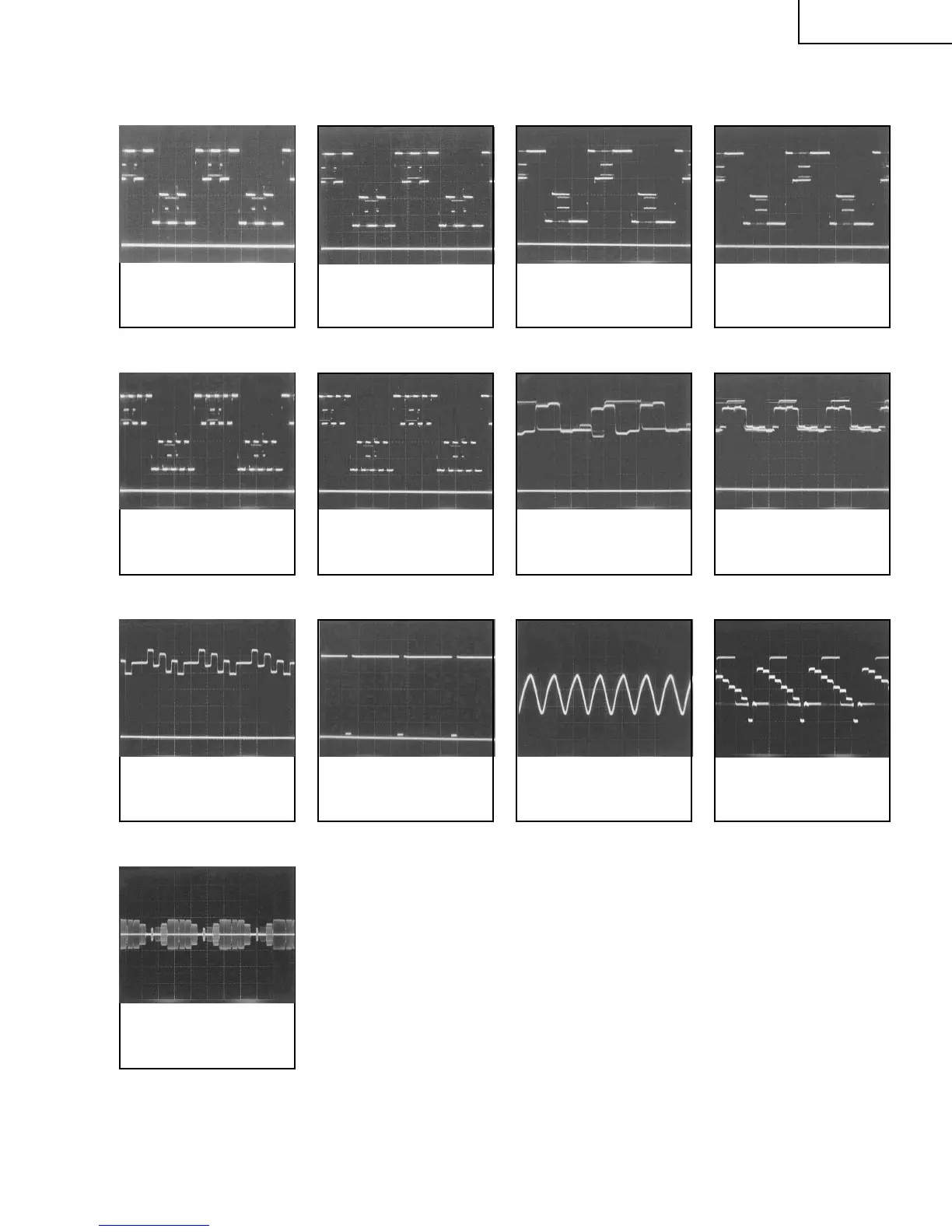

WAVEFORMS
e Q6003 Emitter
(CHROMA signal)
H : 10µsec/div
V : 0.2V/div
5 SC1301 7-pin
(BP SIG5)
H : 10µsec/div
V : 2V/div
1 SC1101 7-pin
(RP SIG5)
H : 10µsec/div
V : 2V/div
9 P801 4-pin
(B-Y)
H : 20µsec/div
V : 1V/div
2 SC1101 8-pin
(RP SIG6)
H : 10µsec/div
V : 2V/div
3 SC1201 7-pin
(GP SIG5)
H : 10µsec/div
V : 2V/div
4 SC1201 8-pin
(GP SIG6)
H : 10µsec/div
V : 2V/div
7 P801 1-pin
(R)
H : 10µsec/div
V : 0.5V/div
8 P801 2-pin
(G)
H : 20µsec/div
V : 0.5V/div
6 SC1301 8-pin
(BP SIG6)
H : 10µsec/div
V : 2V/div
w Q6008 Emitter
(Y-signal)
H : 10µsec/div
V : 0.2V/div
q Q422 Emitter
(4FSC)
H : 50µsec/div
V : 0.5V/div
0 IC604 6-pin
(H-OUT)
H : 20µsec/div
V : 1V/div
