Sharp PN-K321 Service Manual

PN-K321/K322B OUTLINE OF THE PRODUCT 1 - 2

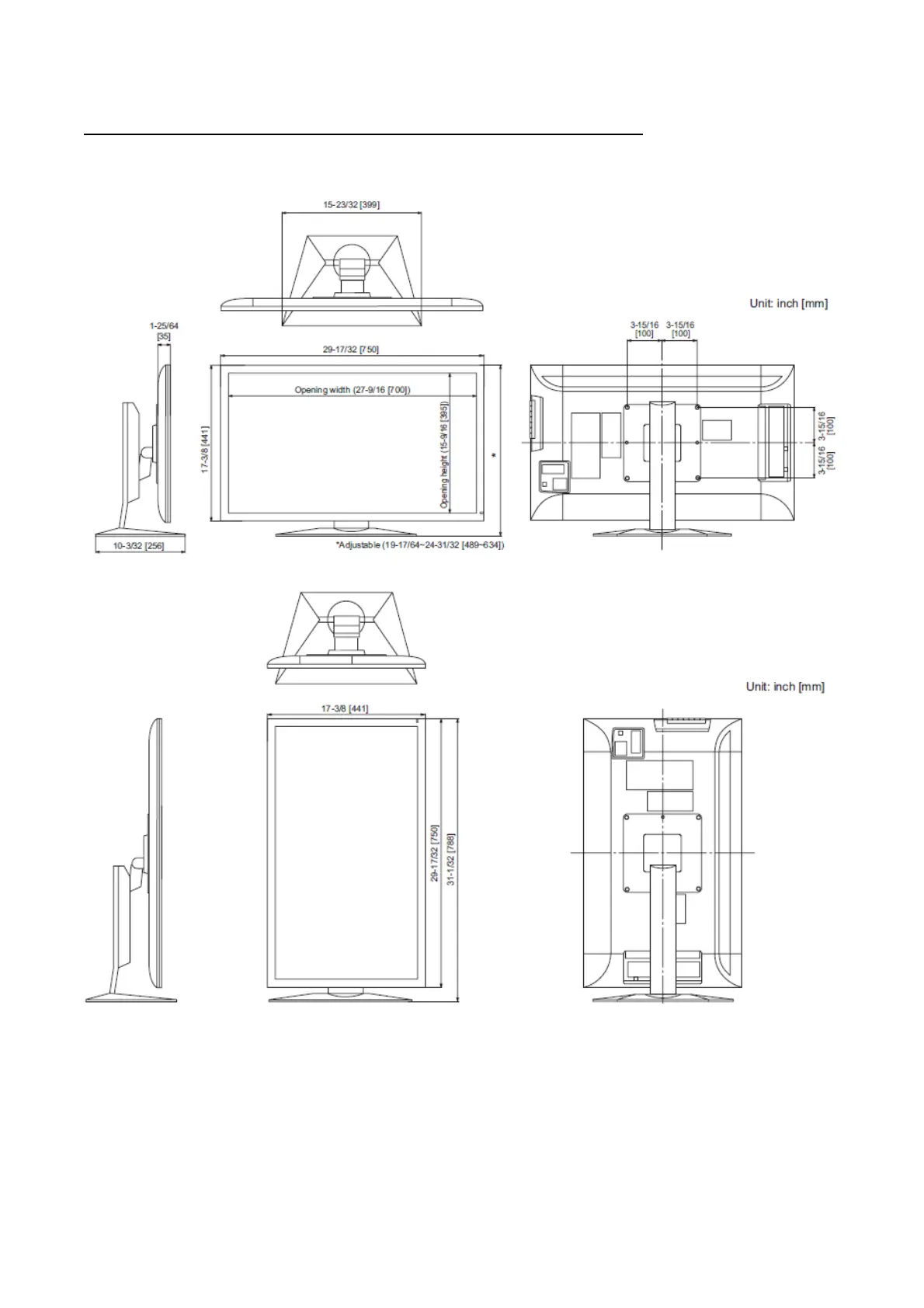

1 – 2.Dimensional Drawings(That the values shown are approximate values)
PN-K321/321H
■Landscape
■Portrait
When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible
(200x200pitch) mounting
method. SHARP recommends using M6 screws and tighten the screws.
Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal
injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch
(8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times or more the
weight of the monitor.

Sharp PN-K321 Specifications

General

Brand	Sharp
Model	PN-K321
Category	Monitor
Language	English
