CHAPTER 6. DISASSEMBLY AND ASSEMBLY
PN-K321/K322B DISASSEMBLY AND ASSEMBLY 6 – 7

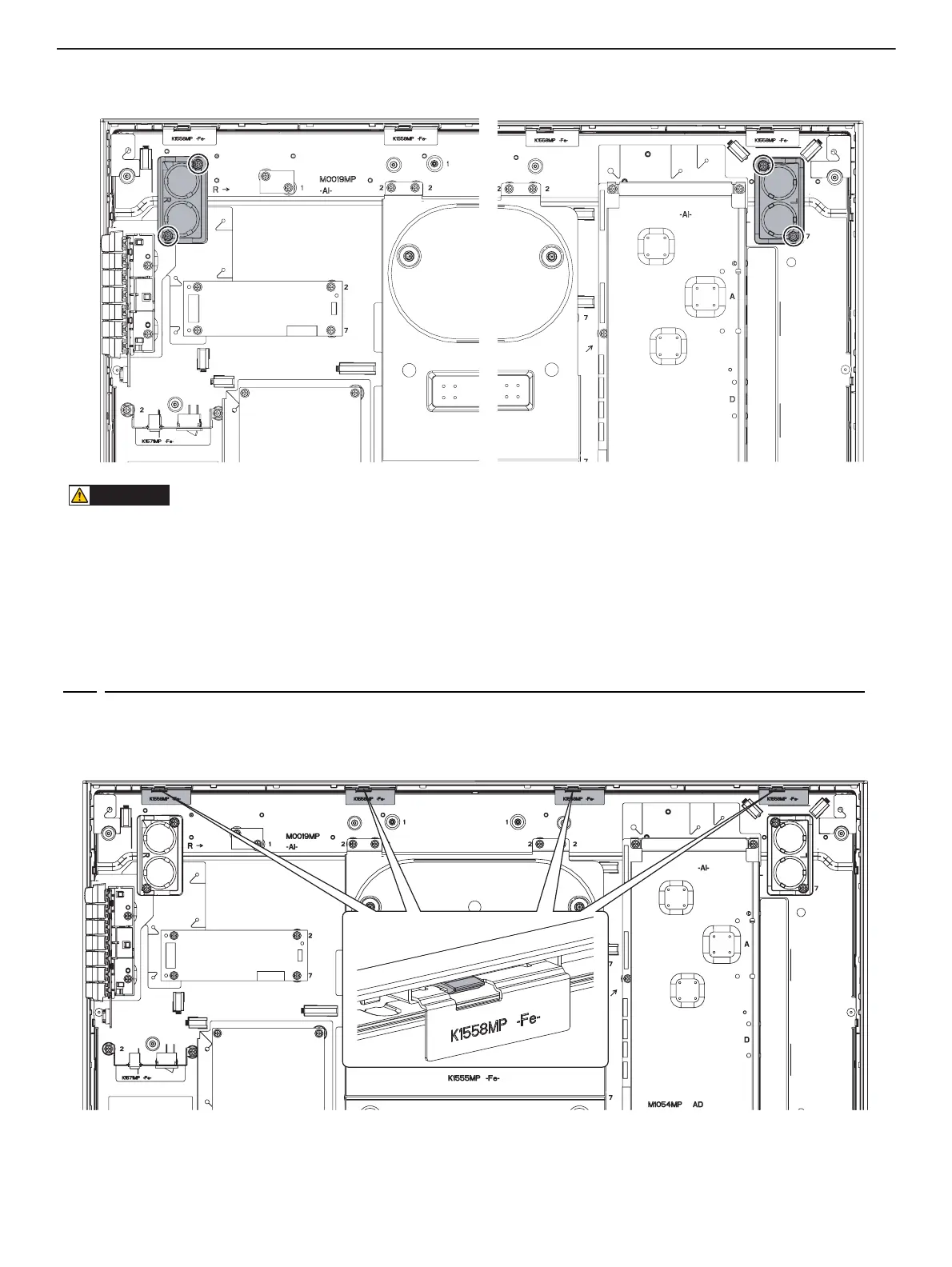

3 ) Remove four screws (M3 x 6 3W) and remove the speakers L/R.
NOTE FOR ASSEMBLY
・The speakers L/R have an engraved mark for identification. Do not install it in the opposite direction.
SCREW TIGHTENING TORQUE
・0.4 - 0.6N•m
10. FRONT COVER
1 ) Refer to [2. REAR COVER] and remve the rear cover.
2 ) Remove the four pawls of the Panel fix angle and remove the Panel fix angle.
To Next Page
