Sharp PN-K321 Service Manual

PN-K321/K322B DISASSEMBLY AND ASSEMBLY 7 – 1
CHAPTER 6. DISASSEMBLY AND ASSEMBLY
CAUTION
・Do not touch the PWBs which employ lead-free solder with bare hands. Always use gloves.
・Use the earth band when performing the procedures.
・When servicing the Display such as replacing a PWB, make sure to service with the Display laid and with a protective sheet spread over
the LCD panel.
・While working with the Display laid, or when moving the Display after the work, applying stress to the bezel may cause it to get deformed.
Be sure to handle it with great care.

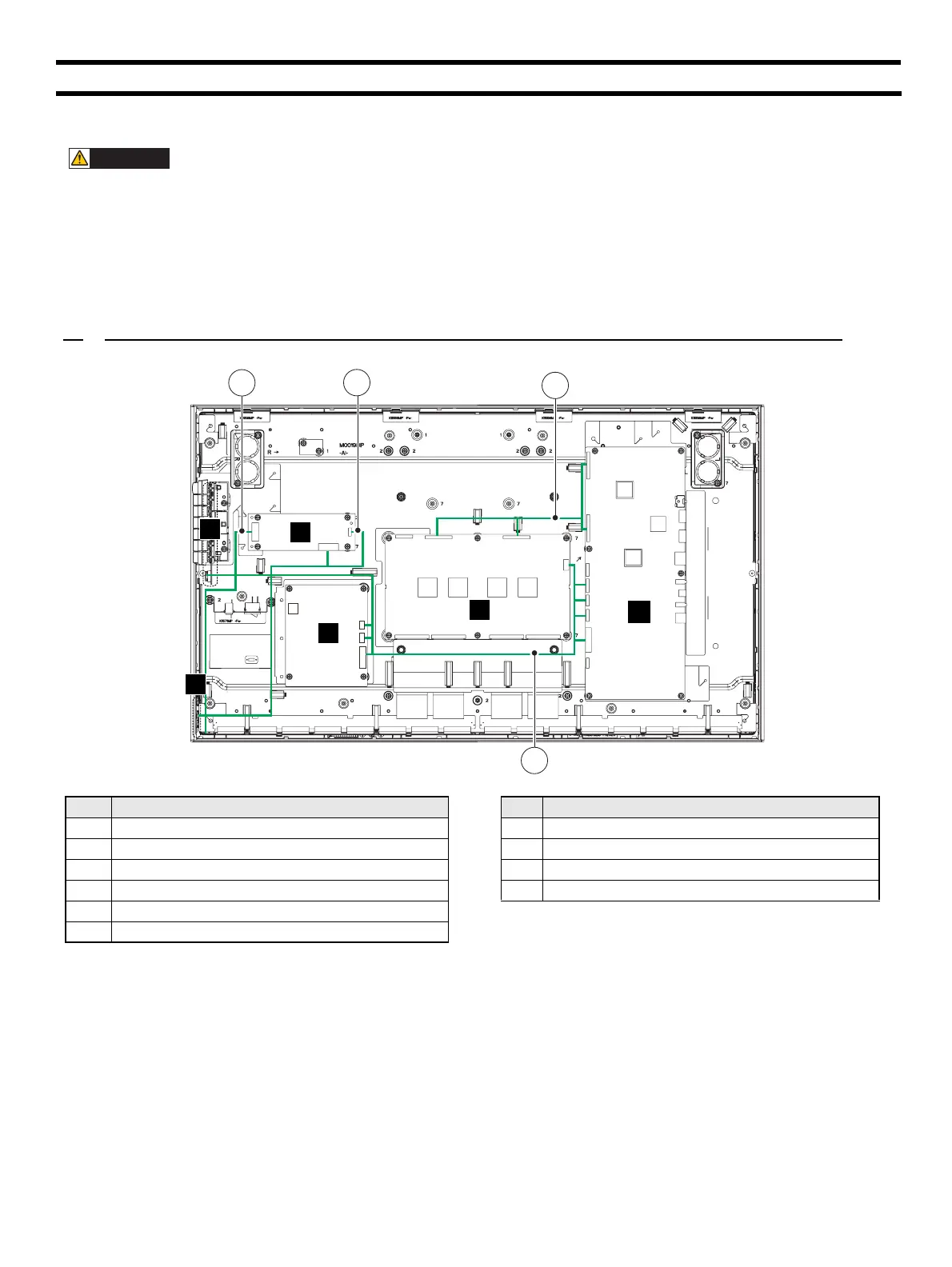

1. PWB AND WIRING DIAGRAM
B
F
A
C
D
E
1
3
2
4
No. Parts name
A MAIN IF PWB
BDC-DC PWB
CLED TCON unit
D LED DRIVE PWB
E KEY PWB
F LED INDICATOR PWB
No. Cable name
1
Main cable
2
DC power cable
3
LED power cable
4
LVDS FFC
