CHAPTER 6. DISASSEMBLY AND ASSEMBLY
PN-K321/K322B DISASSEMBLY AND ASSEMBLY 6 – 16
14. EMI SHEET

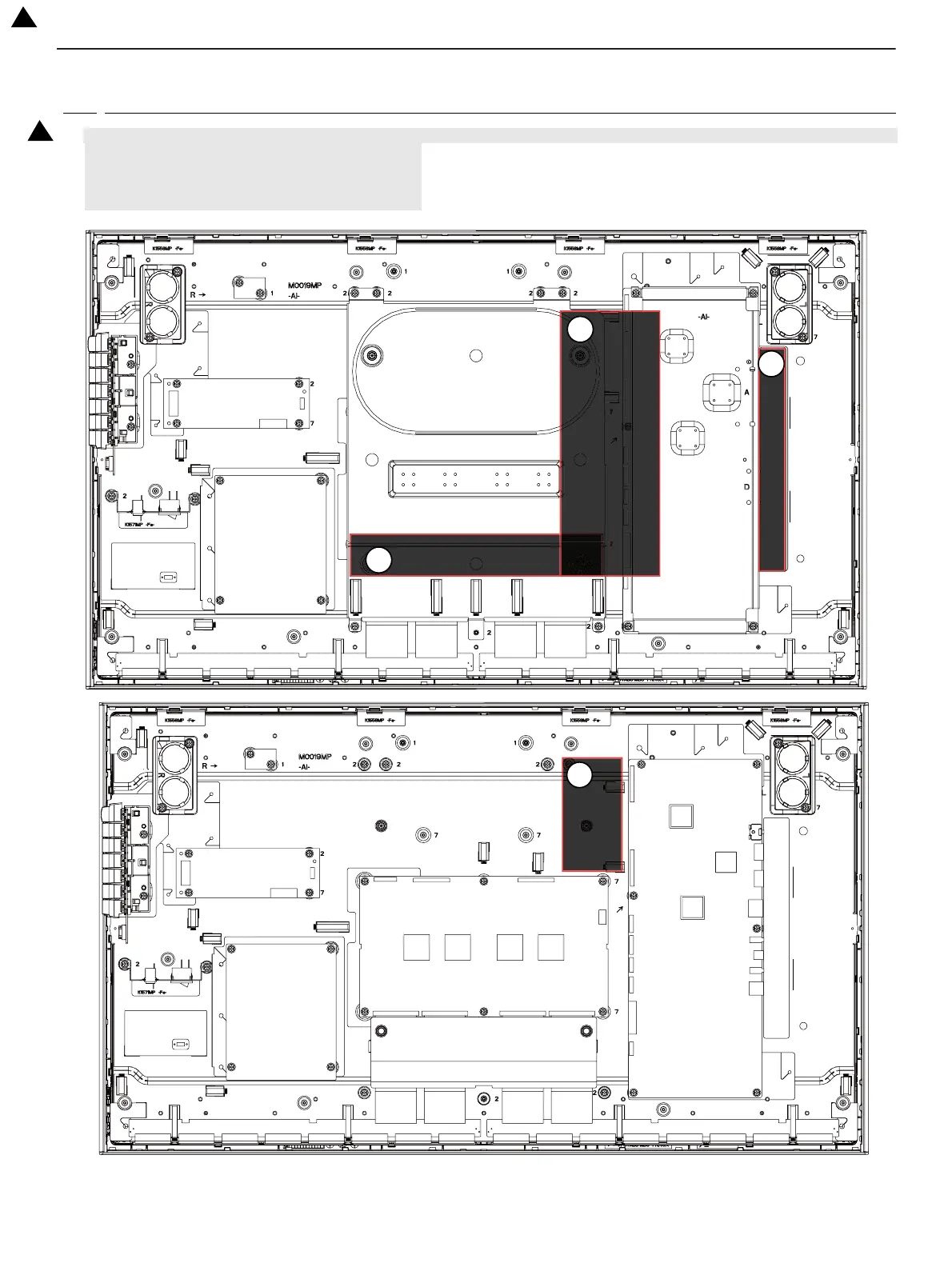

１） The EMI Sheets are put on the following places. Therefore, when the VESA angle, the Main IF Shield and the LVDS cable are removed, the
EMI sheets need to be removed and cannot be used again.
- VESA angle : EMI sheet A and B need to be removed
- Main IF Shield : EMI sheet B and C need to be removed
- LVDS cable : EMI sheet D needs to be removed
-
A
B
C
3
: ’13.Dec
3
