PN-K321/K322B SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4 - 36
16-4. Calibration Touch Psition
16-4-1. Limitation
- Windows cannot recognize touch event during calibration. So,
during calibration, use another pointing device such as mouse.
- A keyboard is required, to press number key in calibration.
16-4-2. Procedure

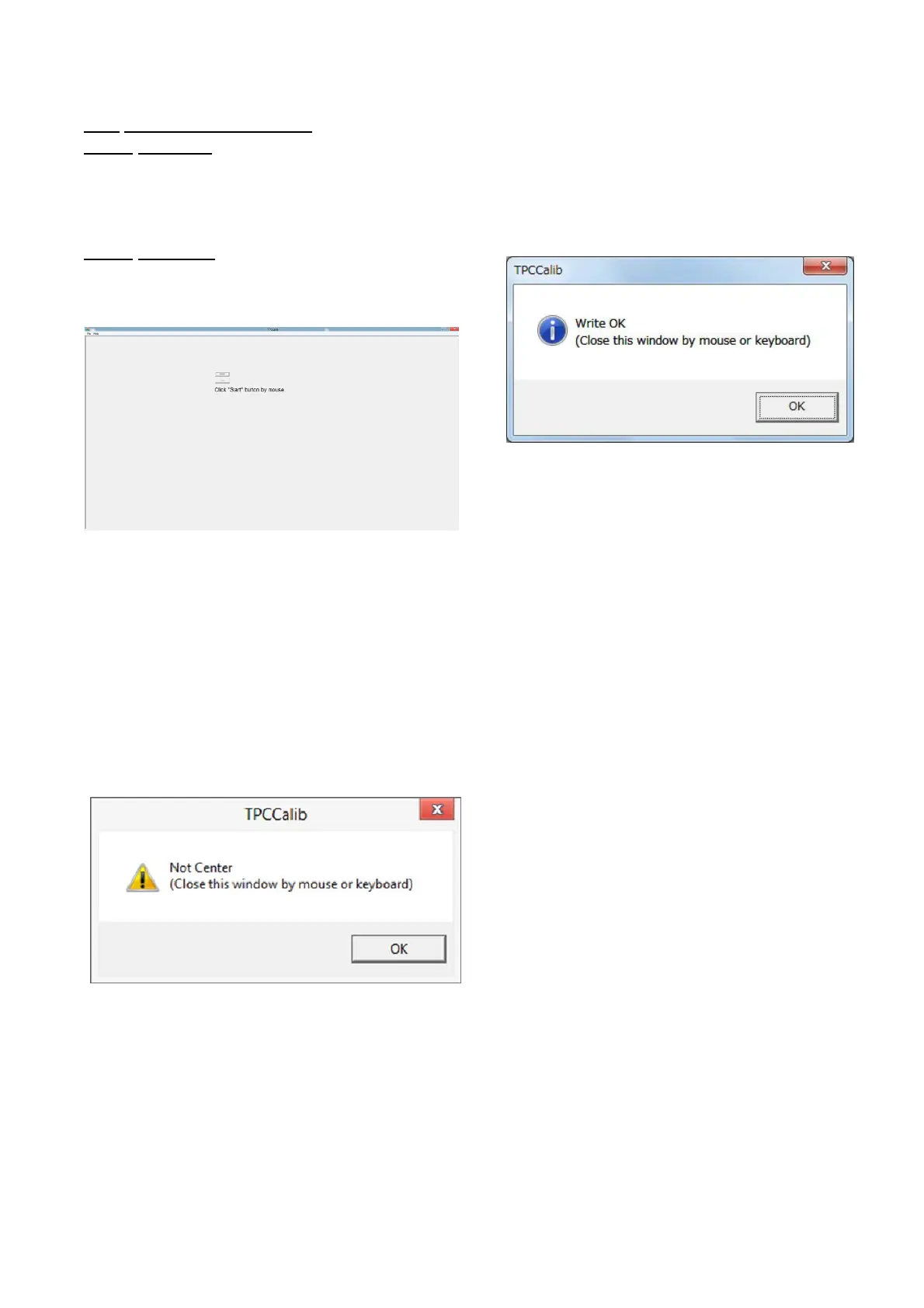

1) Press [TP Calibration] button on Service Tool Launcher and
start up touch position calibration tool.
2) Press “Start” button and start calibration.
Red cross appears on upper left of the screen.
3) Touch the center of the red cross for about one second.
The color changes from red to green and another cross
appears. The nine crosses appear in total. Pressing ESC
returns to previous one.
If the center of the cross is not touched properly, the color of
the cross does not change and error message appears. In that
case, touch the cross again.
If the color of the cross changes to green without touching the
center of the cross properly, press ESC key and try again.
4) If step 3) is repeated from the first cross to ninth cross, the
position adjustment parameter is written automatically.
5) Confirm the message “Write OK”, and then press “End”
button to exit the calibration tool.
⇒Check for positioning next.
