Sharp PN-K321 Service Manual

CHAPTER 6. DISASSEMBLY AND ASSEMBLY
PN-K321/K322B DISASSEMBLY AND ASSEMBLY 6 – 13

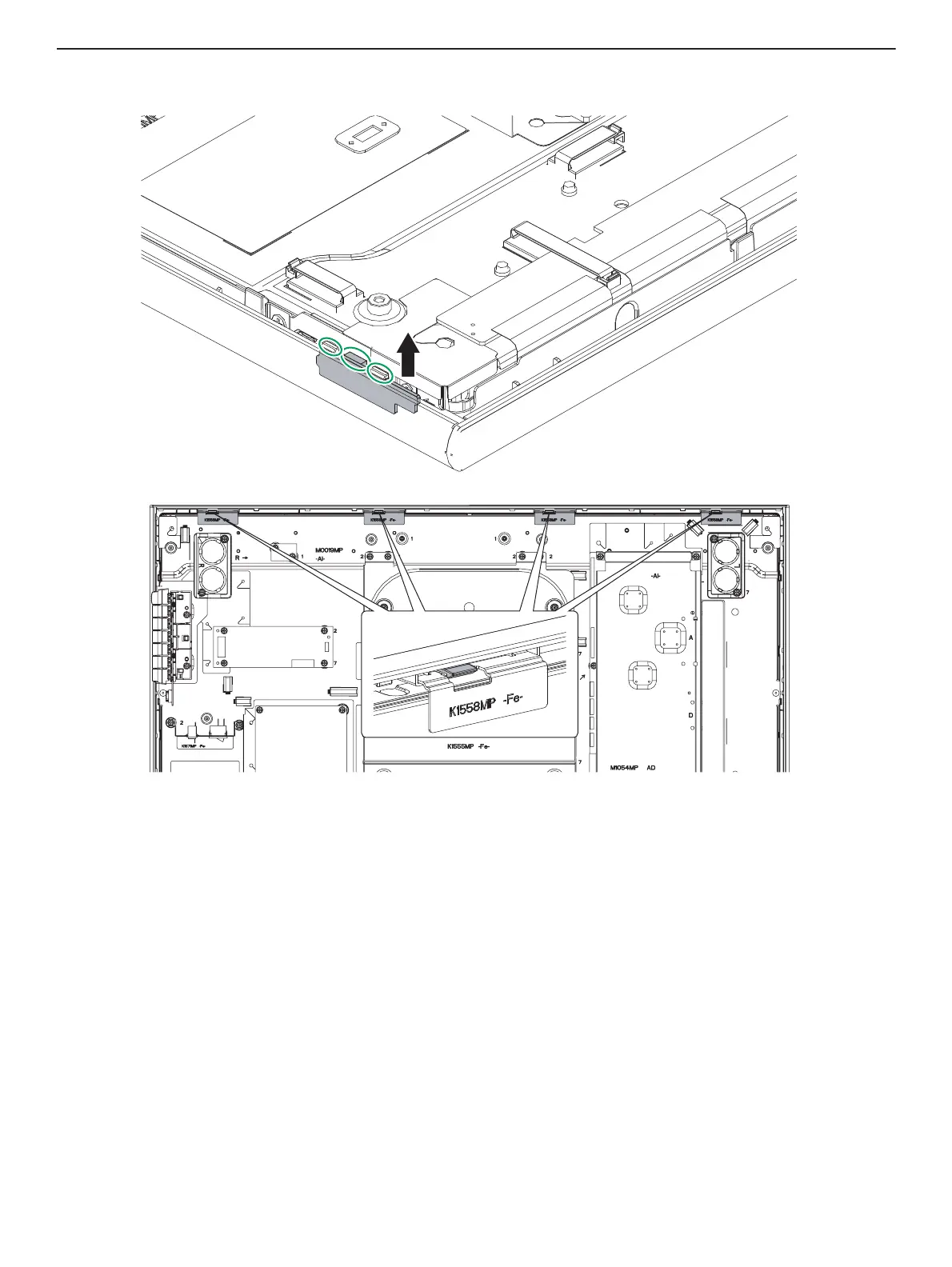

6 ) Remove the 1 place connector of cable, open the with 2 claws of, is pulled out an LED indicator substrate.
7 ) Remove the claw of the panel fixed angle of four places, and remove the panel fixed angle.

Sharp PN-K321 Specifications

General

Brand	Sharp
Model	PN-K321
Category	Monitor
Language	English
