SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. TOP & BOTTOM GRILL MODE SET.
3. COOKING TIME SET.
4. STRAT BUTTON PRESSED.

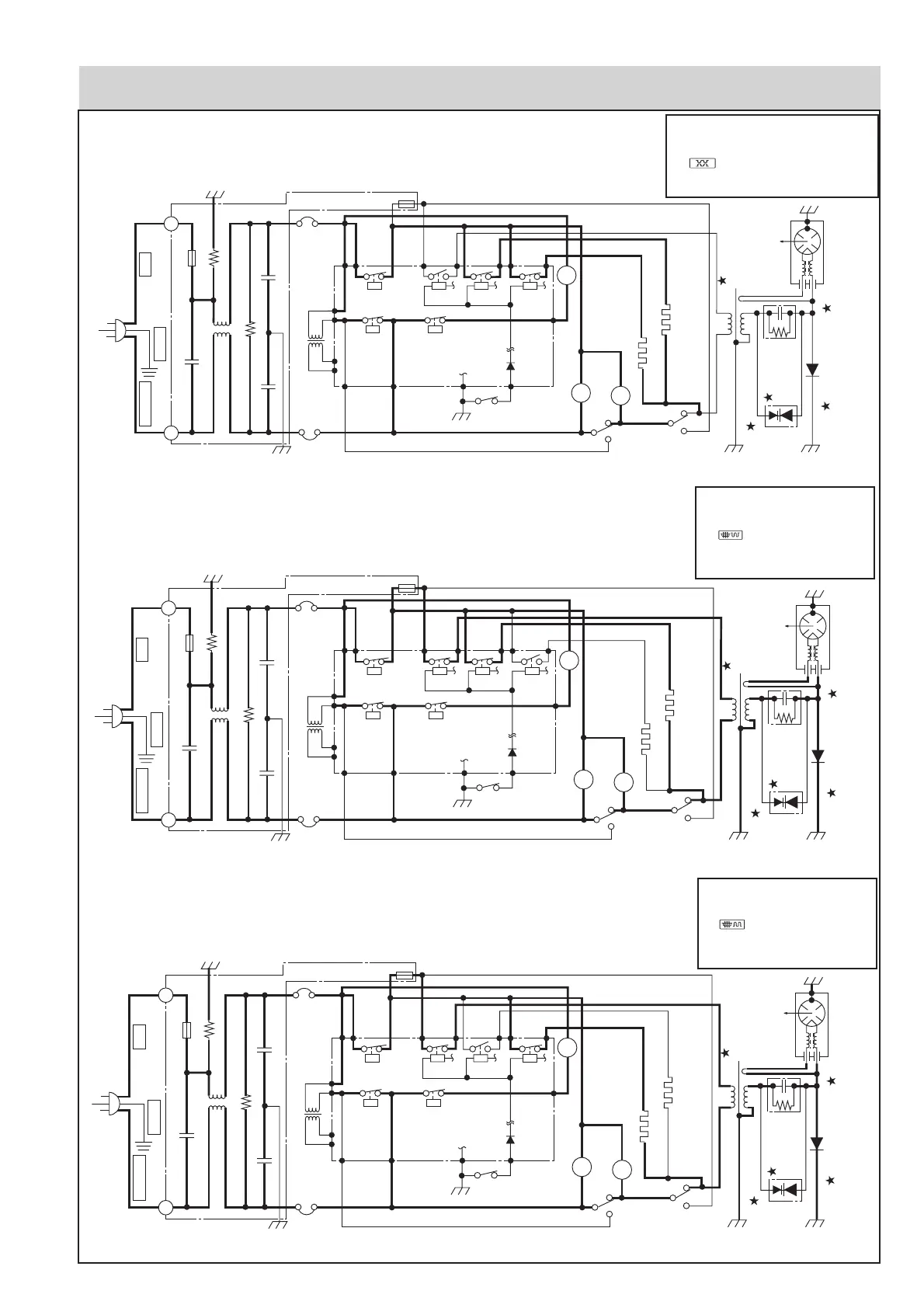

Figure O-3(c) Oven Schematic-Grill cooking Condition (TOP AND BOTTOM GRILL mode)
Figure O-4(b) Oven Schematic-Dual 2 cooking Condition (Microwave and Bottom Grill mode)
Figure O-4(a) Oven Schematic-Dual1 cooking Condition (Microwave and Top Grill mode)
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. DUAL 1 MODE SET.
3. COOKING TIME SET.
4. MICROWAVE POWER LEVEL SET.
5. STRAT BUTTON PRESSED.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. DUAL 2 MODE SET.
3. COOKING TIME SET.
4. MICROWAVE POWER LEVEL SET.
5. STRAT BUTTON PRESSED.
OL
TTM
OVEN LAMP
FAN MOTOR
TURNTABLE MOTOR
GH1: TOP GRILL HEATING ELEMENT
GH2: BOTTOM HEATING ELEMENT
H.V. RECTIFIER
MG: MAGNETRON
T: HIGH VOLTAGE TRANSFORMER
T/C TRANSFORMER
C: CAPACITOR 1.13 µF AC2100V
CONTROL UNIT
A7
RY5
COM. COM. COM.
N.O.
N.O.
COM.
N.O. N.O.
A3
E1 E3
E5 E7
A1
B2
A5
B1
SW2:
STOP SWITCH
SW1: MONITORED LATCH SWITCH
TC1:
MG.
THERMAL
CUT-OUT
TC2:
OVEN
THERMAL
CUT-OUT
4700p/ 250V
4700p/ 250V
10M/ 0.5W
NOISE SUPPRESSION COIL
680 k/ 0.5W
0.22µ/250V
F1: FUSE 20A
F2: FUSE F8A
NOISE FILTER
LN
230V ~ 50Hz
BRN/15BLU/15
G-Y/15
EARTH
LIVENEUTRAL
NC.
ASYMMETRIC
RECTIFIER
RY6
RY1 RY2 RY3 RY4
FM
SW3:
MONITOR
SWITCH
NC.
OL
TTM
OVEN LAMP
FAN MOTOR
TURNTABLE MOTOR
GH1: TOP GRILL HEATING ELEMENT
GH2: BOTTOM HEATING ELEMENT
H.V. RECTIFIER
MG: MAGNETRON
T: HIGH VOLTAGE TRANSFORMER
T/C TRANSFORMER
C: CAPACITOR 1.13 µF AC2100V
CONTROL UNIT
A7
RY5
COM. COM. COM.
N.O.
N.O.
COM.
N.O. N.O.
A3
E1 E3
E5 E7
A1
B2
A5
B1
SW2:
STOP SWITCH
SW1: MONITORED LATCH SWITCH
TC1:
MG.
THERMAL
CUT-OUT
TC2:
OVEN
THERMAL
CUT-OUT
4700p/ 250V
4700p/ 250V
10M/ 0.5W
NOISE SUPPRESSION COIL
680 k/ 0.5W
0.22µ/250V
F1: FUSE 20A
F2: FUSE F8A
NOISE FILTER
LN
230V ~ 50Hz
BRN/15BLU/15
G-Y/15
EARTH
LIVENEUTRAL
NC.
ASYMMETRIC
RECTIFIER
RY6
RY1 RY2 RY3 RY4
FM
SW3:
MONITOR
SWITCH
NC.
OL
TTM
OVEN LAMP
FAN MOTOR
TURNTABLE MOTOR
GH1: TOP GRILL HEATING ELEMENT
GH2: BOTTOM HEATING ELEMENT
H.V. RECTIFIER
MG: MAGNETRON
T: HIGH VOLTAGE TRANSFORMER
T/C TRANSFORMER
C: CAPACITOR 1.13 µF AC2100V
CONTROL UNIT
A7
RY5
COM. COM. COM.
N.O.
N.O.
COM.
N.O. N.O.
A3
E1 E3
E5 E7
A1
B2
A5
B1
SW2:
STOP SWITCH
SW1: MONITORED LATCH SWITCH
TC1:
MG.
THERMAL
CUT-OUT
TC2:
OVEN
THERMAL
CUT-OUT
SW3:
MONITOR
SWITCH
4700p/ 250V
4700p/ 250V
10M/ 0.5W
NOISE SUPPRESSION COIL
680 k/ 0.5W
0.22µ/250V
F1: FUSE 20A
F2: FUSE F8A
NOISE FILTER
LN
230V ~ 50Hz
BRN/15BLU/15
G-Y/15
EARTH
LIVENEUTRAL
NC.
NC.
ASYMMETRIC
RECTIFIER
RY6
RY1 RY2 RY3 RY4
FM
SCHEMATIC DIAGRAM
