PRESSURE BAR BELT (con’t)
3. Perform a visual inspection of the belt. If it is
showing signs of wear, such as cracking or
fraying, it needs to be replaced.
Refer to the Machine Adjustments: Checking
Belt Tension section.
1. Remove the outside frame guard and motor
cover (Figure 3-298 and 3-299).
2. Loosen the four gearbox mounting screws.
3. Remove the idler pulley by loosening the
socket head cap screw indicated in Figure 3-
301

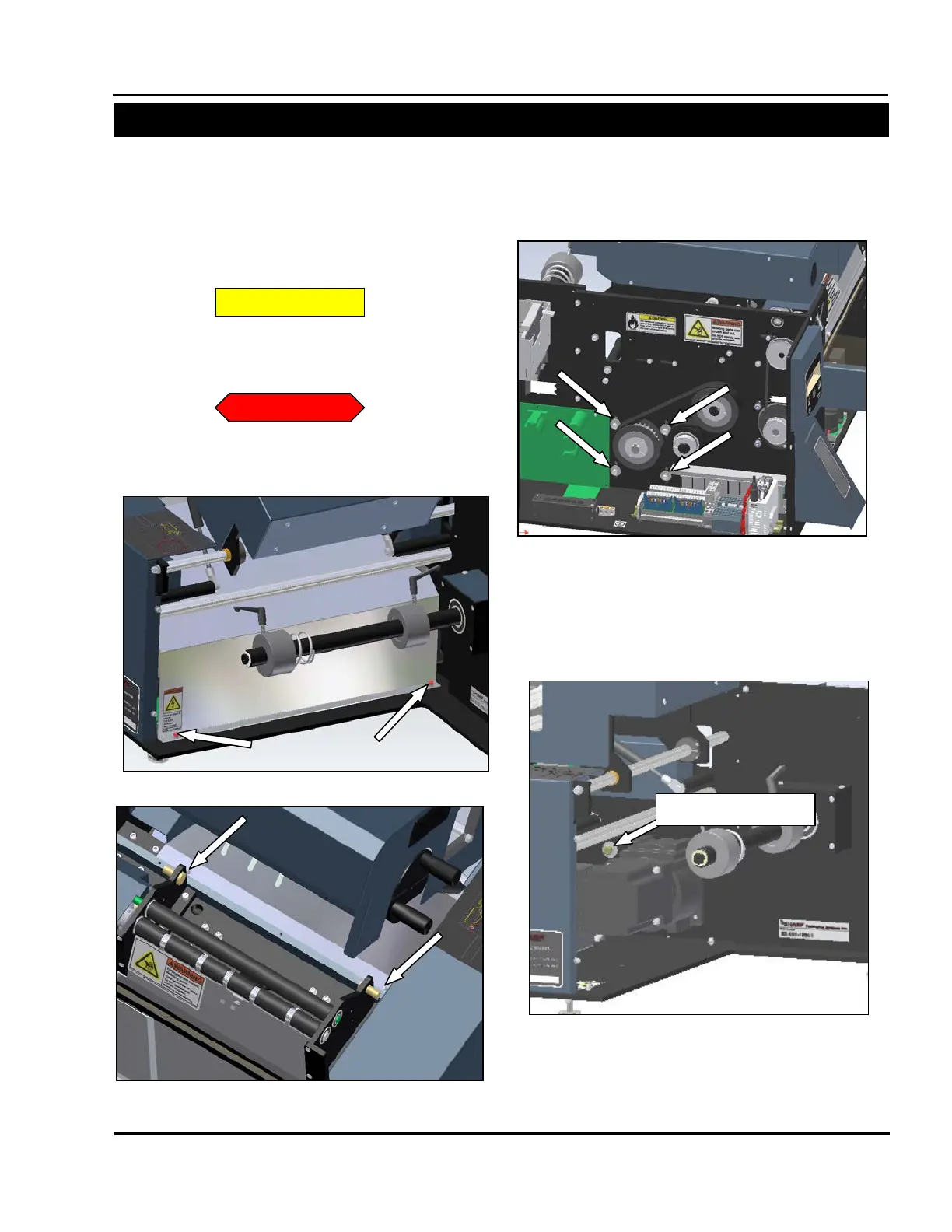

Figure 3-299. Motor Cover Front Screws
Figure 3-298. Motor Cover Rear Screws
Service and Maintenance Manual 3-119 960714-02B © 2007 I2407
SECTION 3 – COMPONENT REPAIR
Figure 3-301. Pressure Bar Belt Idler
Figure 3-300. Gearbox Mounting Screws
