Service and Maintenance Manual 3-121 960714-02B © 2007 I2407
SECTION 3 – COMPONENT REPAIR
LINEAR BEARINGS (con’t)
2. Remove the left and right sealer guide guards
identified in Figure 3-303.
3. Move the pressure jaw to its completely
extended position by pulling it out by hand.
4. Locate the right linear bearing mounting screws
and remove (Figure 3-304). Take the spacer
from the top of the linear bearing, and slide out
of the machine. The linear bearing can now be
slid off the guide rail and out of the machine to
the rear.
5. Install the new linear bearing by sliding on the
end of the guide rail, replacing the spacer, and
reinstalling the four mounting screws.
6. Remove the four mounting screws for the left
linear bearing. Take the spacer from above the
bearing. Slide to the rear of the machine along
the rail to free the linear bearing from the
machine (Figures 3-305 and 3-306).

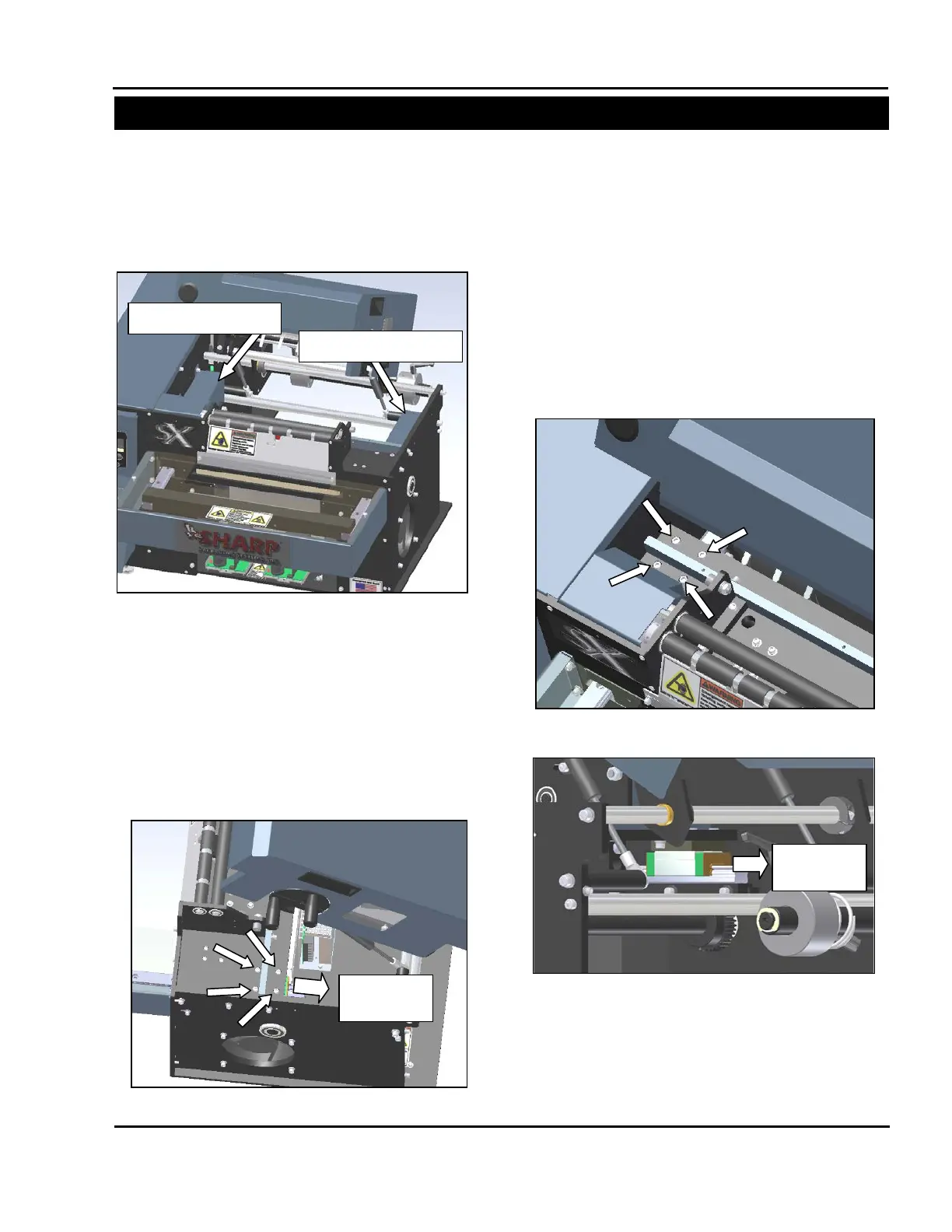

Figure 3-303. Left and Right Sealer Guards
Figure 3-304. Right Linear Bearing
Figure 3-306. Left Linear Bearing Removal
Figure 3-305. Left Linear Bearing Screws
