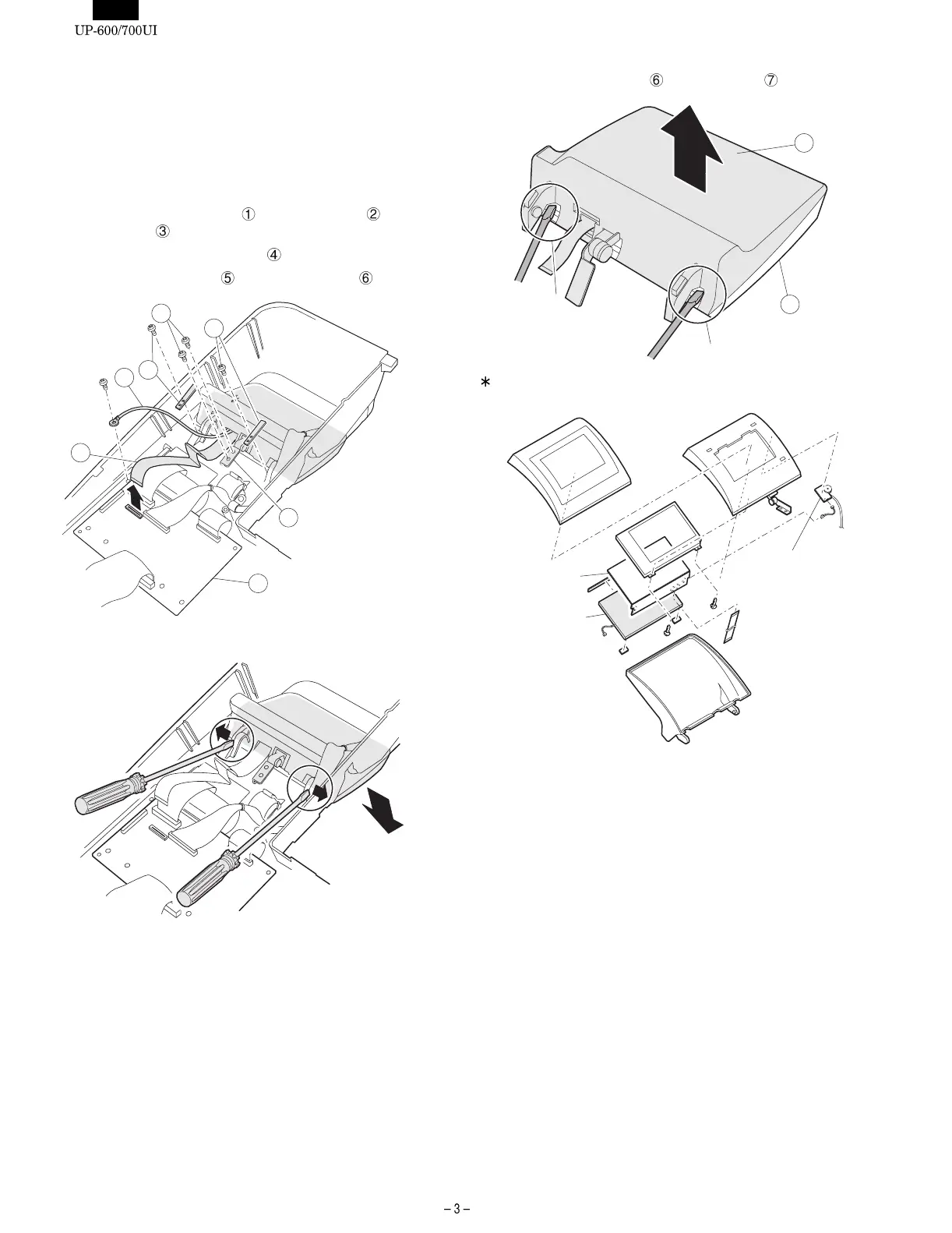

CHAPTER 3.
REMOVING THE LCD UNIT
1. REMOVING THE LCD UNIT
1) Remove the top cabinet from the bottom cabinet.
2) Remove the LCD flat cable
and the earth wire from the
CKDC PWB
.
3) Remove the screw and the plate
.
4) Remove the two screws
from the LCD HINGE .
4) Remove the LCD unit from the top cabinet.
Insert a flat-bladed screwdriver into the right and left mounting
areas and remove.
5) With a flat-bladed screwdriver, remove the two latches of each
of the LCD rear cabinet
and the LCD filer .
Turn of A and B when you remove it.
2. REPLACING THE LCD UNIT
Install the LCD unit in the reverse order of disassembly.
3
1
2
5
6
4
4
6
7
A
B
LCD volume PWB
LCD HS unit
LCD back light
To Next Page
