Sharp UP-600 Installation Manual

CHAPTER 4.
REMOVING THE PRINTER UNIT

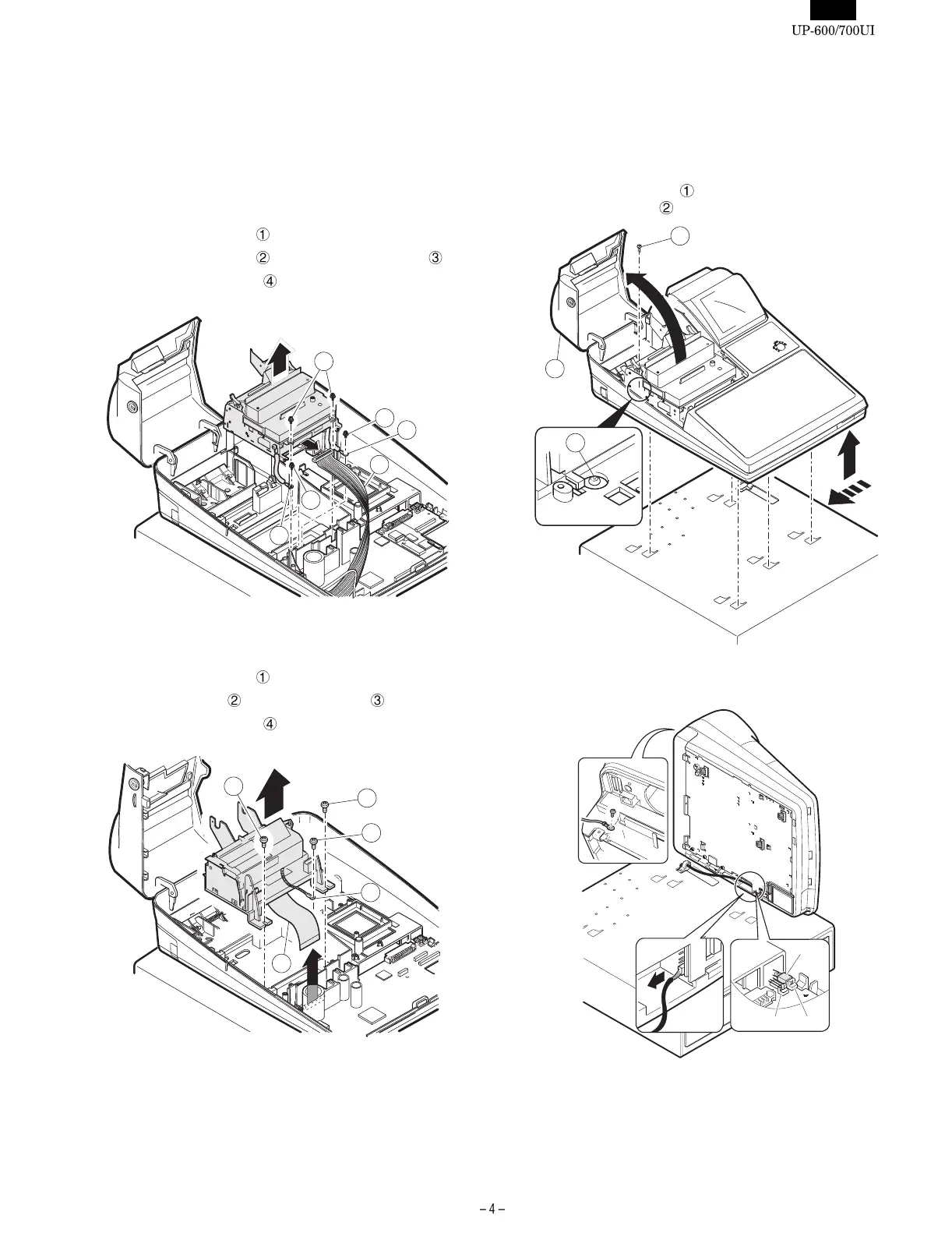

1. REMOVING THE PRINTER UNIT
<UP-600>
1) Remove the top cabinet.
2) Remove the two screws
fixed on the printer unit.
3) Remove the two screws
fixed on the two earth wires .
4) Remove the printer cable
from the MAIN PWB (CN9).
<UP-700>
1) Remove the top cabinet.
2) Remove the two screws
fixed on the printer unit.
3) Remove the screw
fixed on the earth wire .
4) Remove the printer cable
from the MAIN PWB (CN9).
2. REPLACING THE PRINTER UNIT
Install the printer unit in the reverse order of disassembly
CHAPTER 5.
REMOVING THE STANDARD DRAWER
1. REMOVING THE STANDARD DRAWER
1) Open the printer cover .
2) Remove the screw
fixed on the drawer unit.
3) Stand the cabinet sideways as illustrated below, and remove
the drawer connector from the MAIN PWB (CN:5).
1
2
3
4
3
2
4
1
1
2
3
A
B
2
2
1
DRCN2
CN4 CN5
