1. Document Sizes
* With special sizes, only one sheet can be fed into the machine at a
time. Insert next page into feeder as current page is being scanned.
2. Paper Thickness & Weight
3. Document Types
• Normal paper
Documents handwritten in pencil (No. 2 lead or softer), fountain pen,
ball-point pen, or felt-tipped pen can be transmitted.
Documents of normal contrast duplicated by a copying machine can
also be transmitted.
• Diazo copy (blue print)
Diazo copy documents of a normal contrast may be transmitted.
• Carbon copy
A carbon copy may be transmitted if its contrast is normal.
4. Cautions on Transmitting Documents
• Documents written in yellow, greenish yellow, or light blue ink cannot
be transmitted.
• Ink, glue, and correcting fluid on documents must be dry before the
documents can be transmitted.
• All clips, staples and pins must be removed from documents be-fore
transmission.
• Patched (taped) documents should be copied first on a copier and
then the copies used for transmission.
• All documents should be fanned before insertion into the feeder to
prevent possible double feeds.

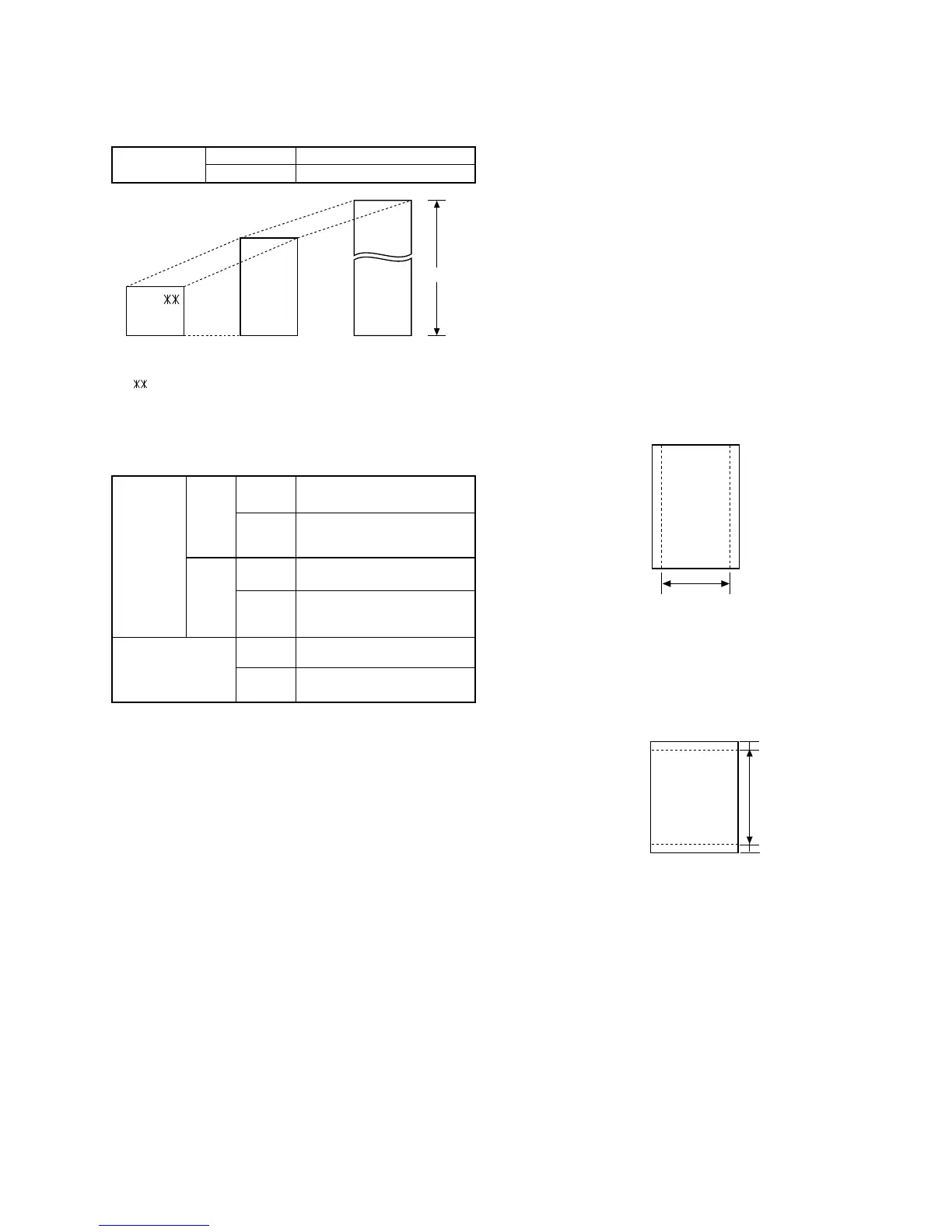

Normal size
width 5.8" – 8.5"(148 – 216 mm)
length 5.5" – 11"(140 – 279 mm)
5. Automatic Document Feeder Capacity
Number of pages that can be placed into the feeder at anytime is as
follows:
Normal size: max. ADF 20 sheets (14 lbs – 20 lbs)
Special size: single sheet only (manual feed)
NOTES:
• When you need to send or copy more pages than the feeder
limit, place additional pages in feeder when last page in
feeder is being scanned.
• Place additional pages carefully and gently in feeder.
If force is used, double-feeding or a document jam may
result.
6. Readable Width & Length
The readable width and length of a document are slightly smaller than
the actual document size.
Note that characters or graphics outside the effective document scan-
ning range will not be read.
• Readable width
210 mm, max.
• Readable length
This is the length of the document sent minus 0.16" (4 mm) from the top
and bottom edges.
Normal size
ADF 10
sheets
2.4 x 10
–3
–4.7 x 10
–3
inch
(0.06–0.12 mm)
Thickness
Weight
0.15 x 10
–3
lbs/inch
2
(52–104g/m
2
)
(14–28lbs)
ADF 20
sheets
Thickness
2.4 x 10
–3
–3.5 x 10
–3
inch
(0.06–0.09 mm)
Weight
0.77 x 10
–3
–0.11 x 10
–3
lbs/inch
2
(52–74.3g/m
2
)
(14–20lbs)
Special size
Thickness
4.7 x 10
–3
–7.9 x 10
–3
inch
(0.12–0.20 mm)
0.15 x 10
–3
–0.20 x 10
–3
lbs/inch
2
(52–157 g/m
2
)
Weight
Use document carrier sheet for smaller documents.
Readable width
To Next Page
