Sharp UX-P115 User Manual

UX-P115U
4
[2] Top cover/Sub frame
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION

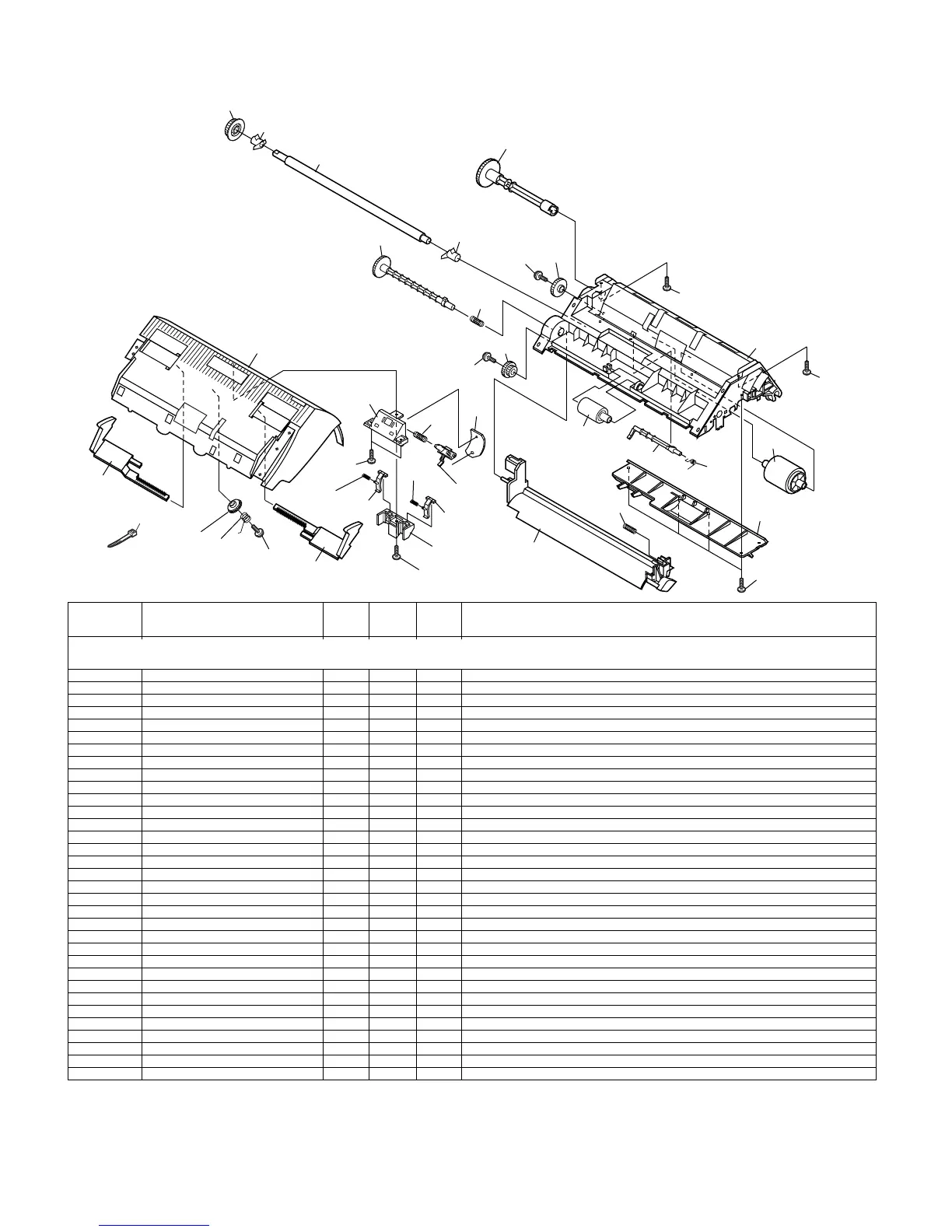

[2] Top cover/Sub frame
1 GCOVA2448XHVA AX C Top cover
2 MSPRC3301XHZZ AB C Hopper spring
3 NGERP2318XHZZ AD C Pinion gear
4 PGIDM2619XHVA AG C Hopper guide,left
5 PGIDM2620XHVA AG C Hopper guide,right
6 LFRM-2227XHZZ AQ C Sub frame
7 LFRM-2232XHZZ AT C Sub frame plate
8 MLEVP2363XHZZ AD C P-IN sensor lever,upper
9 MSPRC3305XHZZ AB C Release lever spring
10 MSPRD3302XHZZ AB C P-IN sensor lever spring,upper
11 NGERH2580XHZZ AC C Reduction gear,15/22Z
12 NGERH2581XHZZ AC C Idler gear,25Z
13 NROLR2483XHZZ AL C Paper feed roller
14 NROLR2504XHZZ AL C PU roller
15 NSFTP2357XHZZ AG C Paper feed roller shaft
16 NSFTP2374XHZZ AG C PU roller shaft
17 PGIDM2621XHSA AF C Release lever
18 LHLDZ2224XHZZ AL C RP feed plate holder
19 LPLTG3181XHZZ AD C RP separate rubber
20 LPLTP3179XHZZ AD C RP separate base
21 LPLTP3180XHZZ AH C RP separate plate
22 LPLTP3182XHZZ AH C RP feed plate
23 MSPRC3299XHZZ AB C RP separate spring
24 MSPRC3300XHZZ AB C RP feed spring
25 LBSHP2148XHZA AE C Platen bearing,left
26 LBSHP2149XHZA AE C Platen bearing,right
27 NGERH2579XHZA AE C Platen gear
28 NROLR2485XHZZ AQ C Platen roller
29 LBNDJ2006XHZZ AA C Band
30 MSPRC3335XHZZ AD C Paper feed roller spring
B1 LX-BZ2234XHZZ AD C Screw
B2 XEBSD30P10000 AA C Screw(3x10)
B3 LX-BZ2222XHZZ AC C Screw
27
25
28
26
15
30
20
23
19
21
24
24
22
22
18
11
1
4
3
2
5
29
13
17
8
9
10
12
16
14
6
7
B2
B3
B2
B1
B1
B2
B2
B2
