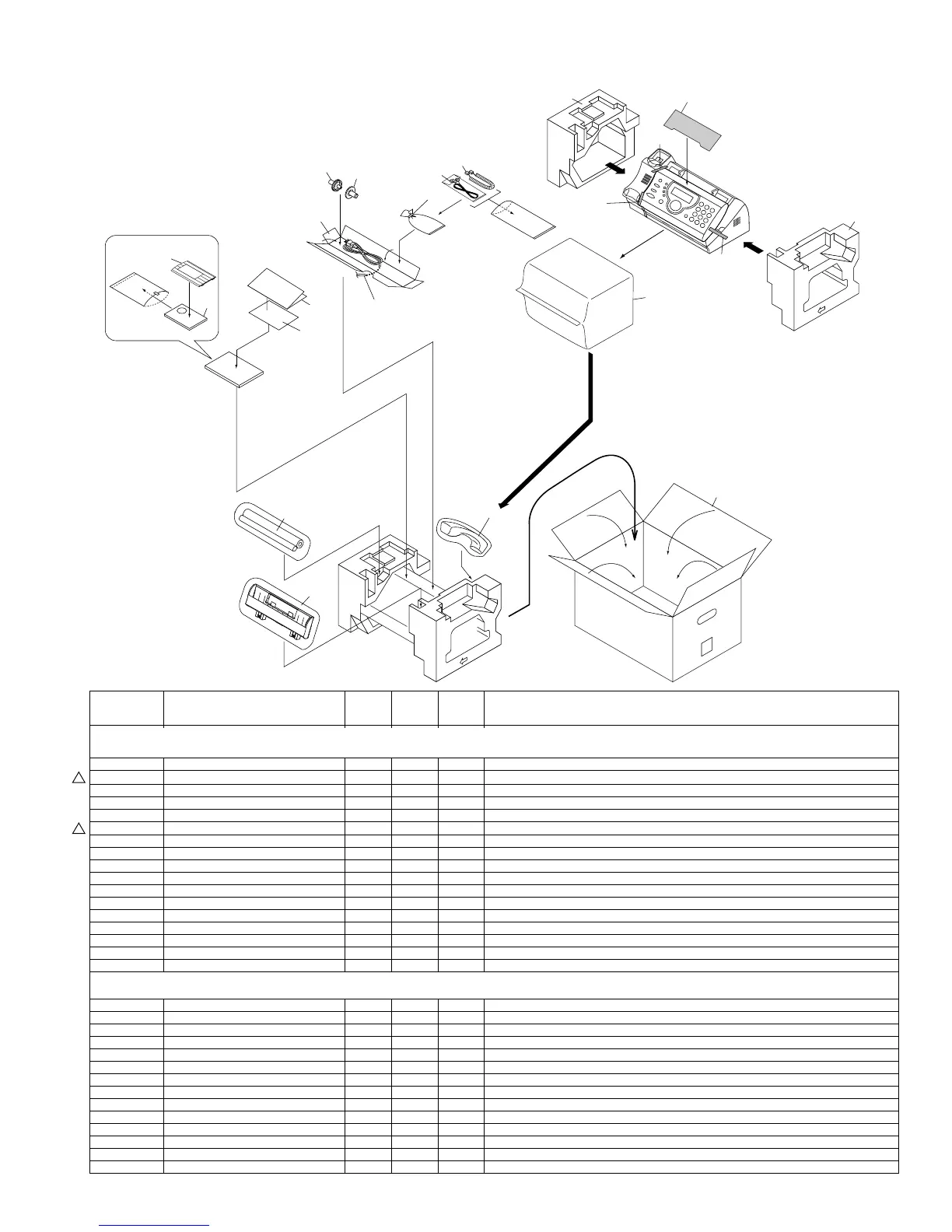

[5] Packing material & Accessories
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[5] Packing material & Accessories
1 DUNTK497CXHFW AY E Handset
!
2 QCNWG209BXHOW AH C Handset cord
3 CPLTP3222XHR2 AQ C Paper tray extension ass'y
4 NGERH2568XHZZ AB C Imaging film gear
5 PRBNN2038SC10 AL S Imaging film(Initial starter film 10m)
!
6 QCNWG370BXHZZ AL C Telephone line cord
11 TINSE4463XHTZ BC N D Operation manual
12 TCADZ3745XHZZ AL N D Pop card
14 SPAKA465CXHZZ AF D Packing add.,left
15 SPAKA466CXHZZ AF D Packing add.,right
16 SPAKA467CXHZZ AD D Packing add.,accessories
17 CPAKC271GXH01 AV N D Packing case with label
18 SPAKP329DXHZZ AF D Vinyl cover
20 CPLTP3183XHRF AV C Paper tray ass'y
21 CGERH2566XH01 AG C Imaging film gear ass'y
23 TCADZ2891XHZZ AF D Registration card
24 TCADZ3744XHZZ AL N D Setup guide
[6] Control PWB unit
1 UBATL2049SCZZ AF B Battery(CR2032T23) [BAT1]
2 VCEAGA0JW227M AD C Capacitor(6.3WV 220µ F) [C1]
3 VCEAGA1EW476M AA C Capacitor(25WV 47µ F) [C2]
4 VCEAGA0JW227M AD C Capacitor(6.3WV 220µ F) [C3]
5 VCEAGA1HW106M AA C Capacitor(50WV 10µ F) [C4]
6 VCEAGA1HW106M AA C Capacitor(50WV 10µ F) [C5]
7 VCEAGA1EW476M AA C Capacitor(25WV 47µ F) [C6]
8 VCEAGA1HW106M AA C Capacitor(50WV 10µ F) [C8]
9 VCEAGA1HW106M AA C Capacitor(50WV 10µ F) [C9]
10 VCEAGA1HW226M AB C Capacitor(50WV 22µ F) [C10]
11 VCKYCY1HB102K AA C Capacitor(50WV 1000PF) [C104]
12 VCKYCY1HB102K AA C Capacitor(50WV 1000PF) [C105]
13 VCCCCY1HH101J AA C Capacitor(50WV 100PF) [C107]
14 VCCCCY1HH101J AA C Capacitor(50WV 100PF) [C108]
R
R
3
11
23
24
16
4
5
20
1
21
6
2
18
12
14
15
17
TAPE
AC CORD
TAPE
TAPE
TAPE
(1)
(3)
(4)
(2)
