Sheeran Looper + - Connection Diagram

4

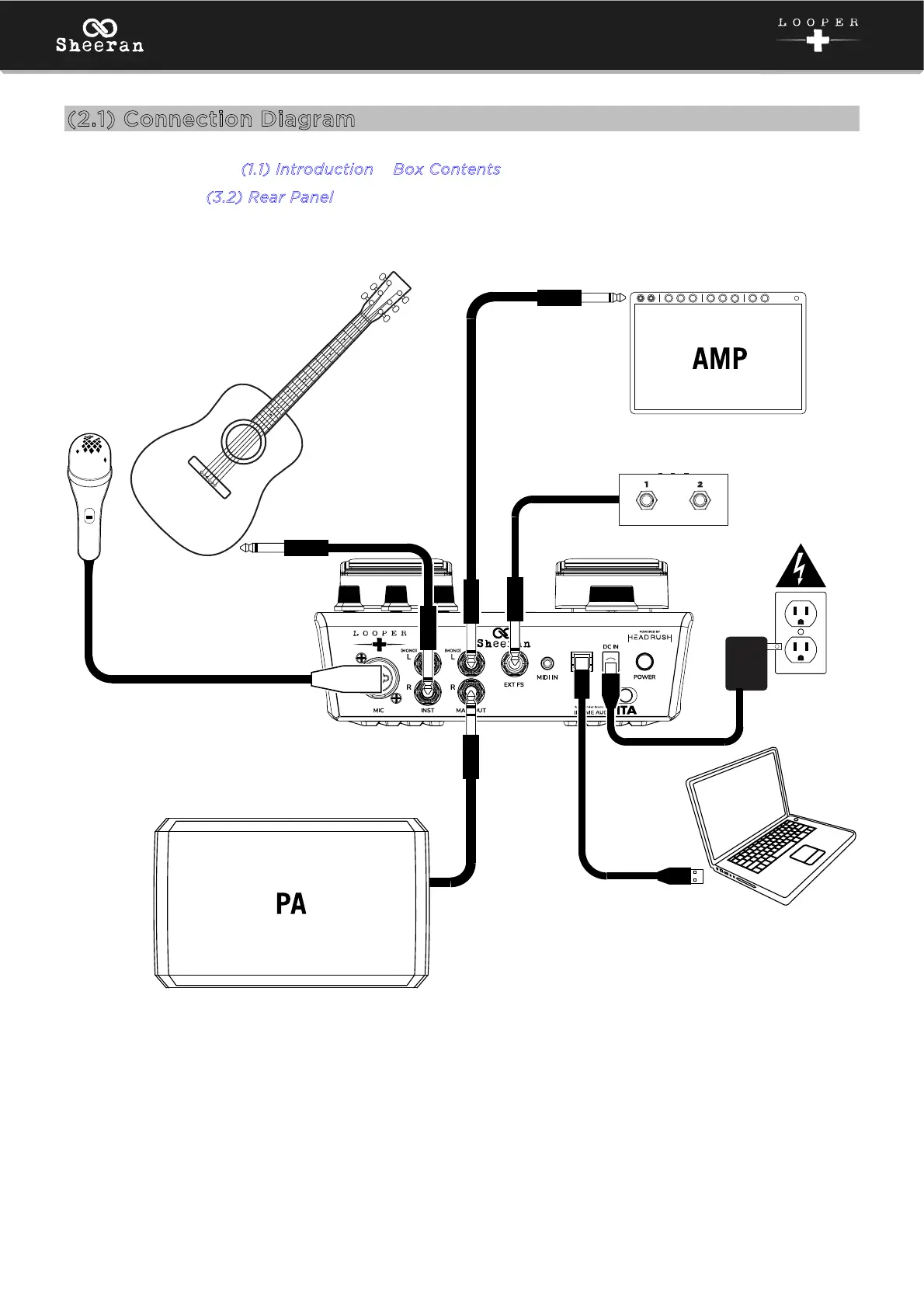

(2.1) Connection Diagram
Items not listed under (
1.1) Introduction > Box Contents are sold separately.
See the following (
3.2) Rear Panel section for more information on each connection.
Guitar
Guitar
amplifier
PA Speaker
Computer
(optional)
Power
adapter
(optional)
Microphone
External
Footswitch
