Throttle -PAS Enable/Disable
HF represents the "throttle-PAS" setting.
HF-y means throttle speed is limited by current assist level while HF-n means throttle
speed is not limited by current pedal assist level. The default value is "n".
If you choose "y", the maximum speed can only be the highest speed powered by current
pedal assist level when you twist the throttle.
If you choose "n", the maximum speed is not limited by current pedal assist level and you
can override whatever pedal assist level you are at and reach rated maximum speed
when you twist the throttle.

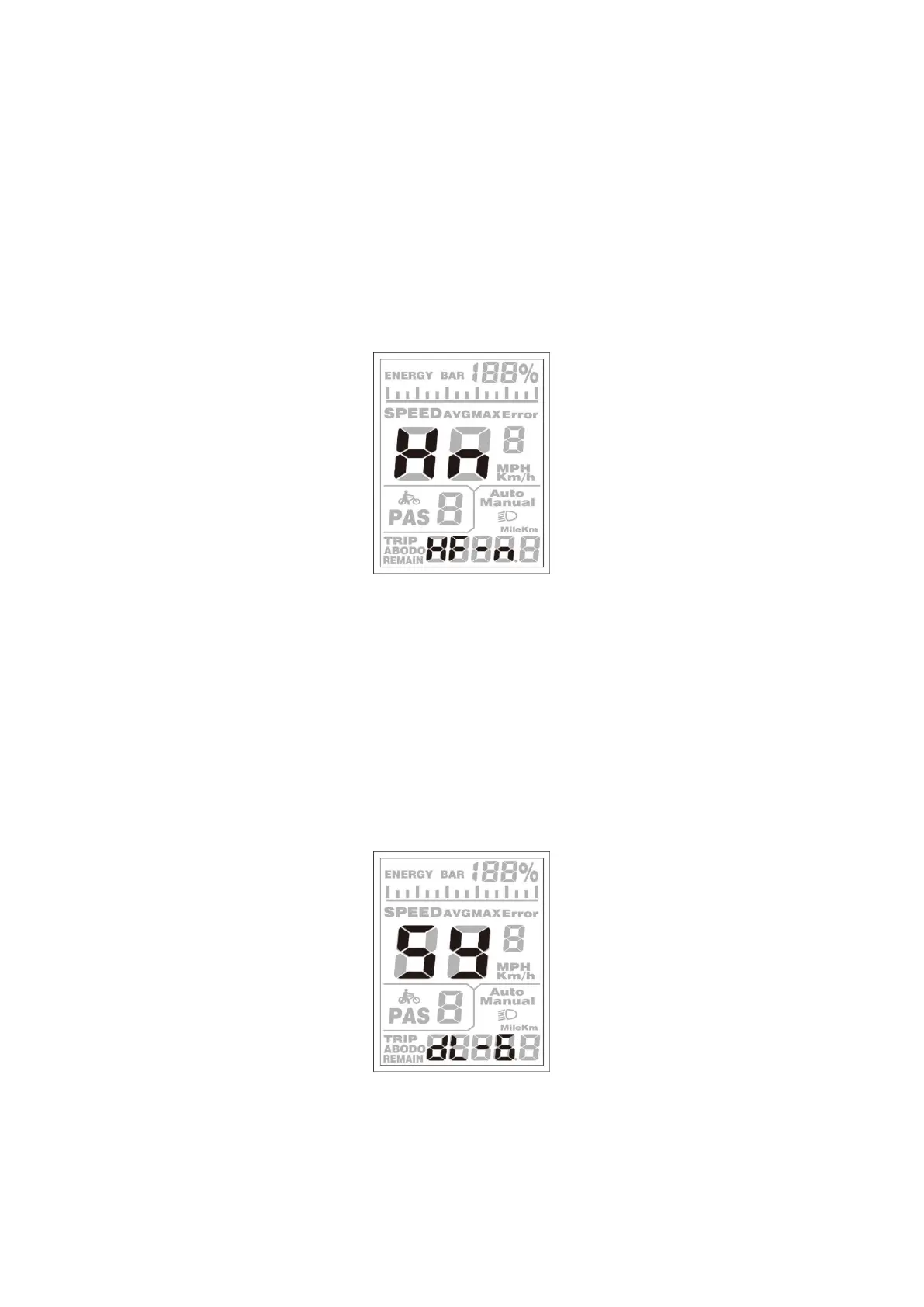

Throttle Level Enable or Disable Interface
System Settings (optional)
◆Delay Time Settings of Battery Power
DL represents the delay time of battery power settings. The default value is 3 s.
To change delay time settings, press the [UP] or the [DOWN] button to select delay time 3 s, 6 s,
and 12s.
To store a changed setting, press the [MODE] button and then access the max speed limit.
Delay Time of Battery Power Interface
