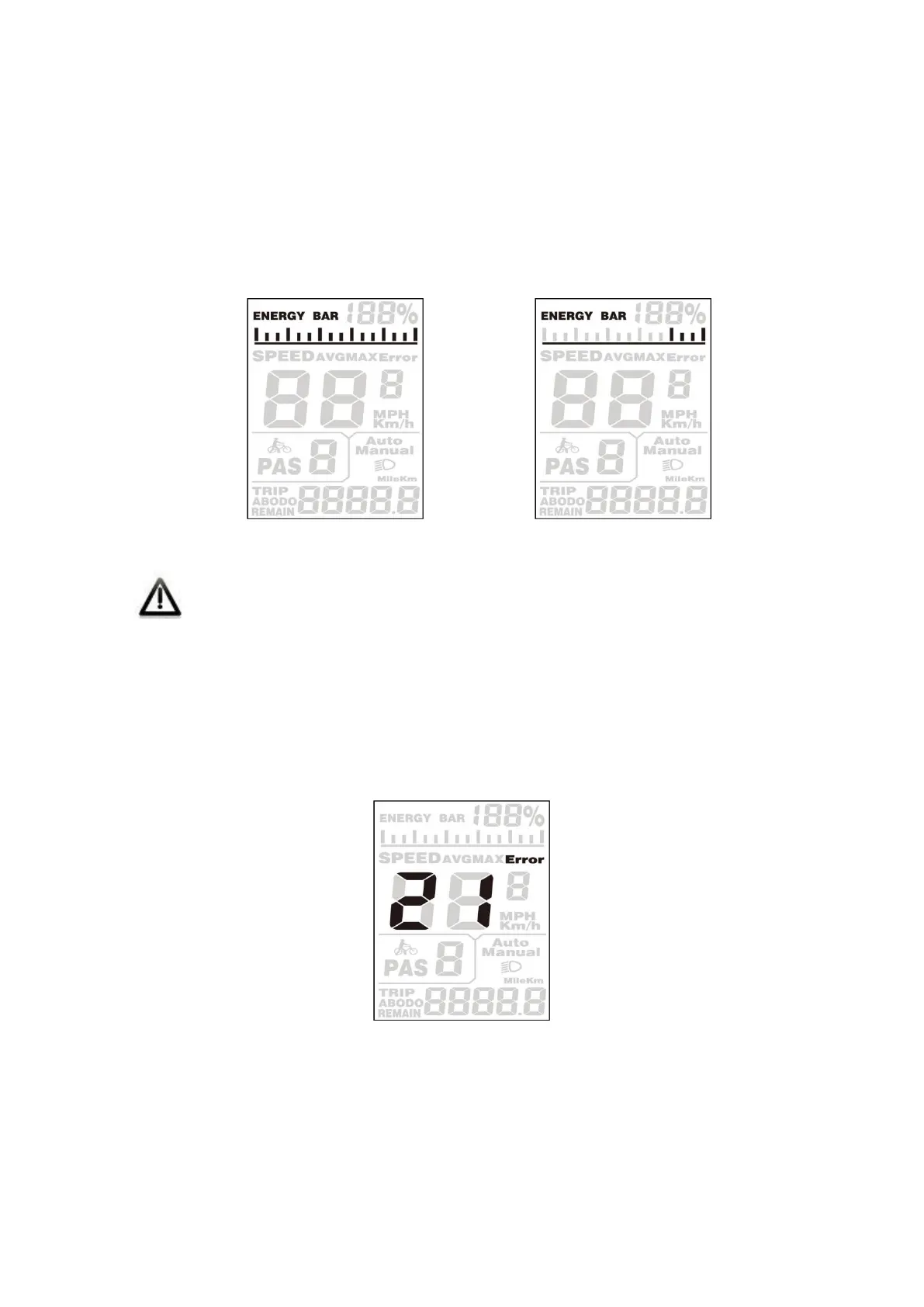

◆Battery indicator
There are 5 long battery bars from left to right, representing the capacity of the battery. Each
grid symbol of the battery pack has 2 short battery bars equivalent to approximately 20%
capacity. When the battery is low, the battery box will blink at 1 Hz to indicate that the battery
needs to be charged immediately.
When the battery power is displayed as shown on the right, it means that the battery is
under voltage, please charge it in time!
◆Error Code Indication
The components of the E-bike system are continuously and automatically monitored.
When an error is detected, the respective error code is indicated in the text indication area.
Here is the detailed message of the error code in Attached list 1.
Error Code Indication
■Make the display repaired when an error code appears. Or else you can not ride the bike.
