CompositeVideoDevices

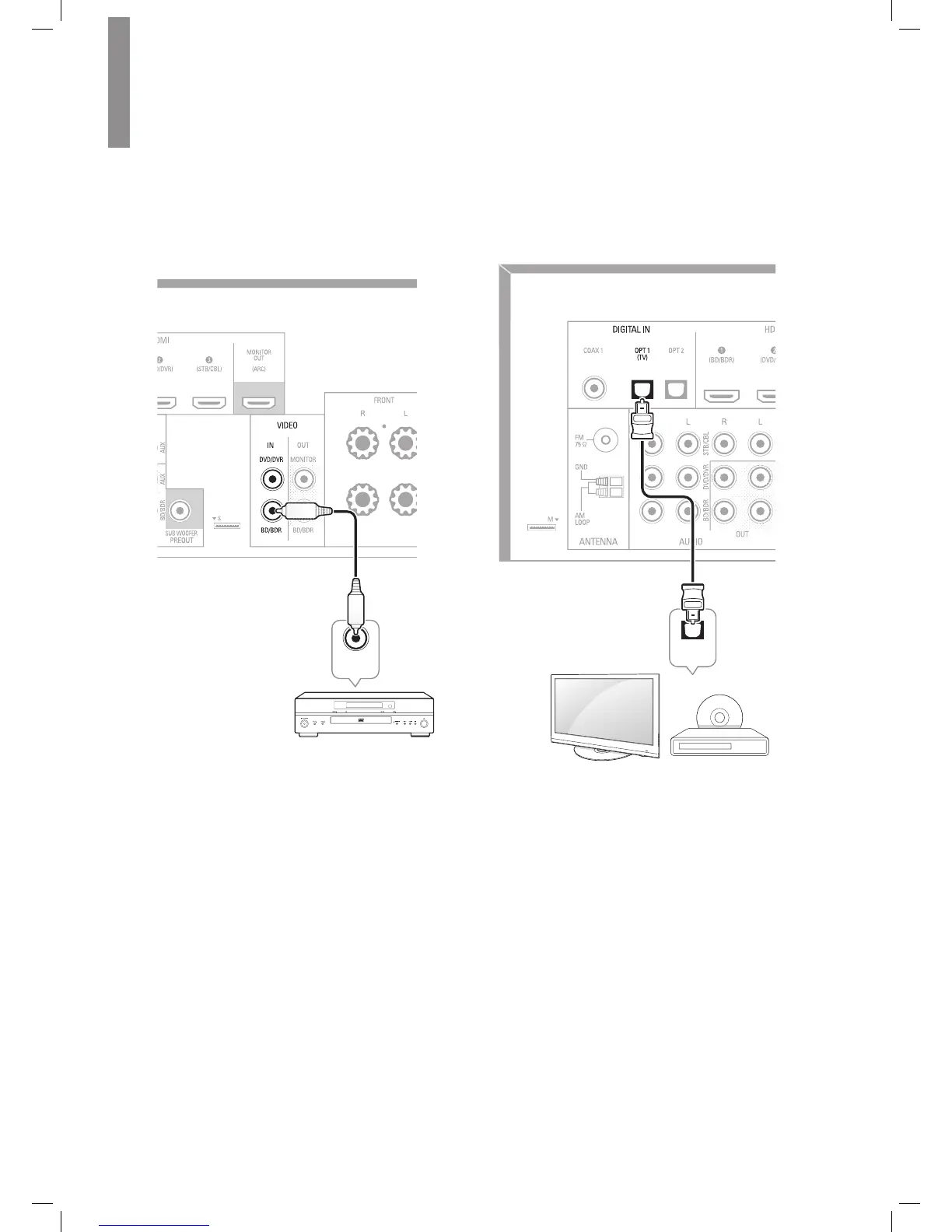

You will need to make composite video connections
from your source devices that do not have HDMI video
connections. You will also need to make an audio
connection from the device to the AVR.
Composite
VIDEO OUT
Rear Panel
Composite Video Cable
(not supplied)
Composite Video-Equipped
Source Device
Optical Digital Audio Devices
If your source devices have optical digital outputs,
connect them to the AVR’s optical digital audio
connectors.
OPTICAL
OUT
Rear Panel
TV, DVD Player, etc.
