R-607/R-507AUDIO/VIDEORECEIVER
Connect Your TV or Video
Display

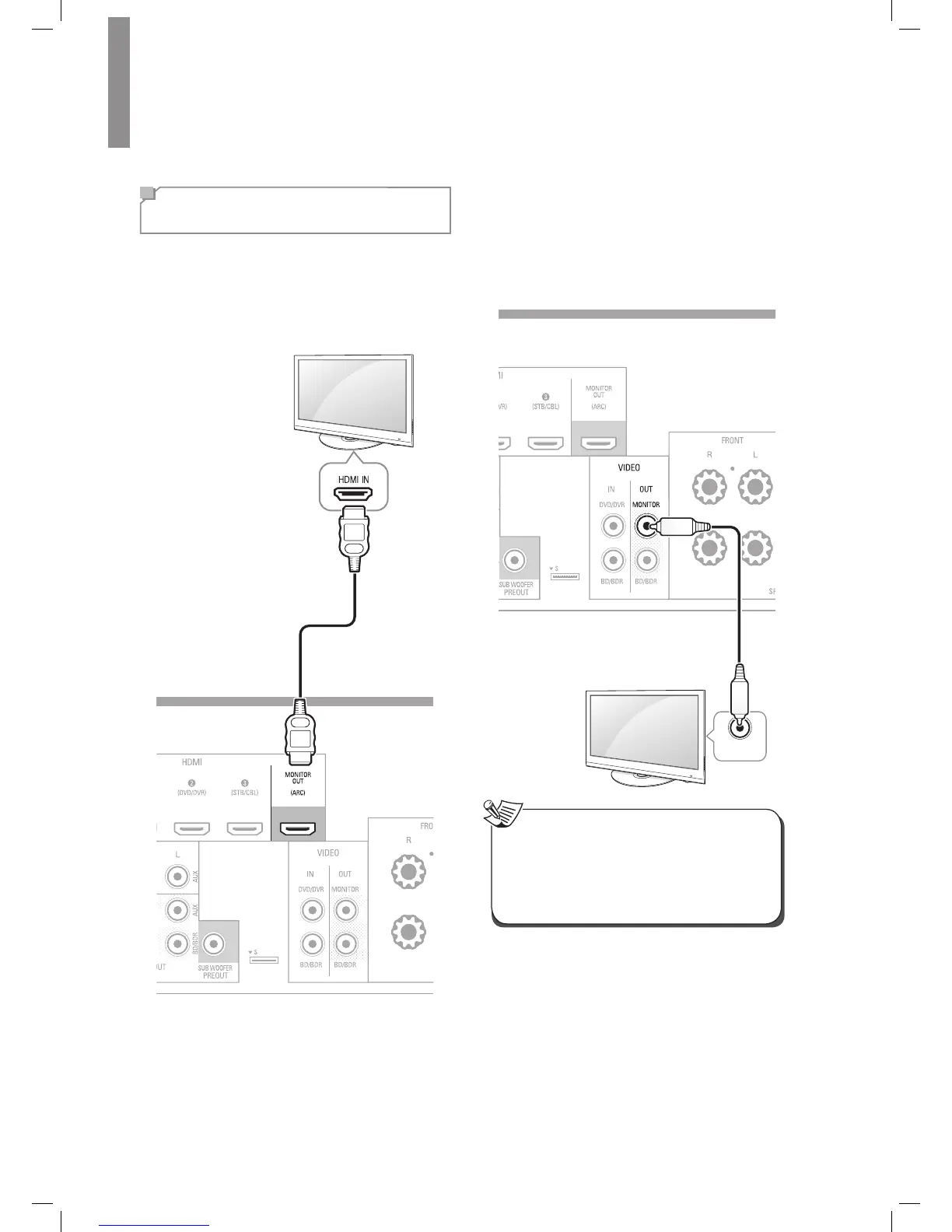

HDMI Monitor Out Connector
If your TV has an HDMI connector and you have HDMI
video source devices, use an HDMI cable (not supplied)
to connect your TV to the AVR’s HDMI Monitor Out
connector.
It will provide the best possible picture quality.
Rear Panel
CompositeVideoMonitorOutConnector
If your TV does not have an HDMI connector, or if
your TV does have an HDMI connector
but you are
connecting some source devices with only composite
video connectors
, use a composite video cable (not
included) to connect the AVR's Composite Monitor Out
connector to your TV’s composite video connector.
Composite
VIDEO IN
Rear Panel
Composite Video Cable
(not supplied)
TV
•
The AVR’s on-screen display (OSD) only appears
through the Composite Monitor Out connector. If
you want to use the AVR’s OSD menus you need
to connect its Composite Monitor Out connector
to your TV even if you are not connecting any
composite video source devices to the AVR.
Note
