Sherwood R-607 - Connect the Tuner Antennas; Connect to AC Power; Install the Batteries in the Remote Control

13
Connections
English

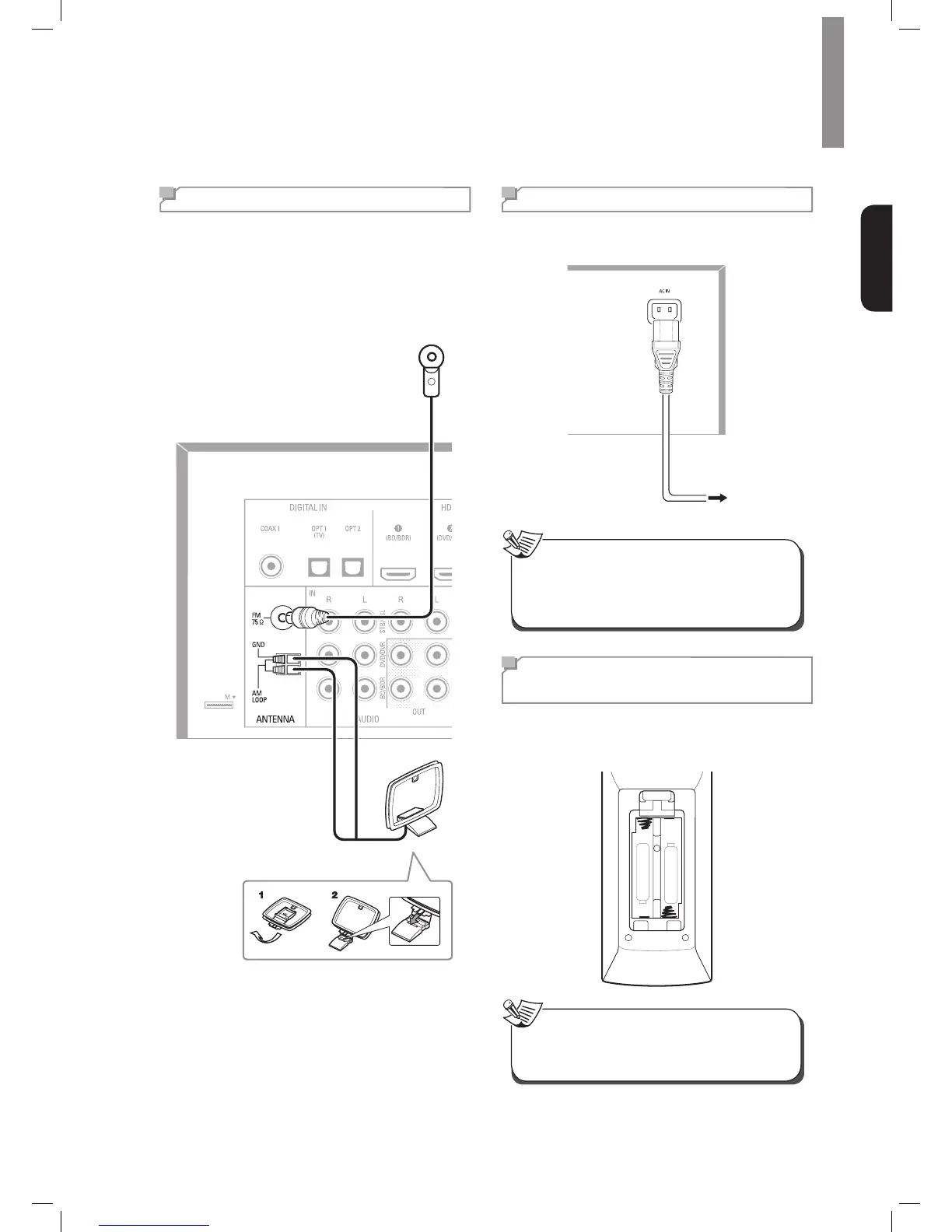

Connect the Tuner Antennas
•
Connect the supplied FM antenna to the AVR’s FM
75Ω antenna connector. For the best reception,
extend the FM antenna as far as possible.
•
Bend and fold the base of the supplied AM antenna
as shown and connect the antenna wires to the
AVR’s AM and Gnd connectors. Rotate the antenna
as necessary to minimize background noise.
Rear Panel
AM Loop Antenna
Connect to AC Power
Connect the AC power cord to the AVR’s AC Input
connector and then to a working AC power outlet.
AC power cord
To the wall outlet
Rear Panel
•
Before connecting the AC power cord, make
sure that the AC voltage listed on the AVR’s
back panel matches the AC voltage used in your
country.
Note
Install the Batteries in the
Remote Control
Remove the remote control’s battery cover, insert the
two supplied AAA batteries as shown in the illustration,
and replace the battery cover.
•
Remove the protective plastic from the AVR’s
front panel to keep it from reducing the remote
control’s effectiveness.
Note
