SPECIFICATION & STRUCTURE
24

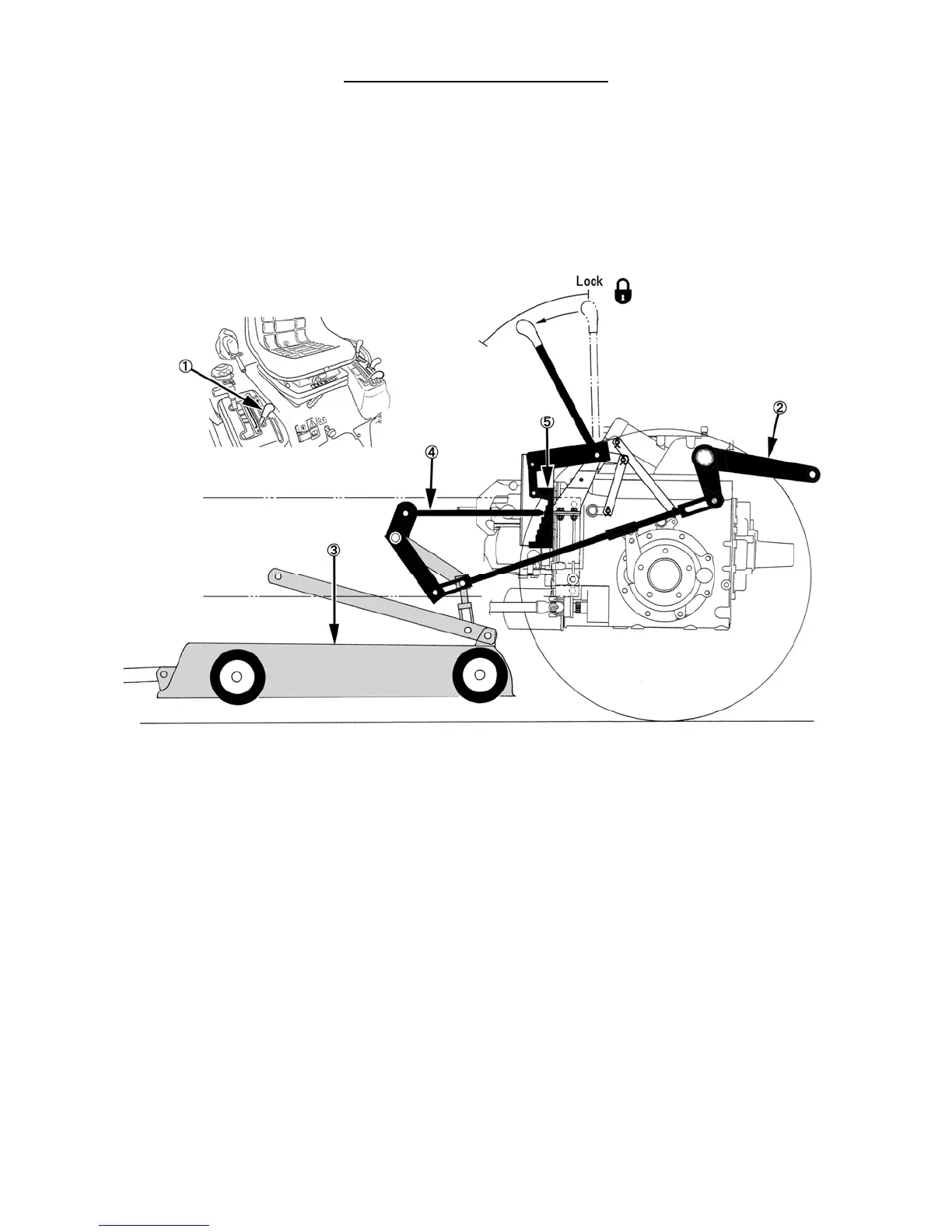

When the hydraulic control lever, 1, is lowered, and the oil in the HPL cylinder returns to reservoir, the lift arm, 2,
rotates to the 'lowered' position, and the mower deck, 3, descends until the stop rod, 4, bottoms against the stop plate, 5,
in its preset position.
